Запчасти Case IH 600-SERIES (064) - RADIATOR (02) - ENGINE

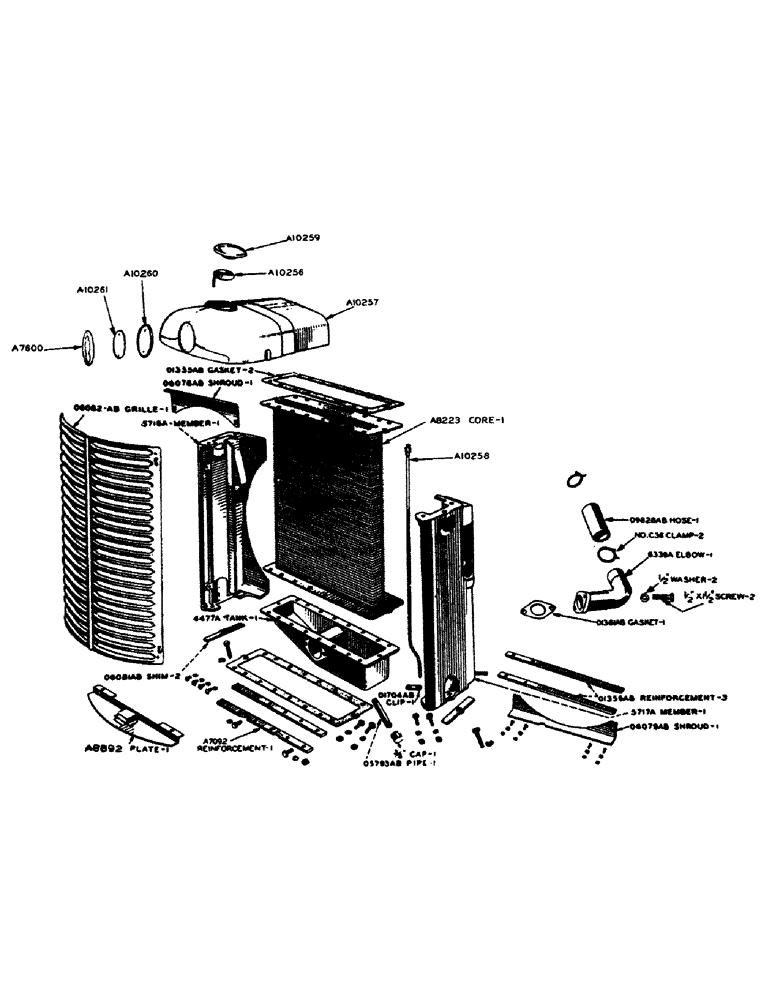

Схема запчастей Case IH 600-SERIES - (064) - RADIATOR (02) - ENGINE

Артикул

Название

Примечание

Количество

A7092

SPARE PART

REINFORCEMENT - radiator header, front bottom (See O1356AB)

1шт.

3/8" X 1" N.C. HEX. HD. CAP SCREW

2шт.

A7600

EMBLEM CASE/IH

MEDALLION - grille cap

1шт.

#6 - 32 x 3/4" Parker Kalon type "F" Phillips recessed head screw (Zinc plated)

2шт.

A8223

CORE

- radiator

1шт.

A8892

PLATE - radiator baffle

1шт.

A10251

TANK - radiator top (Use A10257)

1шт.

A10256

NECK - radiator filler

1шт.

A10257

TANK - radiator top, with filler neck assembly

1шт.

A10258

TUBE - radiator overflow, long

1шт.

IMPERIAL BRASS CONNECTOR #68FL (5/16" tube size x 1/4" P.T.)

1шт.

A10259

CAP

- radiator

1шт.

A10260

CUP - medallion mounting

1шт.

A10261

GASKET - medallion heat baffle

1шт.

4477A

TANK - radiator, lower

1шт.

3/8" X 1-1/8" N.C. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

9шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

5шт.

3/8" PIPE CAP

1шт.

5716A

MEMBER - radiator side, R.H.

1шт.

3/8" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

1/2" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

3шт.

5717A

MEMBER - radiator side, L.H.

1шт.

3/8" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

1/2" X 1-3/4" N.C. HEX HD. CAP SCREW W/LOCKWASHER

3шт.

6339A

ELBOW - radiator to water pump

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O1355AB

GASKET

- radiator header

2шт.

O1356AB

REINFORCEMENT - radiator header, front and rear top and rear bottom (See A7092)

3шт.

3/8" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

12шт.

O1361AB

GASKET

- radiator outlet elbow

1шт.

O1704AB

CLIP - radiator overflow tube

1шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O5793AB

PIPE - radiator drain (3/8" x 4")

1шт.

O6078AB

SHROUD - radiator, upper

1шт.

1/4" X 5/8" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O6079AB

SHROUD - radiator, lower

2шт.

1/4" X 5/8" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O6081AB

SHIM - radiator

2шт.

O6082AB

GRILLE - radiator

1шт.

1/4" X 3/4" N.C. RD. HD. MACH. SCREW W/LOCKWASHER

4шт.

O9828AB

X

HOSE - radiator to water pump

1шт.

NO. C-36 CORBIN HOSE CLAMP (For 2-5/8" O dia. hose)

2шт.

Выбрано товаров: 44
