Запчасти Case IH 600-SERIES (048) - LP-GAS ENGINE, PARTS FOR A9729 ENSIGN CARBURETOR, 1-1/2" MODEL KGL- THEIR NO. 3721 (02) - ENGINE

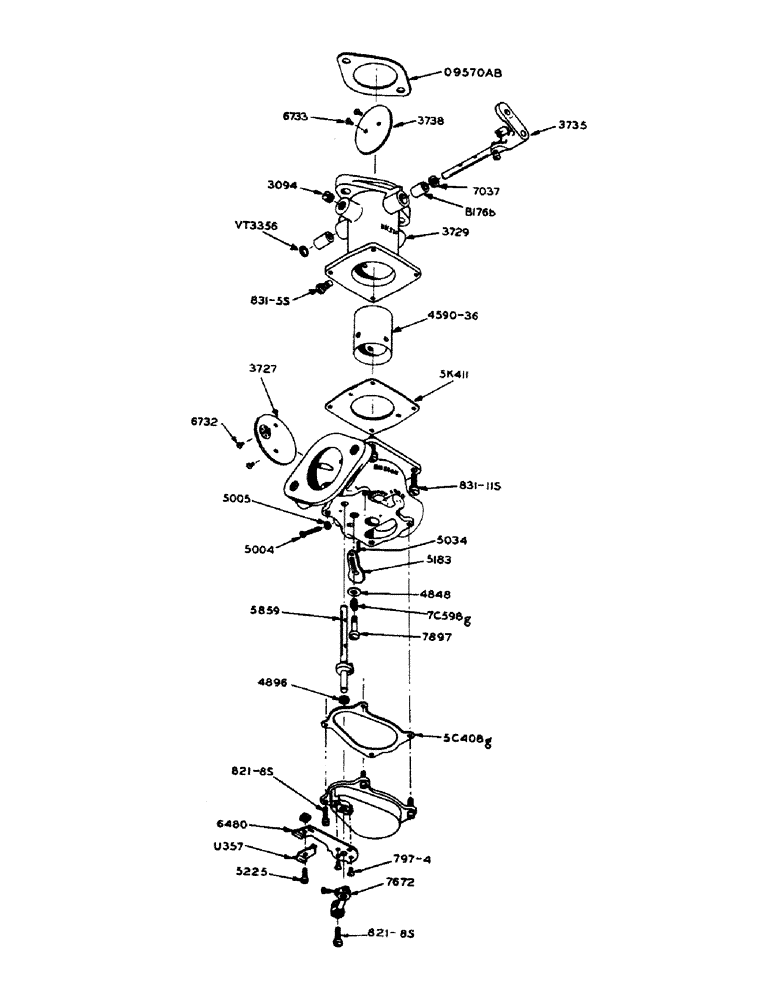

Схема запчастей Case IH 600-SERIES - (048) - LP-GAS ENGINE, PARTS FOR A9729 ENSIGN CARBURETOR, 1-1/2" MODEL KGL- THEIR NO. 3721 (02) - ENGINE

Артикул

Название

Примечание

Количество

2-70

KEY

SCREW - throttle stop adjusting

2шт.

Part of repair kit P/N 3885

1шт.

B176B

BUSHING - throttle bearing

2шт.

5B210

SET SCREW - "B" throttle shaft and choke lever

2шт.

Part of repair kit P/N 3885

1шт.

A215

LOCKWASHER - air horn and venturi screws

5шт.

225F

LOCKWASHER - cover plate screw

4шт.

305

3/16" WELCH PLUG

2шт.

5C356G

PLATE - cover

1шт.

U357

CLAMP - choke tube

1шт.

5C406G

GASKET - cover plate

1шт.

Part of repair kit P/N 3885

1шт.

5K411

GASKET - air horn

1шт.

Part of repair kit P/N 3885

1шт.

7C598G

SPRING - pressure

1шт.

797-4

SCREW - choke tube support

2шт.

Part of repair kit P/N 3885

1шт.

821-8S

SCREW - cover plate and swivel

5шт.

Part of repair kit P/N 3885

1шт.

831-5S

SET SCREW - venturi

1шт.

831-11S

SCREW - air horn

4шт.

Part of repair kit P/N 3885

1шт.

3094

1/8" PIPE PLUG

1шт.

3723

PLUG

AIR HORN - partial assembly

1шт.

3727

VALVE

DISC - choke

1шт.

Part of repair kit P/N 3885

1шт.

3729

THROTTLE TUBE - partial assembly

1шт.

3735

THROTTLE SHAFT AND STOP ASSEMBLY

1шт.

Part of repair kit P/N 3885

1шт.

3738

WASHER

DISC - throttle

1шт.

3885

JACK

KIT - repair, Includes: P/N's 2-70, 5B210, 5C406G, 5K411, 797-4, 821-8S, 831-11S, 3727, 3735, 4896, 5004, 5005, 5034, 5859, 6732, 6733, 7037 and 09570AB

1шт.

4510

SWITCH

NUT - fuel adjusting screw

1шт.

4590-36

VENTURI

1шт.

4848

THREADED TIE-ROD

WASHER - spring retaining

1шт.

4896

PIN

WASHER - felt dust. for choke

1шт.

Part of repair kit P/N 3885

1шт.

5004

COVER

SCREW - starting adjusting

1шт.

Part of repair kit P/N 3885

1шт.

5005

LOCKNUT - starting adjusting screw

1шт.

Part of repair kit P/N 3885

1шт.

5034

SPRING - latching

1шт.

Part of repair kit P/N 3885

1шт.

5183

LEVER - valve

1шт.

5220

HANDBOOK

SCREW - fuel adjusting, w/locknut

1шт.

5225

SPEAKER

SCREW AND NUT FOR CHOKE TUBE CLAMP

1шт.

5859

CHOKE SHAFT AND CAM LEVER ASSEMBLY

1шт.

Part of repair kit P/N 3885

1шт.

6480

CHOKE TUBE SUPPORT ASSEMBLY

1шт.

6732

SCREW - choke shaft

2шт.

Part of repair kit P/N 3885

1шт.

6733

SCREW - throttle shaft

2шт.

Part of repair kit P/N 3885

1шт.

7037

TESTER

WASHER - dust

2шт.

Part of repair kit P/N 3885

1шт.

7672

KIT

CHOKE LEVER ASSEMBLY

1шт.

7897

STUD

SCREW - valve lever pivot

1шт.

O9570AB

X

GASKET - carburetor to inlet manifold

1шт.

Part of repair kit P/N 3885

1шт.

VT3356

1/2" WELCH PLUG

1шт.

Выбрано товаров: 59
