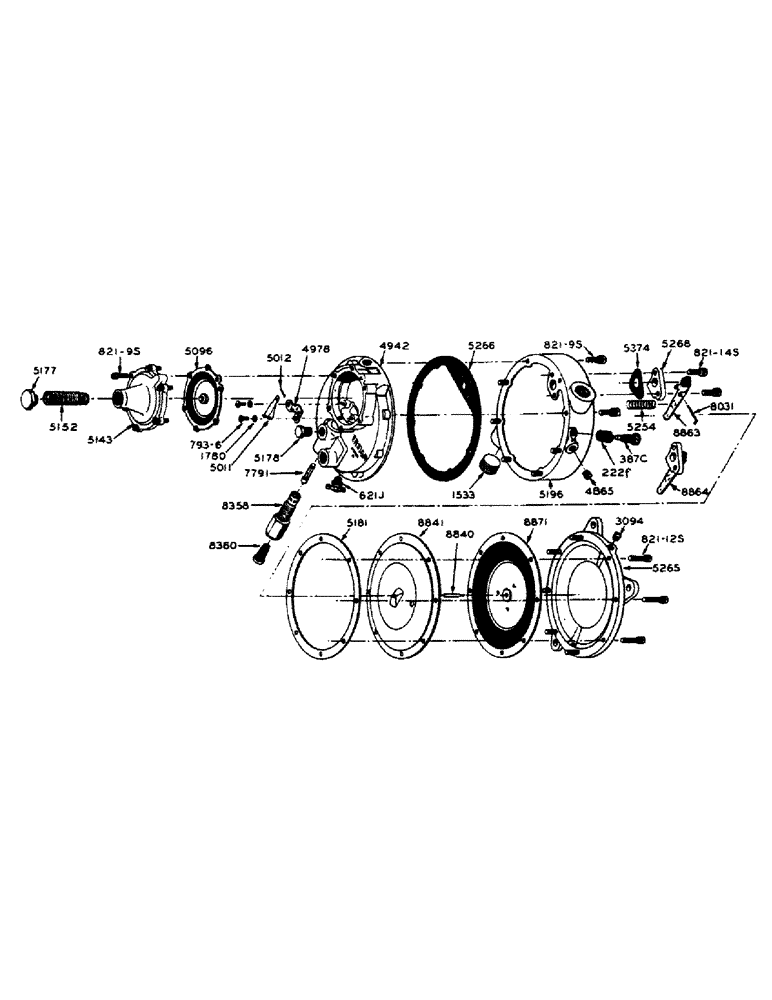

Запчасти Case IH 600-SERIES (047) - LP-GAS ENGINE, PARTS FOR 4001AA LP GAS REGULATOR (02) - ENGINE
№
Артикул
Название
Примечание
Количество
4B65
BLEED SCREW
1шт.
222F
RETAINER - idle adjusting screw
1шт.
Included in 2159 Service Parts Kit.
1шт.
387C
SCREW - idle adjusting
1шт.
B50025
X
DRAIN COCK
1шт.
793-6
SCREWS FOR 4978 PIVOT SUPPORT
2шт.
821-9S
SCREW (7 used for 5196 body and 6 used for 5143 cover)
13шт.
Included in 2159 Service Parts Kit.
1шт.
821-12S
SCREW - for 5265 support plate
8шт.
Included in 2159 Service Parts Kit.
1шт.
821-14S
SCREW FOR 8864 MAIN VALVE
2шт.
Included in 2159 Service Parts Kit.
1шт.
221-1845
DRAIN PLUG,Hex Soc, 3/4"-14, NPTF
COUNTER SUNK PLUG, 3/4"
1шт.
1780
LAMP
LOCKWASHER - for 793-6 pivot support screws
2шт.
2519
KIT - service parts, for 4001AA regulator (See note)
1шт.
3094
PIPE PLUG - 1/8"
1шт.
4942
VAPORIZER BODY
1шт.
4978
GUARD
PIVOT SUPPORT
1шт.
5011
VALVE LEVER
1шт.
5012
PIVOT FOR VALVE LEVER
1шт.
5096
JACK
DIAPHRAGM ASSEMBLY - pressure regulator
1шт.
Included in 2159 Service Parts Kit.
1шт.
5143
KIT
COVER FOR PRESSURE REGULATOR
1шт.
5152
GEAR
SPRING - pressure regulator
1шт.
5177
RETAINER - pressure regulator spring
1шт.
5178
PIPE PLUG - 1/4"
1шт.
5181
BOLT,V, 3/4" - 10 x 4", Gr 8
GASKET - partition plate
1шт.
Included in 2159 Service Parts Kit.
1шт.
5196
BODY - fuel regulator
1шт.
5254
BOLT
SPRING - fuel regulator
1шт.
Included in 2159 Service Parts Kit.
1шт.
5265
SPINDLE
SUPPORT PLATE
1шт.
5266
HYDRAULIC HOSE
GASKET FOR VAPORIZER BODY
1шт.
Included in 2159 Service Parts Kit.
1шт.
5268
RETAINER
VALVE SEAT
1шт.
5374
GASKET - for main valve
1шт.
Included in 2159 Service Parts Kit.
1шт.
7791
NEEDLE VALVE
1шт.
Included in 2159 Service Parts Kit.
1шт.
8031
RIGID TUBE
PIVOT PIN
1шт.
8358
FUEL INLET - valve seat and strainer assembly
1шт.
8360
FUEL INLET - strainer assembly
1шт.
Included in 2159 Service Parts Kit.
1шт.
8840
PUSH PIN
1шт.
8841
SPINDLE
PARTITION PLATE
1шт.
8863
VALVE LEVER
1шт.
8864
MAIN VALVE ASSEMBLY
1шт.
Included in 2159 Service Parts Kit.
1шт.
8871
TUBE
FUEL REGULATOR DIAPHRAGM ASSEMBLY
1шт.
Included in 2159 Service Parts Kit.
1шт.
Выбрано товаров: 50
