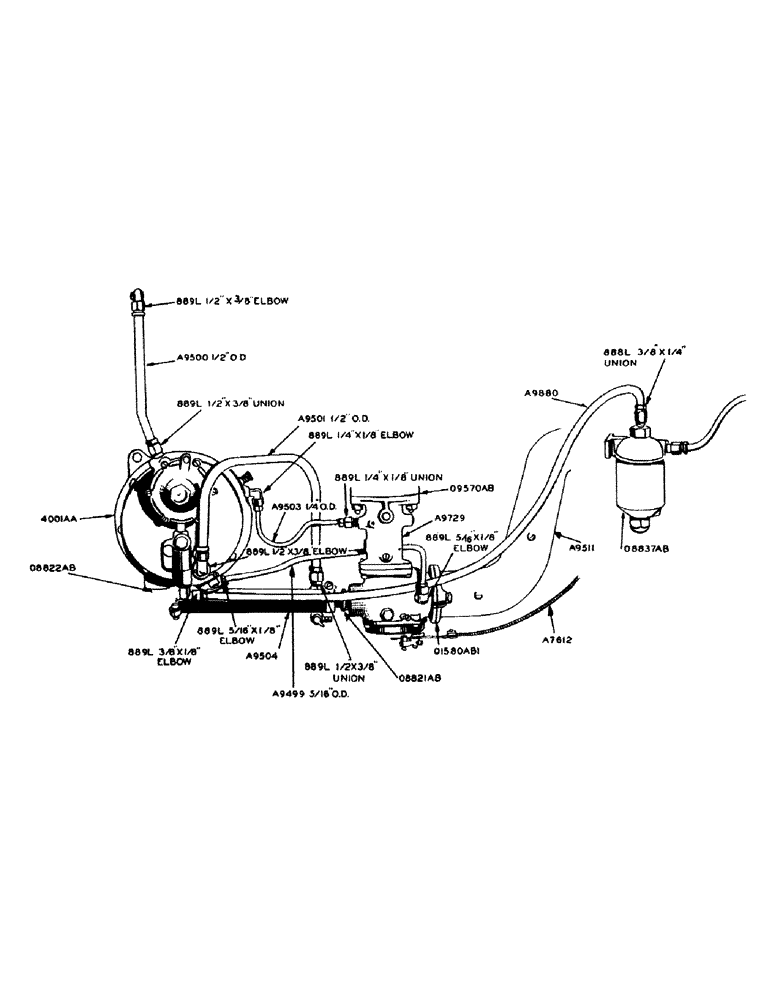

Запчасти Case IH 600-SERIES (044) - LP-GAS ENGINE, LIQUID FILTER, REGULATOR AND CARBURETOR, LIQUID FILTER (02) - ENGINE

A9880

TUBE -, Serial Range: filter-regulator

1шт.

#889L 3/8" TUBE SIZE X 1/4" P.T. IMPERIAL HI-DUTY ELBOW

1шт.

#889L 3/8" TUBE SIZE X 1/4" P.T. IMPERIAL HI-DUTY HALF UNION

1шт.

O7677AB

LOOM - filter to regulator tube

1шт.

O8837AB

FILTER - liquid (Ensign no. 6257)

1шт.

5/16" X 7/8" N.C. HEX. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

#889L 3/8" TUBE SIZE X 1/4" P.T. IMPERIAL HI-DUTY ELBOW

1шт.

A9496

PLATE - regulator mounting

1шт.

3/8" X 7/8" N.C. HEX. BOLT W/LOCKWASHER, regulator

2шт.

A9497

BRACE - regulator

1шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER, regulator

1шт.

A9499

TUBE - regulator balance, Serial Range: connector-carburetor

1шт.

#889L 5/16" TUBE SIZE X 1/8" P.T. IMPERIAL HI-DUTY ELBOW, regulator

1шт.

A9500

HOUSING

TUBE - regulator water inlet to water manifold

1шт.

#889L 1/2" TUBE SIZE X 3/8" P.T. IMPERIAL HI-DUTY ELBOW, regulator

1шт.

#889L 1/2" TUBE SIZE X 3/8" P.T. IMPERIAL HI-DUTY HALF UNION, regulator

1шт.

A9501

HOUSING

TUBE -, Serial Range: regulator-block

1шт.

#889L 1/2" TUBE SIZE X 3/8" P.T. IMPERIAL HI-DUTY ELBOW, regulator

1шт.

#889L 1/2" TUBE SIZE X 3/8" P.T. IMPERIAL HI-DUTY HALF UNION, regulator

1шт.

A9503

TUBE - regulator idle, Serial Range: connection-carburetor

1шт.

#889L 1/4" TUBE SIZE X 3/8" P.T. IMPERIAL HI-DUTY ELBOW, regulator

1шт.

#889L 1/4" TUBE SIZE X 1/8" P.T. IMPERIAL HI-DUTY HALF UNION, regulator

1шт.

A9504

SPARE PART

HOSE - vapor connection, regulator

1шт.

#4-3/4" HOSE CLAMP, regulator

2шт.

O8821AB

NIPPLE - vapor hose connector to carburetor, regulator

1шт.

O8822AB

ELBOW - vapor hose connector, regulator

1шт.

4001AA

REGULATOR - LP-Gas (Ensign no. 8793)

1шт.

5/16" X 1-1/4" N.F. HEX. BOLT W/LOCKWASHER, regulator

3шт.

A7612

CONTROL - flexible choke, carburetor

1шт.

A7767

LOOM - flexible choke control, carburetor

1шт.

A9729

CARBURETOR - LP-Gas (Ensign model KGL-Their no. 3721), carburetor

1шт.

O1580AB1

X

GASKET - air, Serial Range: cleaner-carburetor

1шт.

O9570AB

X

GASKET - inlet, Serial Range: manifold-carburetor

1шт.
