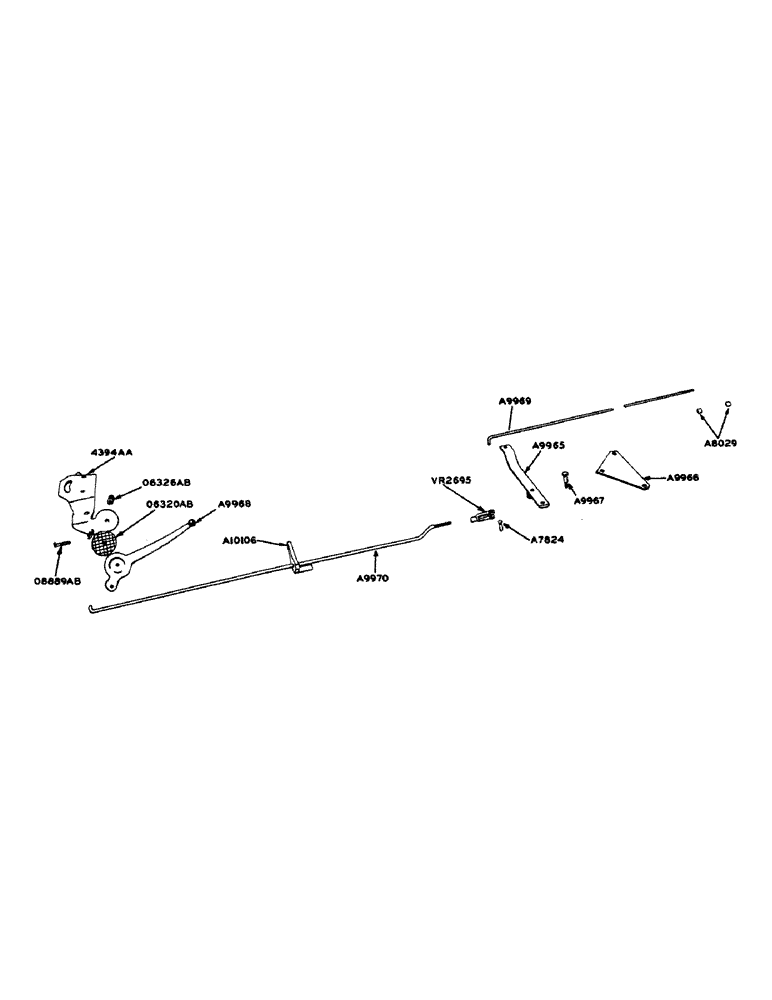

Запчасти Case IH 600-SERIES (040) - LP-GAS ENGINE, THROTTLE CONTROL (02) - ENGINE

A7824

X

PIN - throttle rear rod yoke end

1шт.

3/32" X 5/8" COTTER PIN

1шт.

A8029

COLLAR - throttle front rod stop

2шт.

1/4" X 3/8" N.C. SQ. HD. CUP POINT SET SCREW

2шт.

A9965

LEVER - throttle fulcrum

1шт.

A9966

SUPPORT - throttle fulcrum lever

1шт.

1/2" X 2-1/2" N.C. HEX. BOLT

2шт.

A9967

STUD - throttle fulcrum lever

1шт.

A9968

LEVER - throttle control

1шт.

A9969

ROD - throttle control, front

1шт.

3/32" X 5/8" COTTER PIN

1шт.

A9970

ROD - throttle control, rear

1шт.

3/32" X 5/8" COTTER PIN

1шт.

A10106

SUPPORT - belt pulley clutch rod and throttle rod

1шт.

1/2" X 1-3/4" N.C. HEX BOLT

1шт.

A10469

BRACKET - throttle rod support

1шт.

1/2" X 1" N.F. HEX. BOLT W/LOCKWASHER

1шт.

O6320AB

X

DISC - friction, throttle hand lever

1шт.

O6326AB

X

SPRING - throttle hand lever

1шт.

O8889AB

SCREW - throttle idle adjustment

1шт.

V13383

SPACER - throttle fulcrum lever support

1шт.

VR2695

X

END - yoke, throttle rear rod

1шт.

4394AA

BRACKET - operators seat mounting, with spark and throttle hand lever support and P.T.O. clutch hand lever mounting pin

1шт.
