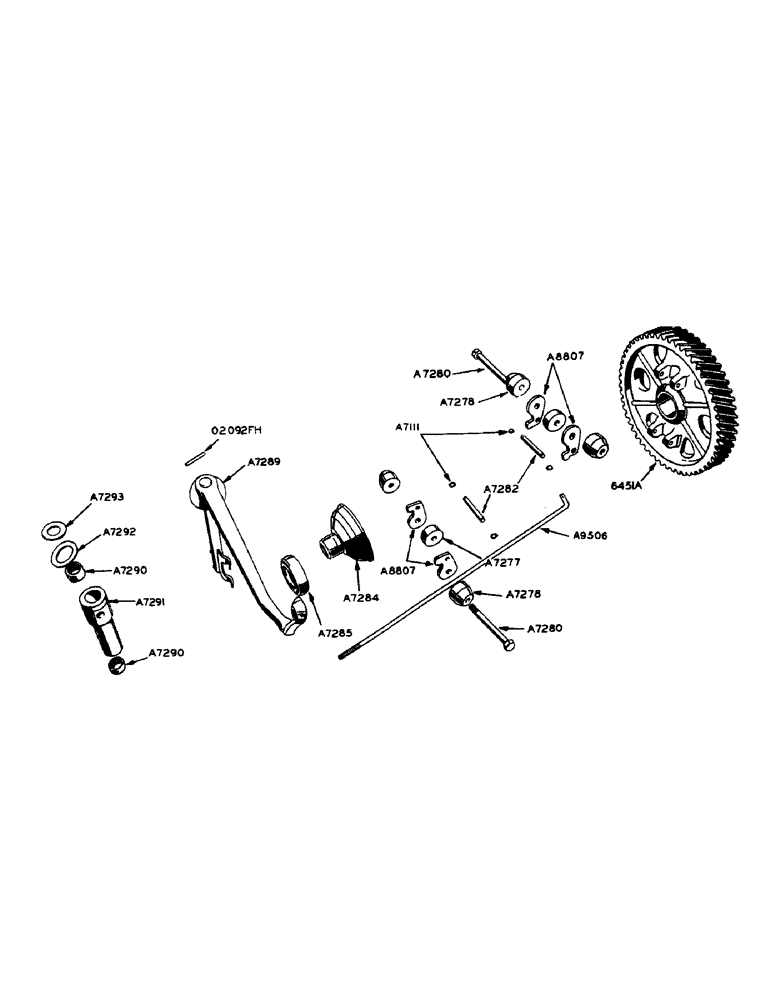

Запчасти Case IH 600-SERIES (039) - LP-GAS ENGINE, GOVERNOR (02) - ENGINE

A7111

SNAP RING,#25, Ext

Ring, Snap, , governor weight pin #25, Ext

4шт.

A7277

WEIGHT

- governor, inner

2шт.

A7278

WEIGHT - governor, outer

4шт.

A7280

BOLT - governor weight

2шт.

5/16" N.F. HEX. CASTLE NUT

2шт.

1/16" X 1/2" COTTER PIN

2шт.

A7282

PIN,6.31mm OD x 47.63mm L

- governor weight

2шт.

A7284

SLEEVE - governor

1шт.

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, governor (Aetna #E-10 or Nice #7043)

1шт.

A7288

LEVER (Use A7289)

1шт.

A7289

SHAFT - governor, with lever and finger

1шт.

3/32" X 3/4" COTTER PIN

1шт.

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle, governor lever shaft (Torrington #B-98)

2шт.

A7291

SLEEVE - governor lever shaft bearing

1шт.

A7292

SEAL

- governor lever hub

1шт.

A7293

WASHER

- governor lever bearing

1шт.

A7294

SPRING

- governor

1шт.

A8807

FINGERS - set of (4), for governor weight

1шт.

A9506

SPARE PART

ROD - governor, Serial Range: lever-carburetor

1шт.

#10 - 32 N.F. MACH. SCREW

1шт.

1/16" X 5/8" COTTER PIN

1шт.

O8526AB1

X

JOINT - ball, governor arm to carburetor rod

1шт.

O2092FH

X

ROLL PIN (3/16" x 1) for A7289 shaft

1шт.
