Запчасти Case IH 600-SERIES (037) - LP-GAS ENGINE, AIR CLEANER (02) - ENGINE

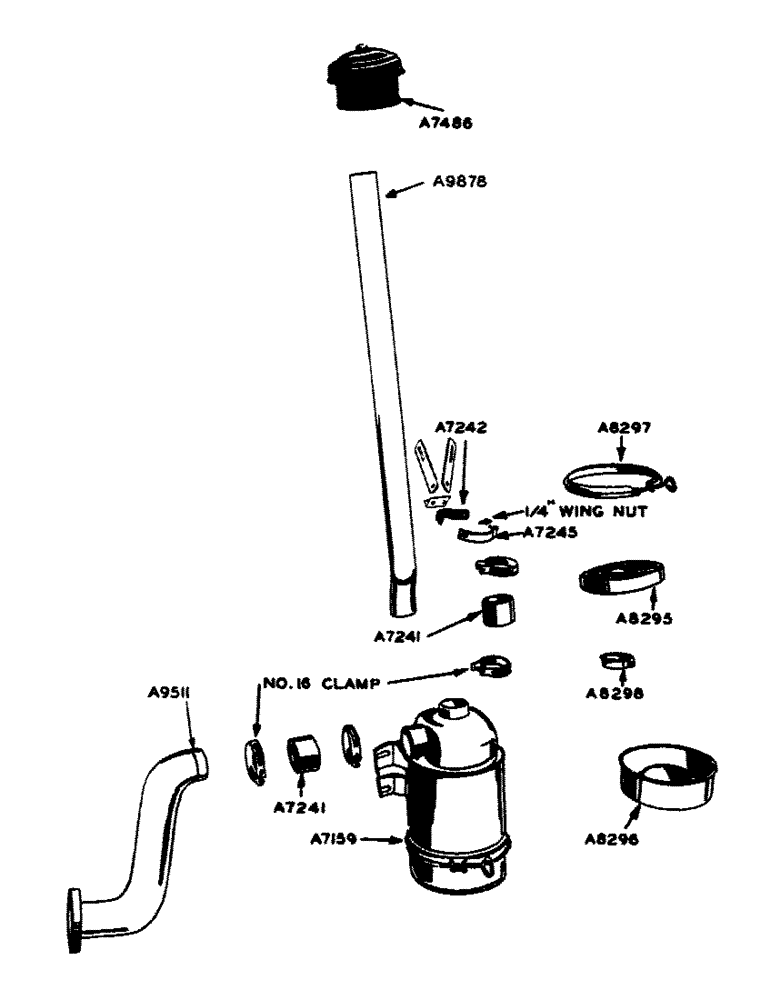

Схема запчастей Case IH 600-SERIES - (037) - LP-GAS ENGINE, AIR CLEANER (02) - ENGINE

Артикул

Название

Примечание

Количество

A7159

SPARE PART

AIR CLEANER

1шт.

3/8" X 3/4" N.C. HEX. BOLT

4шт.

3/8" #4020-26 SHAKEPROOF EXT. - INT. LOCKWASHER

4шт.

A7241

HOSE - air cleaner

2шт.

#16 HOSE CLAMP

4шт.

A7242

SUPPORT - air intake pipe

1шт.

5/16" X 3/4" N.C. CARRIAGE BOLT W/HEX. NUT

1шт.

5/16" #4018-24 SHAKEPROOF EXTERNAL - INTERNAL TOOTH LOCKWASHER

1шт.

A7245

STRAP - air intake pipe, and "T" bolt

1шт.

1/4" N.C. WING NUT (Zinc plated)

1шт.

A7486

X

PRE-SCREENER - air intake

1шт.

A9511

ELBOW - air cleaner

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER

2шт.

A9878

PIPE - air intake

1шт.

O1580AB1

X

GASKET - air cleaner, Serial Range: elbow-carburetor

1шт.

A8295

SCREEN - parts for A7159 air cleaner

1шт.

A8296

CUP - OIL, parts for A7159 air cleaner

1шт.

A8297

CLAMP

- oil cup retaining, parts for A7159 air cleaner

1шт.

A8298

CLAMP - screen retaining, parts for A7159 air cleaner

1шт.

Выбрано товаров: 19
