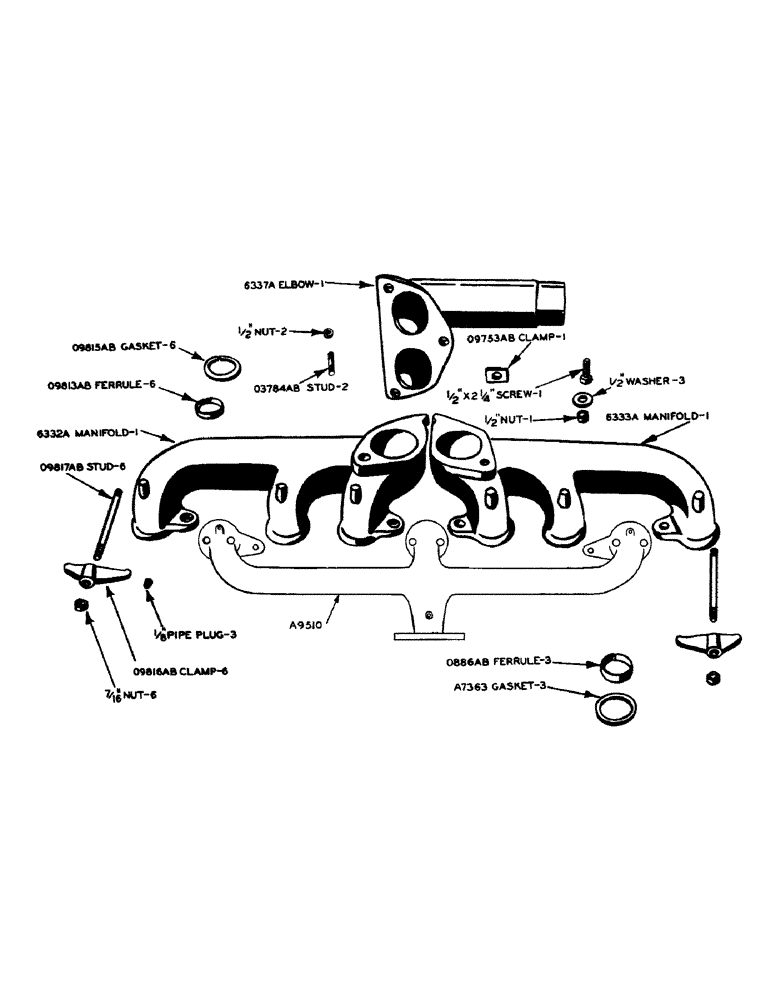

Запчасти Case IH 600-SERIES (036) - LP-GAS ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

A7363

MANIFOLD GASKET

- inlet manifold

3шт.

A9510

MANIFOLD - inlet

1шт.

3/8" X 1-1/2" N.F. HEX. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

1/8" SQ. HD. PIPE PLUG

4шт.

6332A

MANIFOLD - exhaust, front

1шт.

6333A

MANIFOLD - exhaust, rear

1шт.

6337A

ELBOW - exhaust

1шт.

1/2" X 2-1/4" N.F. HEX. HD. CAP SCREW W/NUT

1шт.

O886AB

X

FERRULE - inlet manifold

3шт.

O3784AB

STUD - exhaust elbow

2шт.

1/2" N.F. HEX. NUT, LIGHT

2шт.

O9753AB

CLAMP - exhaust elbow

1шт.

1/2" X 2-1/4" N.F. HEX. HD. CAP SCREW W/NUT

1шт.

O9809AB

X

GASKET - inlet manifold elbow

2шт.

O9813AB

X

FERRULE - exhaust manifold

6шт.

O9815AB

X

GASKET - exhaust manifold

6шт.

O9816AB

CLAMP - inlet and exhaust manifold

6шт.

O9817AB

X

STUD - inlet and exhaust manifold

6шт.

7/16" N.F. HEX. NUT, LIGHT

6шт.
