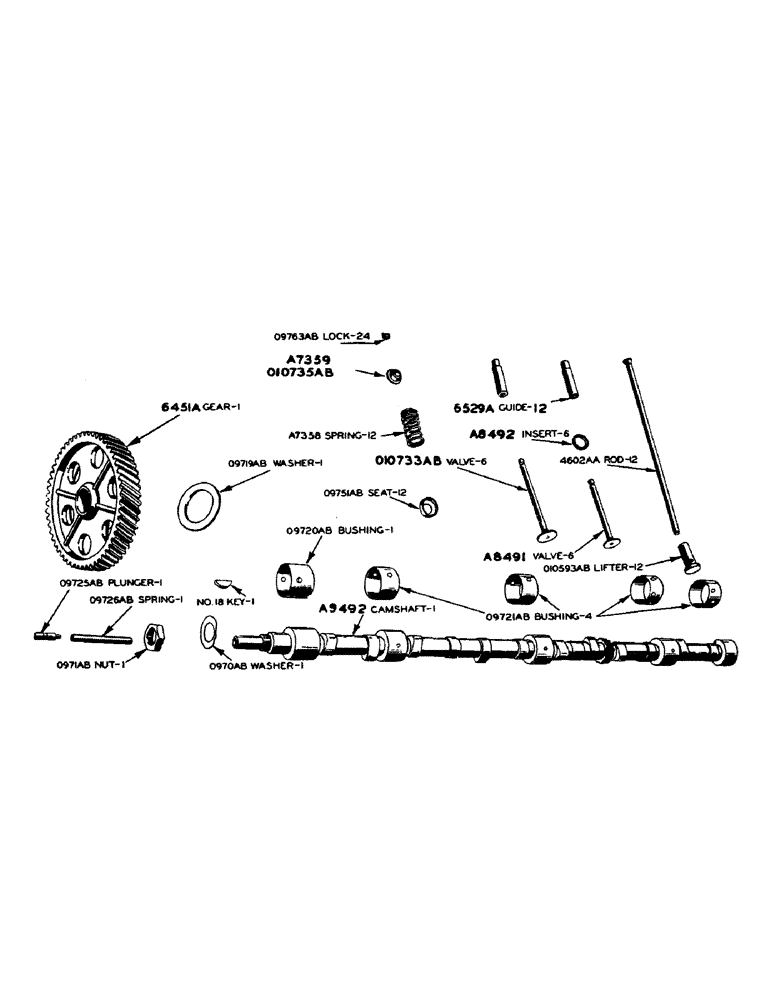

Запчасти Case IH 600-SERIES (032) - LP-GAS ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

A7205

LIFTER - push rod (.010" oversize) See O10593AB

12шт.

A7358

SPRING

- inlet and exhaust valve

12шт.

A7359

RETAINER - valve spring

12шт.

A8491

VALVE - exhaust

6шт.

A8492

INSERT - exhaust valve seat

6шт.

A9492

CAMSHAFT

1шт.

#18 WOODRUFF KEY

1шт.

6451A

X

GEAR - camshaft

1шт.

6529A

GUIDE - inlet and exhaust valve

12шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

O9719AB

WASHER - camshaft thrust

1шт.

O9720AB

BUSHING - camshaft, front

1шт.

O9721AB

BUSHING - camshaft, second, third, fourth and rear

4шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve

12шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

24шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (Standard size) see A7205

12шт.

O10733AB

VALVE - inlet

6шт.

O10735AB

ROTOCAP - exhaust valve

6шт.

4602AA

ROD

- push

12шт.
