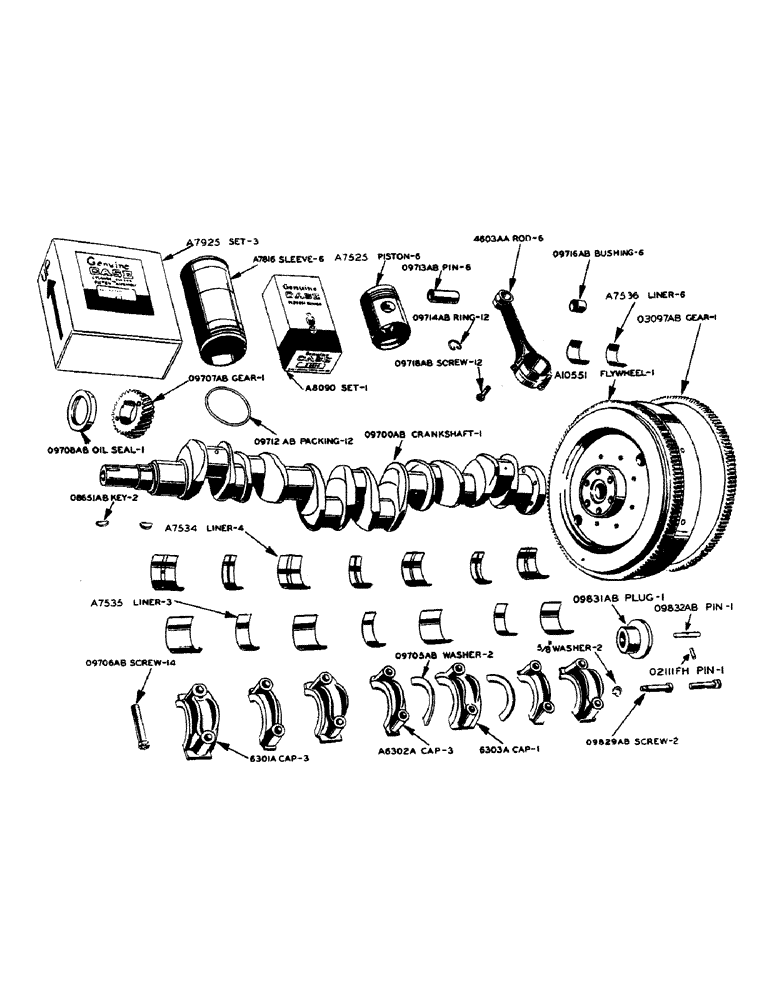

Запчасти Case IH 600-SERIES (030) - LP-GAS ENGINE, PISTONS, CONNECTING RODS AND CRANKSHAFT, PISTONS AND CONNECTING RODS (02) - ENGINE

A7207

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

6шт.

A7209

X

LINERS - connecting rod bearing, top and bottom half (.010" undersize)

6шт.

A7211

X

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

6шт.

A7213

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.030" undersize)

6шт.

A7525

PISTON

6шт.

A7526

OIL SEAL

RING - piston, top (See note)

6шт.

A7527

OIL SEAL

RING - piston, second and third (See note)

12шт.

A7528

RING - piston, oil (See note)

6шт.

A7536

X

LINERS - connecting rod bearing, top and bottom half (Standard size)

6шт.

A7816

X

SLEEVE - cylinder

6шт.

A7925

SET OF (2) CYLINDER SLEEVES, PISTONS, RINGS AND PISTON PINS

3шт.

A8090

RING

S - piston, set of (24) Perfect Circle 2 in 1 chrome

1шт.

O9712AB

X

PACKING - cylinder sleeve

12шт.

O9713AB

PIN - piston

6шт.

O9714AB

X

RING - piston pin retainer

12шт.

O9716AB

BUSHING - connecting rod

6шт.

O9718AB

X

SCREW - connecting rod cap

12шт.

4603AA

X

ROD - connecting, with cap, capscrew and piston pin bushing

6шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) See O9705AB

2шт.

A7216

SLEEVE CYLINDER

LINERS - crankshaft bearing (Wide - upper and lower) (.002" undersize)

4шт.

A7219

X

LINERS - crankshaft bearing (Narrow - upper and lower) (.002" undersize)

3шт.

A7222

X

LINERS - crankshaft bearing (Wide - upper and lower) (.010" undersize)

4шт.

A7225

LINERS - crankshaft bearing (Narrow - upper and lower) (.010" undersize)

3шт.

A7228

LINERS - crankshaft bearing (Wide - upper and lower) (.020" undersize)

4шт.

A7231

LINERS - crankshaft bearing (Narrow - upper and lower) (.020" undersize)

3шт.

A7234

LINERS - crankshaft bearing (Wide - upper and lower) (.030" undersize)

4шт.

A7237

LINERS - crankshaft bearing (Narrow - upper and lower) (.030" undersize)

3шт.

A7534

X

LINER - crankshaft bearing (Wide - upper and lower) standard size

4шт.

A7535

LINER - crankshaft bearing (Narrow - upper and lower) standard size

3шт.

A9871

FLYWHEEL - (Use A10551), crankshaft

1шт.

A10551

FLYWHEEL W/RING GEAR, crankshaft

1шт.

6301A

CAP - crankshaft bearing, wide

3шт.

A6302A

X

CAP - crankshaft bearing, narrow

3шт.

6303A

CAP - crankshaft thrust bearing

1шт.

O3097AB

X

GEAR - flywheel ring (139T), crankshaft

1шт.

O8651AB

X

KEY - for crankshaft gear and lower drive pulley

2шт.

O9700AB

CRANKSHAFT

1шт.

O9705AB

X

WASHER - crankshaft thrust (Standard size) see A7204

2шт.

O9706AB

SCREW - crankshaft bearing cup

14шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft, front

1шт.

O9829AB

SCREW - flywheel dowel, crankshaft

2шт.

5/8" STD. LOCKWASHER, crankshaft

2шт.

O9831AB

X

PLUG - flywheel oil control, crankshaft

1шт.

O9832AB

PIN - wiggle, flywheel oil control, crankshaft

1шт.

O2111FH

X

ROLL PIN - O9832AB wiggle pin, crankshaft

1шт.
