Запчасти Case IH 600-SERIES (028) - LP-GAS ENGINE, CYLINDER HEAD AND CYLINDER BLOCK, CYLINDER HEAD (02) - ENGINE

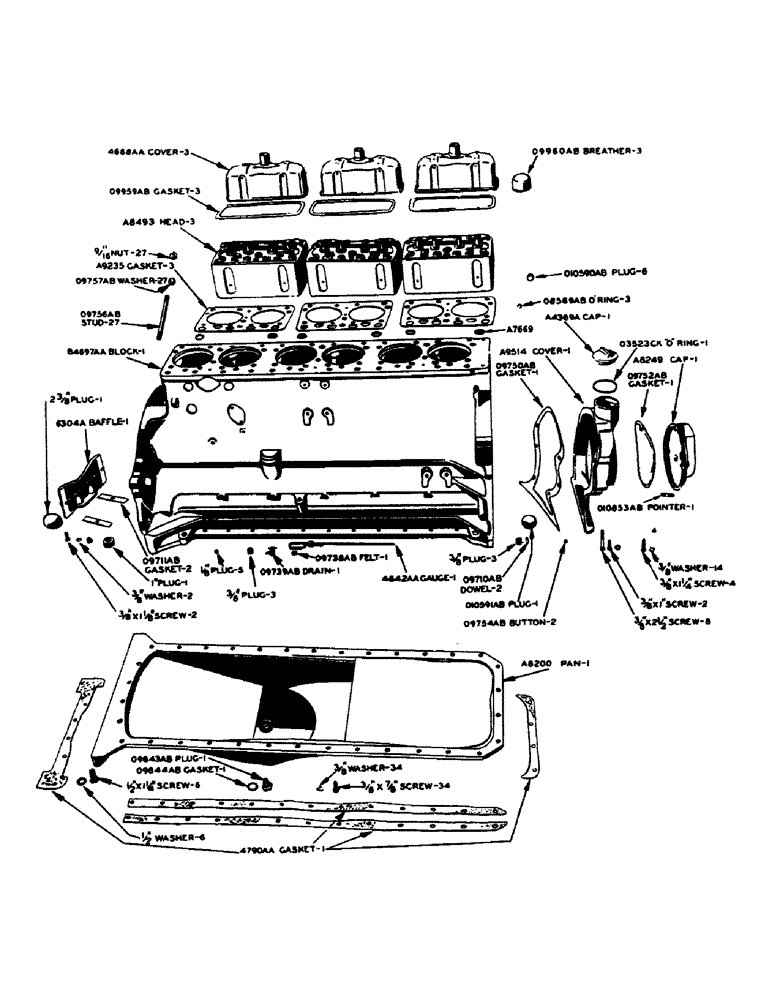

Схема запчастей Case IH 600-SERIES - (028) - LP-GAS ENGINE, CYLINDER HEAD AND CYLINDER BLOCK, CYLINDER HEAD (02) - ENGINE

Артикул

Название

Примечание

Количество

A7669

RING

- rubber, for A9235 cylinder head gasket

6шт.

A8493

HEAD - cylinder, with valve guides and valve inserts

3шт.

A8500

HEAD - cylinder (Use A8493)

1шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

3шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil pressure

3шт.

O9756AB

X

STUD - cylinder head

27шт.

9/16" N.F. HEX. LIGHT NUT

27шт.

O9757AB

X

WASHER - cylinder head stud

27шт.

O9959AB

X

GASKET - cylinder head cover

3шт.

O9960AB

X

BREATHER - cylinder head cover

3шт.

O10590AB

X

WELCH PLUG - for cylinder head (Cadmium plated)

6шт.

4668AA

COVER - cylinder head

3шт.

A7509

PLUG

WELCH PLUG - for cylinder block (1-3/8" dia.)

1шт.

B6300A

BLOCK - cylinder (Use B4697AA)

1шт.

O9738AB

FELT WASHER - lube oil level gauge, cylinder block

1шт.

O9739AB

X

VALVE - water drain, for cylinder block

1шт.

O10591AB

X

WELCH PLUG - (1-13/16") for cylinder block (Cadmium plated)

1шт.

4641AA

CONDUIT - fastens along cylinder block for headlight wire and temperature gauge tube

1шт.

5/16" X 1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, cylinder block

2шт.

4642AA

X

DIPSTICK - lube oil level, with felt washer, cylinder block

1шт.

B4647AA

BLOCK - cylinder, with bearing caps and cam shaft bushings

1шт.

1/8" SLOTTED HD. PIPE PLUG, cylinder block

4шт.

1/4" CTSK. HEADLESS PIPE PLUG, cylinder block

1шт.

3/8" CTSK. HEADLESS PIPE PLUG, cylinder block

3шт.

1" CTSK. HEADLESS PIPE PLUG, cylinder block

1шт.

2-3/8" WELCH PLUG, cy;linder block

1шт.

A8200

PAN - oil

1шт.

6304A

BAFFLE - engine oil rear, pan

1шт.

3/8" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, oil pan

2шт.

O9711AB

X

GASKET - for 6304A oil baffle, pan

1шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

4790AA

X

GASKET KIT - oil pan

1шт.

A8249

CAP - timing gear cover, with thrust button

1шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER, timing gear cover

1шт.

3/8" X 1-1/8" N.C. HEX. BOLT W/LOCKWASHER, timing gear cover

3шт.

A9513

COVER - timing gear (Use A9514)

1шт.

A9514

LEVER

COVER - timing gear w/thrust button

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER, timing gear cover

2шт.

3/8" X 2-1/2" N.C. HEX. BOLT W/LOCKWASHER, timing gear cover

8шт.

A4369A

CAP - oil filler, timing gear cover

1шт.

6473A

CAP - timing gear cover (Use A8249)

1шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing gear cover

1шт.

O3523CK

X

"O" RING - crankcase filler cap, timing gear cover

1шт.

A20149

KIT

valve grind, timing gear cover

1шт.

Выбрано товаров: 49
