Главная
/
Справочники
/
Case IH
/
Тракторы
/
Сельскохозяйственные
/
LEGACY
/
(600-SERIES) - CASE TRACTORS (1/57-12/57)
/
(02) - ENGINE
/

(027) - POWRCEL DIESEL ENGINE, STARTING FLUID PRIMER PUMP

Запчасти Case IH 600-SERIES (027) - POWRCEL DIESEL ENGINE, STARTING FLUID PRIMER PUMP (02) - ENGINE

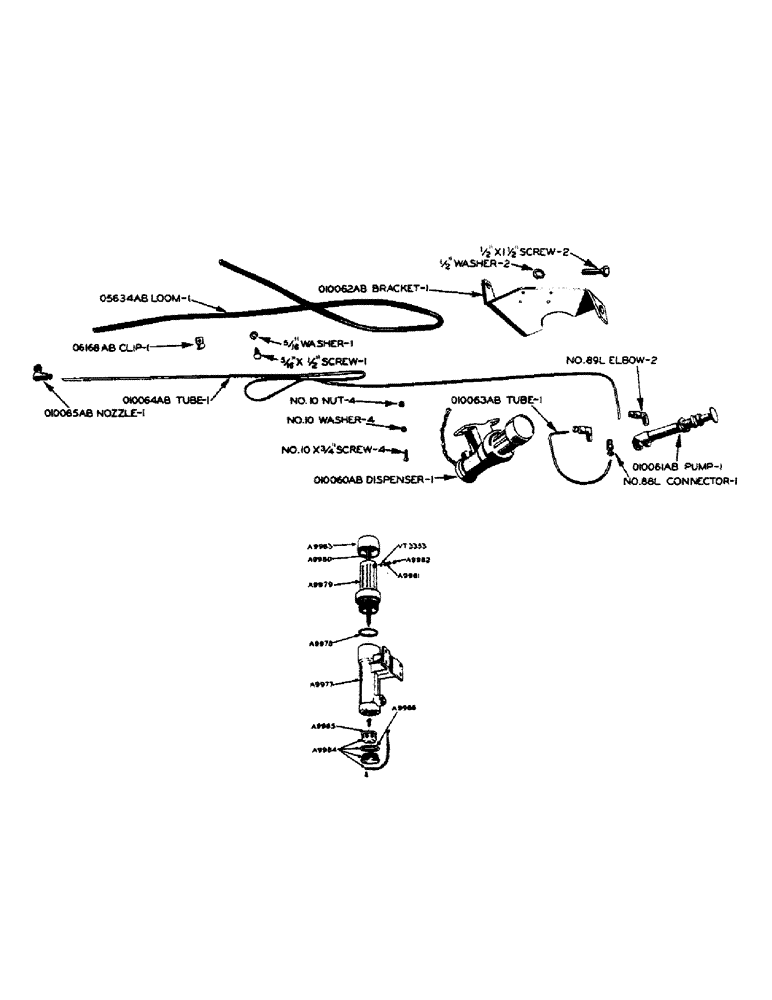

Схема запчастей Case IH 600-SERIES - (027) - POWRCEL DIESEL ENGINE, STARTING FLUID PRIMER PUMP (02) - ENGINE

№

Артикул

Название

Примечание

Количество

A7171

BRACKET

KIT - service, for O10061AB pump (Consists of: 2 - ball checks, 2 ball check springs, 2 - retainers for springs and 2 - O' ring packings)

1шт.

O5634AB

LOOM - for O10064AB tube

1шт.

O6168AB

CLIP - for O10064AB tube

1шт.

5/16" X 1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O10060AB

DISPENSER - starting fluid

1шт.

NO. 10 X 3/4" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

4шт.

O10061AB

PUMP - starting fluid primer

1шт.

O10062AB

BRACKET - starting fluid dispenser and primer pump

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O10063AB

TUBE - starting fluid dispenser to primer pump

1шт.

IMPERIAL HI-DUTY CONNECTOR, no. 88L (1/8" P.T.) connects tube to primer pump

1шт.

IMPERIAL HI-DUTY ELBOW, no. 89L (1/8" tube size x 1/8" P.T.) connects, Serial Range: tube-dispenser

1шт.

O10064AB

TUBE - starting fluid primer, Serial Range: pump-manifold

1шт.

IMPERIAL HI-DUTY ELBOW, no. 89L (1/8" tube size x 1/8" P.T.) connects tube to primer pump

1шт.

O10065AB

NOZZLE - starting fluid priming elbow (Connects O10064AB, Serial Range: tube-manifold)

1шт.

A9977

BODY - lower, parts for 010060AB starting fluid dispenser

1шт.

A9978

GASKET - body, parts for 010060AB starting fluid dispenser

1шт.

A9979

CHAMBER - upper capsule, short, parts for 010060AB starting fluid dispenser

1шт.

A9980

PLUNGER ASSEMBLY - short, parts for 010060AB starting fluid dispenser

1шт.

A9981

SPRING - plunger lock, parts for 010060AB starting fluid dispenser

1шт.

A9982

PLUG - plunger lock, parts for 010060AB starting fluid dispenser

1шт.

A9983

KNOB - plunger, parts for 010060AB starting fluid dispenser

1шт.

A9984

PLUG - and strainer assembly, with chain, parts for 010060AB fluid dispenser

1шт.

A9985

STRAINER, parts for 010060AB starting fluid dispenser

1шт.

A9986

GASKET

- for A9984 plug, parts for 010060AB starting fluid dispenser

1шт.

VT3353

X

BALL - plunger lock, 3/16" dia., parts for 010060AB starting fluid dispenser

1шт.

Выбрано товаров: 26
