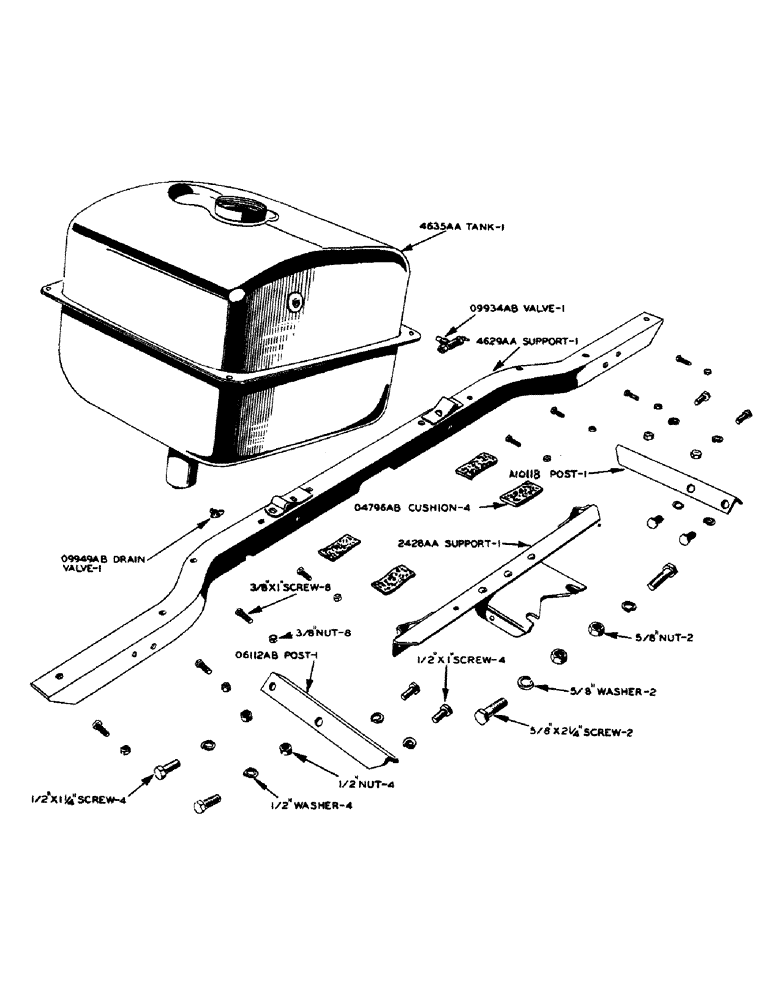

Запчасти Case IH 600-SERIES (025) - POWRCEL DIESEL ENGINE, FUEL TANK (02) - ENGINE

A10118

LUBE NIPPLE

POST - fuel tank rear support, L.H.

1шт.

1/2" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O4796AB

X

CUSHION - fuel tank

4шт.

O6112AB

POST - fuel tank rear support, R.H.

1шт.

1/2" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

1/2" X 1-1/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

1шт.

O9934AB

X

VALVE - needle, for fuel tank (3/8" tube size x 3/8" P.T.) to which O9935AB tube connects

1шт.

O9949AB

X

VALVE - water drain, for fuel tank

1шт.

2428AA

SUPPORT - fuel tank, front

1шт.

4629AA

SUPPORT - fuel tank, rear

4шт.

1/2" X 1-1/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

4шт.

4635AA

TANK - fuel

1шт.
