Запчасти Case IH 600-SERIES (021) - POWRCEL DIESEL ENGINE, FUEL INJECTOR NOZZLE AND TUBES (02) - ENGINE

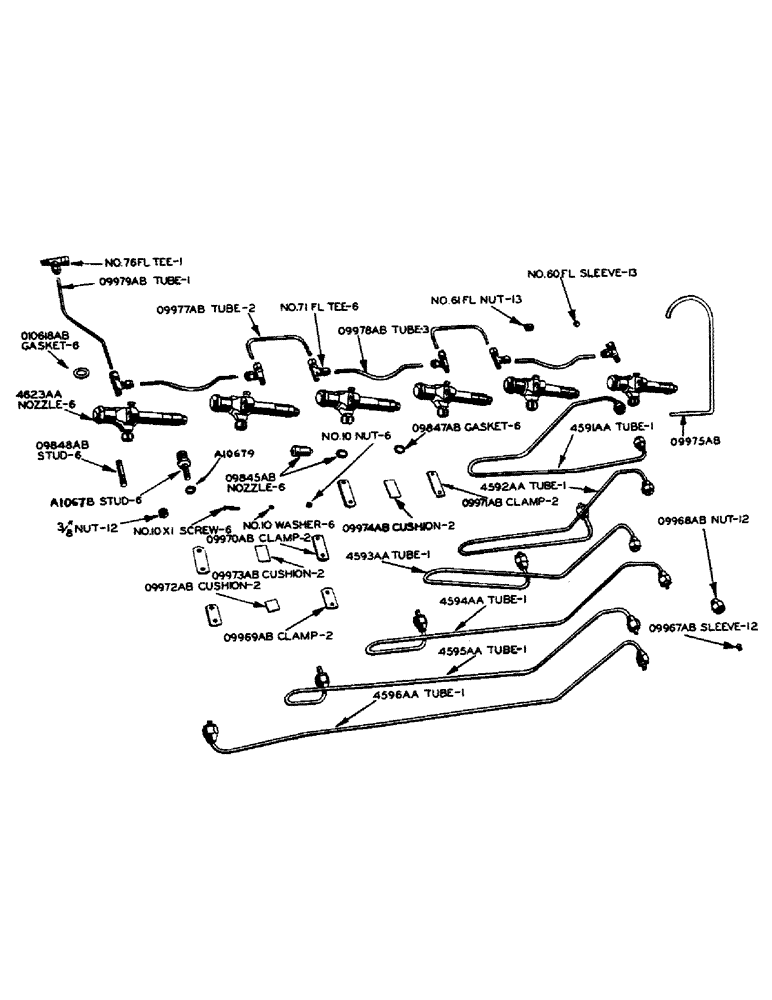

Схема запчастей Case IH 600-SERIES - (021) - POWRCEL DIESEL ENGINE, FUEL INJECTOR NOZZLE AND TUBES (02) - ENGINE

Артикул

Название

Примечание

Количество

A10678

STUD

- nozzle holder, large (7/8" across flats for wrench) See O9849AB

6шт.

A10679

GASKET

- for A10678 nozzle holder stud

6шт.

O9845AB

X

INJECTOR NOZZLE WITH O9847AB GASKET

6шт.

O9847AB

X

GASKET - injector nozzle holder

6шт.

O9848AB

X

STUD - nozzle holder, small

6шт.

3/8" N.F. LIGHT HEX. NUT

6шт.

O9849AB

STUD - nozzle holder, large (3/4" across flats for wrench) See A10678

6шт.

O9967AB

X

SLEEVE - fuel injector tube coupling

12шт.

O9968AB

NUT - fuel injector tube

12шт.

O9969AB

X

CLAMP - fuel injector tube (Clamps 3 tubes)

2шт.

NO. 10 X 1" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O9970AB

X

CLAMP - fuel injector tube (Clamps 5 tubes)

2шт.

NO. 10 X 1" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O9971AB

CLAMP - fuel injector tube (Clamps 6 tubes)

2шт.

NO. 10 X 1" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O9972AB

X

CUSHION - between O9969AB clamp and fuel injector tubes

2шт.

O9973AB

X

CUSHION - between O9970AB clamp and fuel injector tubes

2шт.

O9974AB

CUSHION - between O9971AB clamp and fuel injector tubes

2шт.

O9975AB

TUBE - leak-off, fuel pump to injector nozzle (1/4" tubing) w/ 60FL sleeve and 61FL nut

1шт.

O9977AB

TUBE - injector leak-off, upper (1/4" tubing) w/60FL sleeve and 61FL nut

2шт.

O9978AB

X

TUBE - injector leak-off, lower (1/4" tubing) w/60FL sleeve and 61FL nut

3шт.

O9979AB

TUBE - injector leak-off, to fuel tank (1/4" tubing) w/60FL sleeve and 61FL nut

1шт.

IMPERIAL FLEX TEE #76FL (1/4" tube size x 1/4" P.T.)

1шт.

O10604AB

X

CONNECTION - fuel pump leak-off check

1шт.

O10618AB

X

GASKET - for injector pressure adjusting screw protective cap

6шт.

4591AA

TUBE - fuel injector, with sleeves and nuts, for no. 1 cylinder

1шт.

4592AA

TUBE - fuel injector, with sleeves and nuts, for no. 2 cylinder

1шт.

4593AA

TUBE - fuel injector, with sleeves and nuts, for no. 3 cylinder

1шт.

4594AA

TUBE - fuel injector, with sleeves and nuts, for no. 4 cylinder

1шт.

4595AA

TUBE - fuel injector, with sleeves and nuts, no. 5 cylinder

1шт.

4596AA

TUBE - fuel injector, with sleeve and nuts, for no. 6 cylinder

1шт.

4623AA

X

NOZZLE - injector, with holder and gasket

6шт.

IMPERIAL FLEX TEE NO. 71FL (1/4" tube size x 1/8" P.T. short)

6шт.

Выбрано товаров: 33
