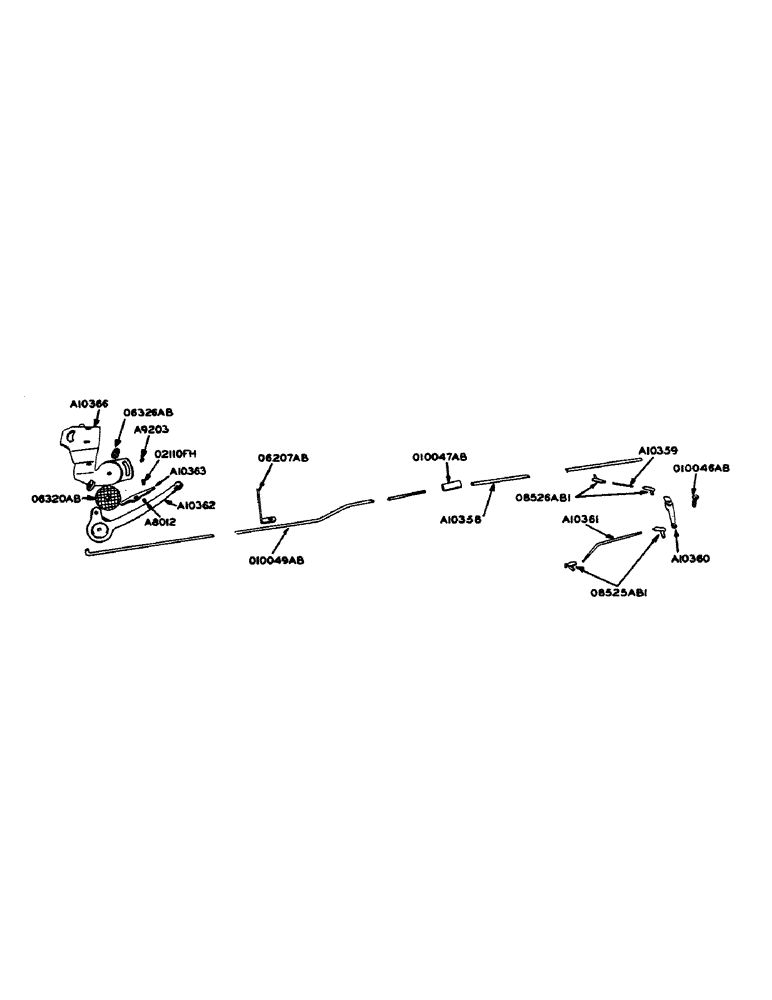

Запчасти Case IH 600-SERIES (020) - POWRCEL DIESEL ENGINE, FUEL PUMP THROTTLE CONTROL (02) - ENGINE

A8012

SPRING

- throttle shut-off lock

1шт.

A9203

STOP - throttle control lever

1шт.

5/16" N.F. HEX. JAM NUT

2шт.

A10358

ROD - throttle, front

1шт.

A10359

LINK - throttle connecting, front, Serial Range: rod-lever

1шт.

A10360

LEVER - throttle control

1шт.

A10361

ROD - fuel, Serial Range: pujmp-lever

1шт.

1/4" N.F. HEX. JAM NUT

2шт.

A10362

LEVER - throttle control hand

1шт.

5/16" X 2-1/4" N.F. HEX. HD. CAP SCREW

1шт.

5/16" N.F. LIGHT HEX. NUT

2шт.

A10363

LATCH - throttle control hand lever stop

1шт.

A10366

BRACKET - operators seat mounting, with throttle hand lever support and PTO clutch hand lever mounting pin

1шт.

5/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

5/8" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O6207AB

SUPPORT - throttle rod

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW

2шт.

1/2" X 1-3/4" N.C. HEX. HD. CAP SCREW

1шт.

O6320AB

X

DISC - friction, throttle hand lever

1шт.

O6326AB

X

SPRING - throttle hand lever

1шт.

O8525AB1

X

BALL JOINT - throttle link, Serial Range: pump-lever

2шт.

1/4" N.F. HEX. NUT W/LOCKWASHER

1шт.

O8526AB1

X

BALL JOINT - throttle link, front, Serial Range: rod-lever

2шт.

O10046AB

SCREW - pivot, throttle control lever

1шт.

O10047AB

COUPLING - throttle rod

1шт.

1/4" - 28 x 5/16" hex. socket hd. set screw

1шт.

O10049AB

ROD - throttle, rear

1шт.

3/32" X 5/8" COTTER PIN

1шт.

5/16" N.F. HEX. NUT

1шт.

O2110FH

X

ROLL PIN - (3/16" x 3/4") throttle lever stop latch

1шт.
