(015) - POWRCEL DIESEL ENGINE, PARTS FOR O9818AB AIR CLEANER/ PARTS FOR 09827AB PRE-SCREENER

Запчасти Case IH 600-SERIES (015) - POWRCEL DIESEL ENGINE, PARTS FOR O9818AB AIR CLEANER/ PARTS FOR 09827AB PRE-SCREENER (02) - ENGINE

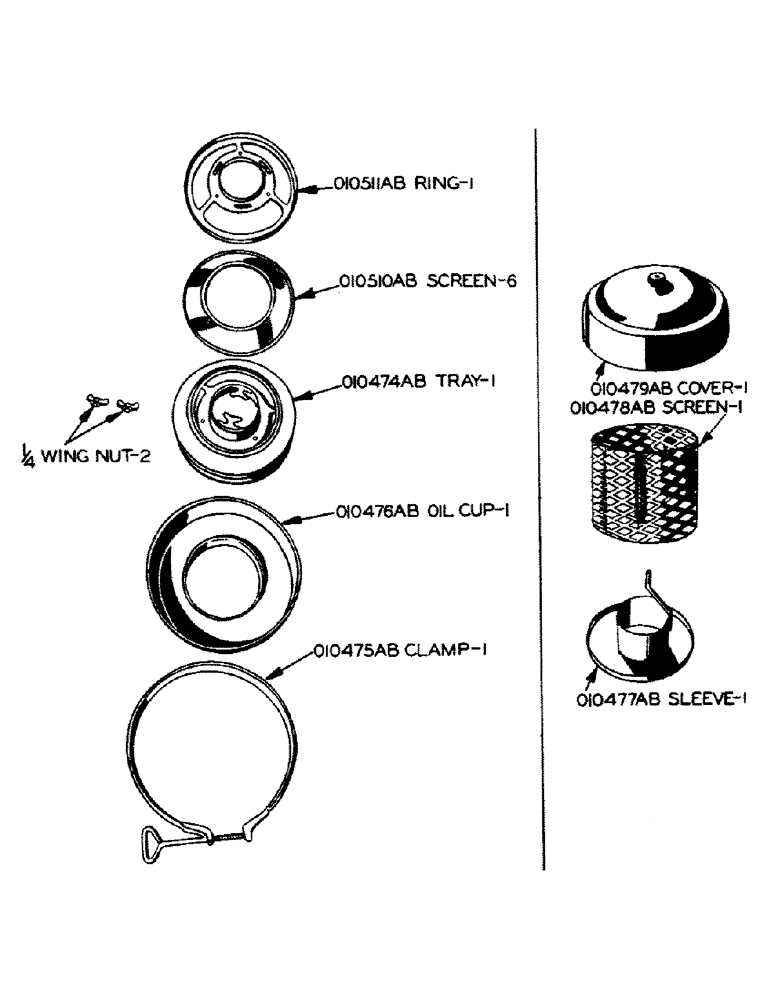

Схема запчастей Case IH 600-SERIES - (015) - POWRCEL DIESEL ENGINE, PARTS FOR O9818AB AIR CLEANER/ PARTS FOR 09827AB PRE-SCREENER (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

O10474AB

TRAY

1шт.

1/4" - 20 std. wing nut

2шт.

O10475AB

X

CLAMP - retaining, for oil cup

1шт.

O10476AB

OIL CUP

1шт.

O10510AB

CONED SCREEN

6шт.

O10511AB

RING - screen retainer, with wing bolt

1шт.

O10477AB

SLEEVE ASSEMBLY, parts for 09827AB pre-screener

1шт.

O10478AB

SCREEN, parts for 09827AB pre-screener

1шт.

O10479AB

COVER WITH NUT, parts for 09827AB pre-screener

1шт.

Выбрано товаров: 0
