Запчасти Case IH 600-SERIES (014) - POWRCEL DIESEL ENGINE, AIR CLEANER (02) - ENGINE

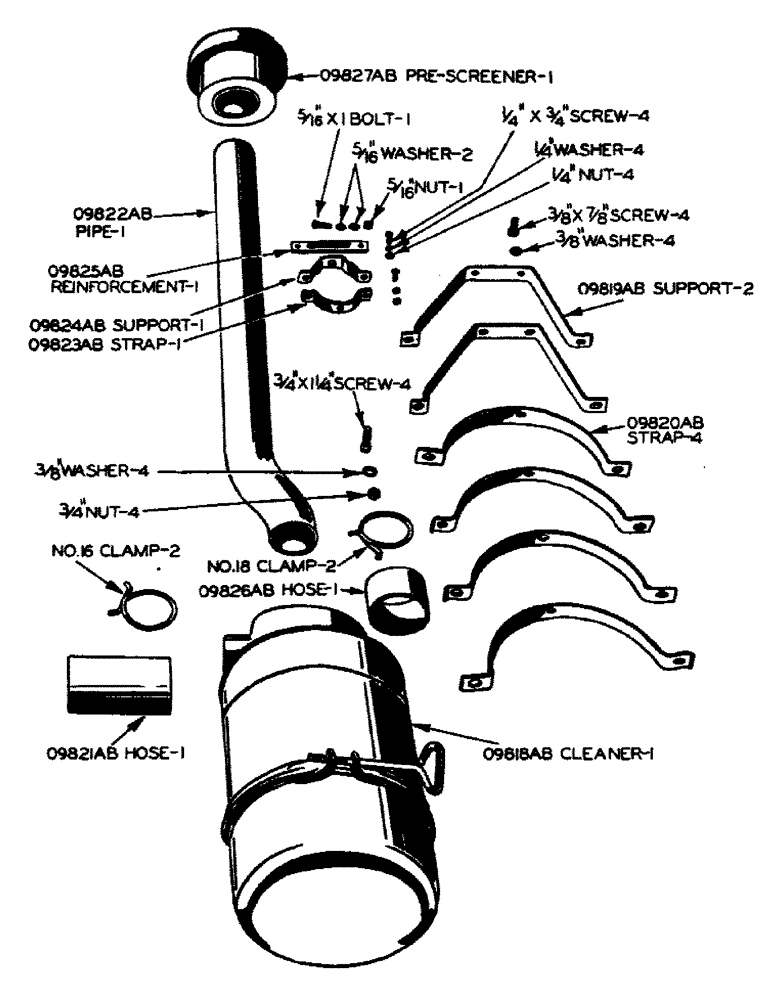

Схема запчастей Case IH 600-SERIES - (014) - POWRCEL DIESEL ENGINE, AIR CLEANER (02) - ENGINE

Артикул

Название

Примечание

Количество

O9818AB

AIR CLEANER

1шт.

O9819AB

SUPPORT - air cleaner

2шт.

3/8" X 7/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, fastens support to cylinder block

4шт.

O9820AB

STRAP - air cleaner

4шт.

3/8" X 1-1/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

4шт.

O9821AB

HOSE - air cleaner

1шт.

#16 HOSE CLAMP (For 2-5/8" O dia. hose)

2шт.

O9822AB

PIPE - air intake

1шт.

O9823AB

STRAP - air intake pipe

1шт.

1/4" X 3/4" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O9824AB

SUPPORT - air intake pipe

1шт.

5/16" X 1" CARR. BOLT W/HEX. NUT

1шт.

5/16" SHAKEPROOF EXTERNAL-INTERNAL LOCKWASHER NO. 4018-24

1шт.

O9825AB

REINFORCEMENT - air intake pipe support

1шт.

1/4" X 3/4" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O9826AB

X

HOSE - air intake pipe

1шт.

NO. 18 HOSE CLAMP (For 2-7/8" O dia. hose)

2шт.

O9827AB

PRE-SCREENER - air intake

1шт.

Выбрано товаров: 18
