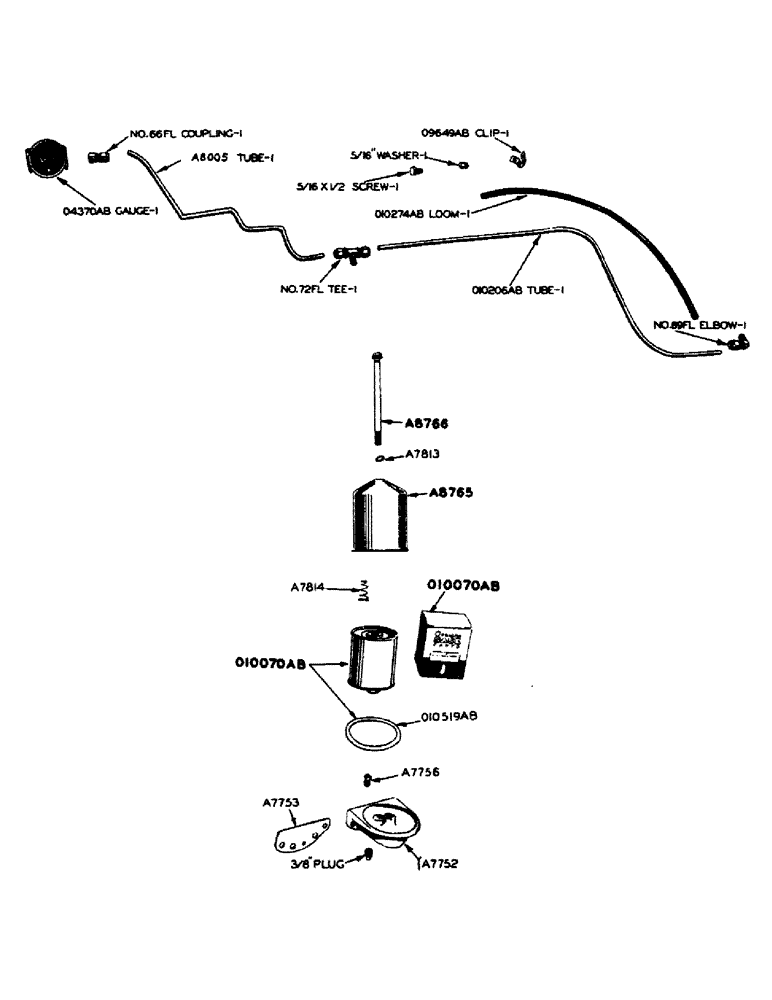

Запчасти Case IH 600-SERIES (012) - POWRCEL DIESEL ENGINE, LUBRICATING OIL PRESSURE GAUGE (02) - ENGINE

A8005

TUBE - oil gauge, rear

1шт.

IMPERIAL FLEX FEMALE COUPLING #66FL (1/4" tube size x 1/8" P.T.) connects tube to oil gauge

1шт.

IMPERIAL FLEX TEE #72FL (1/4" tube size x 1/8" P.T.) connects tube to O10207AB tube and O10208AB pressure switch connector

1шт.

O4370AB

X

GAUGE - oil pressure

1шт.

5/16" N.C. HEX. HD. CAPSCREW W/LOCKWASHER

1шт.

O9649AB

CLIP - lube oil gauge front tube

1шт.

O10206AB

TUBE - oil gauge, front

1шт.

IMPERIAL FLEX TEE #72FL (1/4" tube size x 1/8" P.T.) connects tube to O10207AB tube and O10208AB pressure switch connector

1шт.

IMPERIAL FLEX ELBOW #69FL (1/4" tube size x 1/8" P.T.) connects tube to cylinder block

1шт.

O10274AB

LOOM - for O10206AB front oil gauge tube

1шт.

A7752

BASE - oil filter

1шт.

1/2" X 1-1/2" N.C. HEX. BOLT W/LOCKWASHER

2шт.

3/8" SQ. HD. PIPE PLUG

1шт.

A7753

GASKET

- oil filter base

1шт.

A7756

VALVE

- check, oil filter

1шт.

A7813

GASKET

- oil filter pipe

1шт.

A7814

SPRING

- oil filter

1шт.

A8765

SHELL

1шт.

A8766

PIPE

1шт.

O10070AB

X

ELEMENT - with gasket , oil filter

1шт.

O10519AB

GASKET - cover

1шт.
