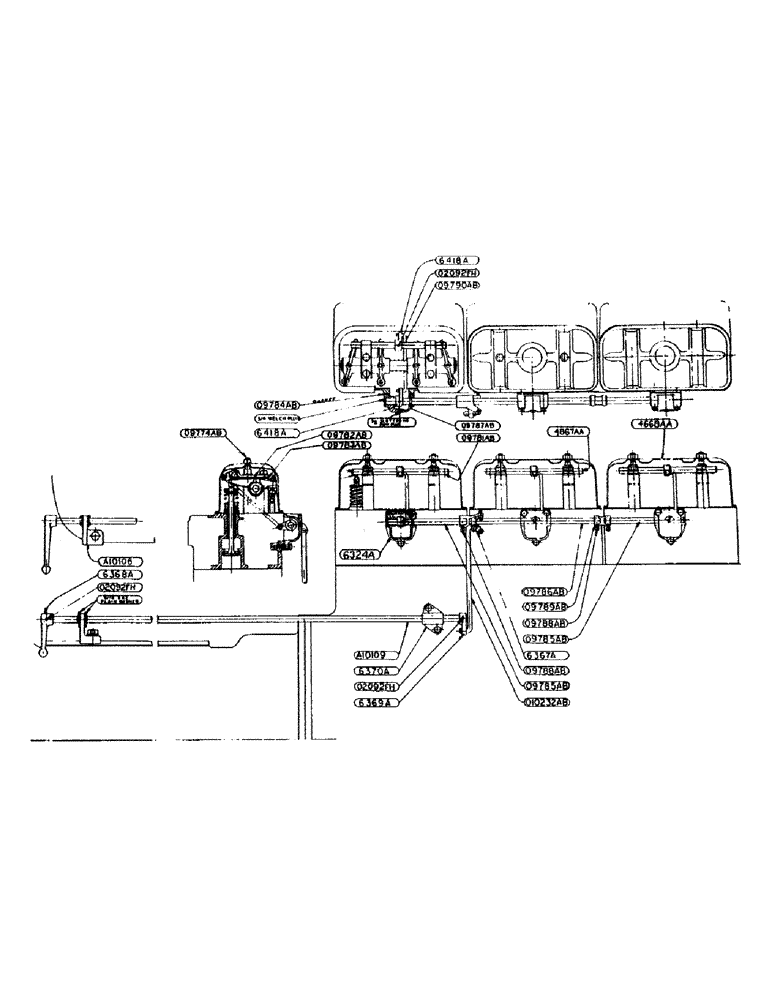

Запчасти Case IH 600-SERIES (010) - POWRCEL DIESEL ENGINE, DECOMPRESSOR ASSEMBLY (02) - ENGINE

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A10664

X

GEAR - oil pump drive

1шт.

A6312A

BODY - oil pump

1шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

6361A

COVER - oil pump body

1шт.

1/4" X 3/4" N.C. RD. HD. MACH. SCREW W/LOCKWASHER

5шт.

1/4" X 1-1/2" N.C. RD. HD. MACH. SCREW W/LOCKWASHER

1шт.

O4234AB

X

SPRING - oil pump relief plunger

1шт.

O8786AB

X

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" COTTER PIN

1шт.

O9728AB

X

SHAFT - oil pump stub

1шт.

O9729AB

SHAFT - oil pump stub

1шт.

O9730AB

X

GEAR - oil pump, with keyway

1шт.

NO. 5 WOODRUFF KEY

1шт.

O9731AB

X

GEAR - oil pump, without keyway

1шт.

O9732AB

X

WASHER - thrust, oil pump drive gear

1шт.

O9735AB

NUT - adjusting screw, oil pump relief

1шт.

O10323AB

RING

SNAP RING - oil pump drive shaft

1шт.

O2112FH

X

ROLL PIN (3/16" x 7/8") oil pump drive gear

1шт.

4704AA

X

OIL PUMP ASSEMBLY, less screen

1шт.
