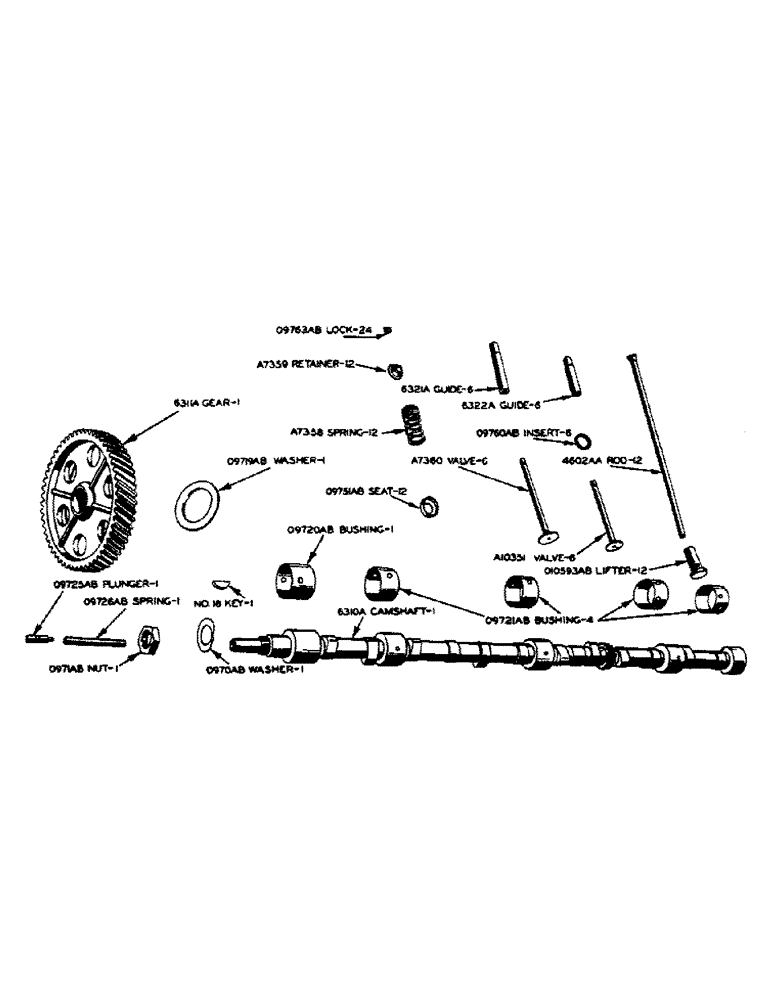

Запчасти Case IH 600-SERIES (007) - POWRCEL DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

A7205

LIFTER - push rod (.010" oversize) See O10593AB

12шт.

A7358

SPRING

- inlet and exhaust valve

12шт.

A7359

RETAINER - valve spring

12шт.

A7360

VALVE,ENGINE,INLET,S

VALVE - inlet

6шт.

A10351

VALVE, ENG EXHAUST,

VALVE - exhaust (Scraper type)

6шт.

6310A

CAMSHAFT

1шт.

6311A

X

GEAR - camshaft

1шт.

NO. 18 WOODRUFF KEY

1шт.

6321A

GUIDE - inlet valve

6шт.

6322A

GUIDE - exhaust valve

6шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

O9719AB

WASHER - camshaft thrust

1шт.

O9720AB

BUSHING - camshaft, front

1шт.

O9721AB

BUSHING - camshaft, second, thrid, fourth and rear

4шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

12шт.

O9760AB

INSERT - exhaust valve seat

6шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

24шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (Standard size) See A7205

12шт.

4602AA

ROD

- push

12шт.
