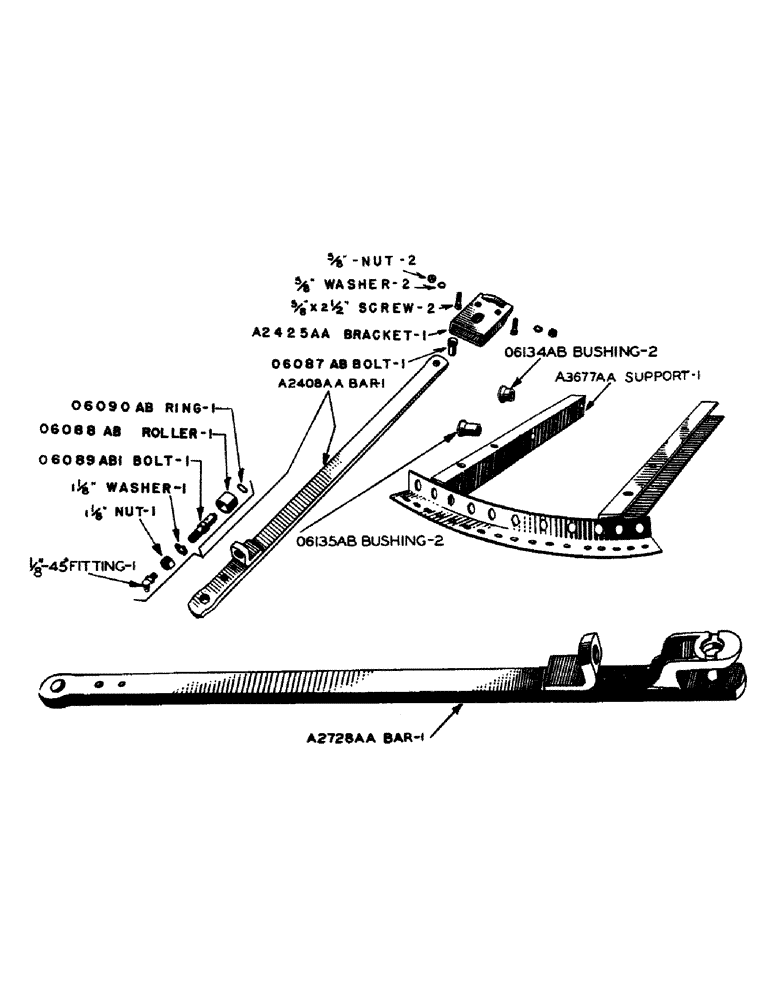

Запчасти Case IH 600-SERIES (132) - DRAW BAR (09) - CHASSIS

O6087AB

X

BOLT - draw bar pivot

1шт.

O6088AB

X

ROLLER - draw bar

1шт.

O6089AB1

X

BOLT - draw bar roller

1шт.

1/8" - 45 degree Lincoln fitting #5200

1шт.

1-1/8" N.F. HEX. NUT, light, w/lockwasher

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt

1шт.

O6134AB

BUSHING - draw bar channel, front

2шт.

3/8" X 2-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O6135AB

BUSHING - draw bar channel, rear

2шт.

3/4" X 3" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

A2408AA

X

DRAWBAR - with roller assembly (Consists of: Draw bar with 1 - O6088AB, 1 - O6089AB1, 1 - O6090AB, 1 - 1-1/8" N.F. hex. nut w/lockwasher and 1/8" - 45 degree Lincoln fitting)

1шт.

A2425AA

BRACKET - draw bar pivot

1шт.

5/8" X 2-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

A3677AA

SUPPORT - drawbar

1шт.

5738A

YOKE - draw bar (Use A2728AA), rear end

1шт.

O6088AB

X

ROLLER - draw bar, yoke type rear end

1шт.

O6089AB1

X

BOLT - draw bar roller, yoke type rear end

1шт.

1/8" - 45 degree Lincoln fitting no. 5200, draw bar w/ yoke type rear end

1шт.

1-1/8" N.F. HEX. NUT W/LOCKWASHER, draw bar w/ yoke type rear end

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt, yoke type rear end

1шт.

O6249AB

PIN - draw bar, yoke type rear end

1шт.

3/8" X 2-1/2" COTTER PIN, draw bar w/ yoke type rear end

1шт.

A2728AA

BAR - draw with roller assembly (Machy. item) Consists of drawbar with 1 - O6088AB, 1 - O6089AB1, 1 - O6090AB, 1 - O6249AB, 1 - 1-1/8" hex. light nut, N.F. thrd. 1 - 1-1/8" lockwasher, 1 - 3/8" x 2-1/2" cotter pin and 1-1/8" 45 degree Lincoln fitting

1шт.
