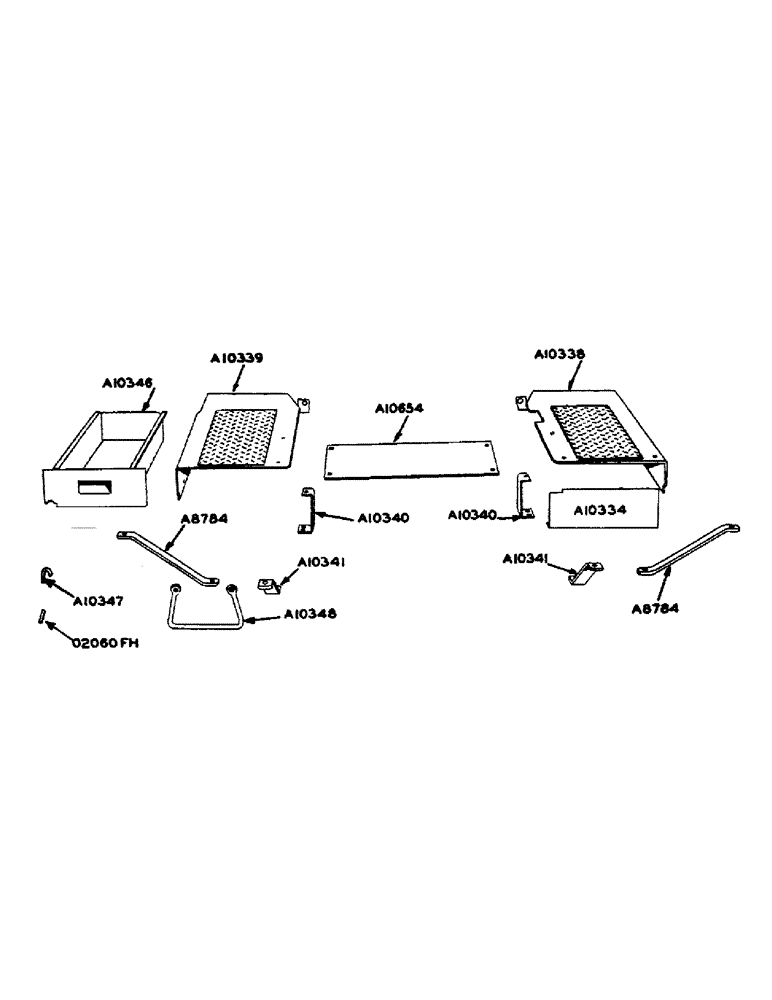

Запчасти Case IH 600-SERIES (131) - PLATFORM AND TOOL BOX (09) - CHASSIS

A8784

BRACE - platform

2шт.

1/2" X 1-3/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

5/8" X 1-3/4" N.F. HEX. HD. CAP SCREW W/HEX. LIGHT NUT AND LOCKWASHER

4шт.

A10334

PANEL - platform cover

1шт.

5/16" X 3/4" N.C. CARR. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

A10338

PLATFORM - R.H.

1шт.

5/16" X 3/4" N.C. CARR. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

3/8" X 1-1/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

A10339

PLATFORM - L.H.

1шт.

5/16" X 3/4" N.C. CARR. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

3/8" X 1-1/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

A10340

BRACE - platform

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

A10341

BRACE - platform, lower

2шт.

5/8" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

A10346

TOOL BOX

1шт.

1/4" X 1" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A10347

LOCK - tool box

1шт.

A10348

STEP

1шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT

2шт.

A10654

PLATE - platform, rear (For tractors less PTO and hydraulic unit)

1шт.

5/16" X 1" N.C. CARR. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

O2060FH

X

ROLL PIN - (1/8" x 3/4") tool box lock

1шт.
