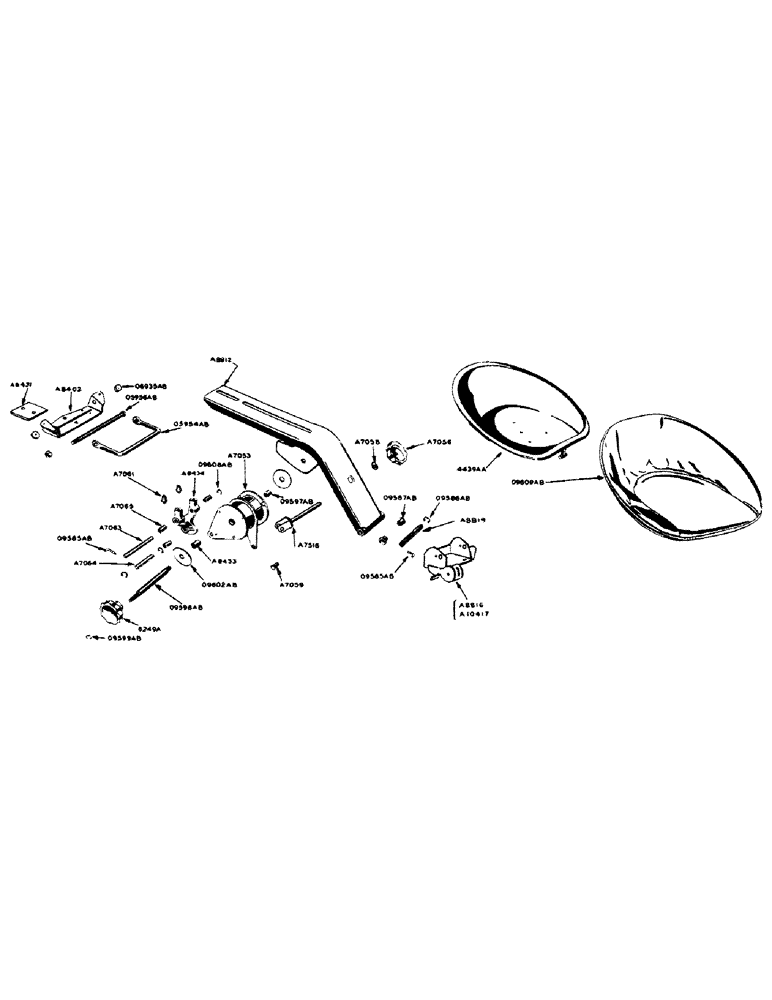

Запчасти Case IH 600-SERIES (113) - CASE "COMFORT" SEAT (09) - CHASSIS

A7053

SPRING

- rubber torsion, and side arm assembly

1шт.

A7056

NUT

- hand wheel, to adjust seat spring

1шт.

A7058

BUSHING

WASHER - seat spring adjusting nut

1шт.

A7059

PIN - seat spring mounting adjusting rod

1шт.

3/32" X 3/4" COTTER PIN

1шт.

A7061

BUMPER

- seat, on A8434 link

2шт.

A7063

PIN - seat mounting support link, upper

1шт.

A7064

FRAME

PIN - seat mounting support link, lower

1шт.

A7065

BUSHING

- upper, for A8434 support link

2шт.

A7516

ROD AND YOKE END - seat spring adjusting

1шт.

A8402

BRACKET - seat rear support

1шт.

A8431

PLATE - seat channel reinforcement

1шт.

A8433

BUSHING - lower, for A8434 support link

2шт.

A8434

LINK - seat mounting support, with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings

1шт.

A8812

CHANNEL - seat, with O9587AB bushing

1шт.

A8816

BRACKET - seat channel and throttle lever (For LP-Gas tractors) See A10417

1шт.

5/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER

2шт.

3/4" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER

1шт.

3/8" PLAIN WASHER (Spacer under bracket)

2шт.

A8819

PIN - pivot, seat channel

1шт.

A8821

COVER - PTO and hydraulic pump housing, top (Replaces 6397A cover)

1шт.

1/2" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER

3шт.

1/2" X 2-1/4" N.C. HEX. BOLT W/LOCKWASHER

1шт.

1" SQ. HD. PIPE PLUG

1шт.

A8822

ROD - PTO clutch hand control (Replaces O9537AB rod on tractors with PTO)

1шт.

1/8" X 1" COTTER PIN

1шт.

A9344

STUD - hydraulic valve hand lever (Replaces O8578AB1 stud on tractors with hydraulic unit)

1шт.

A10417

BRACKET - seat channel and throttle lever (For diesel tractors) See A8816

1шт.

5/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER

2шт.

3/4" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER

1шт.

5/8" PLAIN WASHER (Spacer under bracket)

2шт.

6249A

NUT - hand wheel, to adjust seat mounting

1шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

1/2" N.F. LIGHT CASTELLATED NUT

1шт.

3/32" X 7/8" COTTER PIN

2шт.

O6935AB

X

BUMPER - seat support

2шт.

NO. 10 X 3/4" RHD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O9585AB

X

LOCK - for A7063 and A8819 pins

2шт.

O9586AB

X

SNAP RING - retaining, seat channel pivot pin

1шт.

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

O9598AB

X

BOLT - pivot, seat mounting

1шт.

1/2" N.F. HEX. JAM NUT W/LOCKWASHER

1шт.

O9599AB

X

"E" RING - retaining, for O9598AB pivot bolt

1шт.

O9602AB

X

DISC - friction, for torsion spring assembly

2шт.

O9608AB

X

RING - retaining, for A7063 and A7064 link pins

3шт.

O9609AB

CUSHION - seat

1шт.

4439AA

SEAT - operators

1шт.

1/2" X 1-1/2" N.F. HEX. HD. BOLT W/NUT

2шт.

1/2" EXT.-INT. TOOTH SHAKEPROOF LOCKWASHER #4024-3200

2шт.
