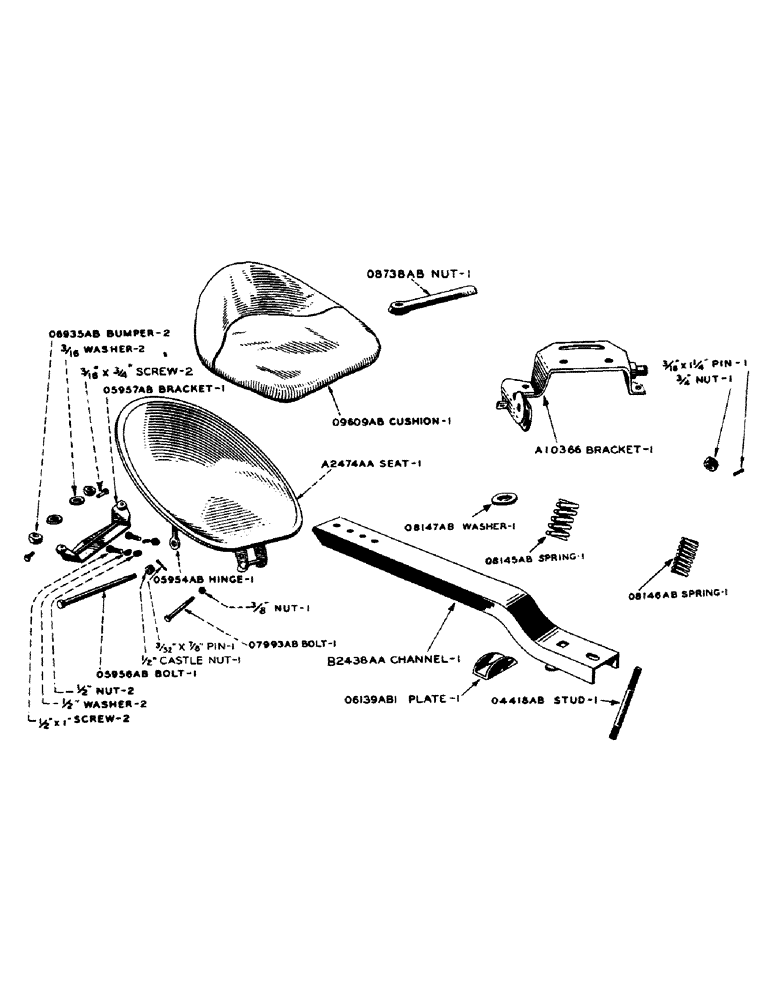

Запчасти Case IH 600-SERIES (112) - OPERATORS SEAT (09) - CHASSIS

A10366

BRACKET - operators seat mounting, with throttle hand lever support and PTO clutch hand lever mounting pin (For diesel tractors) See 4394AA

1шт.

5/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

5/8" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O4418AB

STUD - seat spring

1шт.

3/16" X 1-1/4" COTTER PIN

1шт.

3/4" N.F. HEX. NUT

1шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

O5957AB

BRACKET - seat rear support

1шт.

1/2" X 1" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O6139AB1

PLATE - seat channel bearing

1шт.

O6935AB

X

BUMPER - seat rear support

2шт.

#10-3/4" RD. HD. MACH. SCREW W/NUT AND LOCKWASHER

2шт.

O7993AB

BOLT - seat front support bracket

1шт.

3/8" N.F. CASTLE NUT, light

1шт.

3/32" X 7/8" COTTER PIN

1шт.

O8145AB

SPRING

- seat, outside

1шт.

O8146AB

SPRING - seat, inside

1шт.

O8147AB

WASHER

- seat spring retainer

1шт.

O8738AB

NUT - seat mounting handle

1шт.

1/2" X 1" MACH. BOLT, less nut

1шт.

1/2" PLAIN WASHER

1шт.

O9609AB

CUSHION - seat

1шт.

B2438AA

CHANNEL - seat

1шт.

A2474AA

SEAT - operators

1шт.

4394AA

BRACKET - seat mounting w/spark and throttle hand lever support and PTO hand lever mounting pin (For LP-Gas tractors) See A10366

1шт.

5/16" X 2-1/4" N.F. HEX. BOLT W/DBL. NUT

1шт.

1/2" X 1" N.C. MACH. BOLT

1шт.

5/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER

1шт.

5/8" X 1-1/2" N.C. HEX. BOLT W/LOCKWASHER

1шт.
