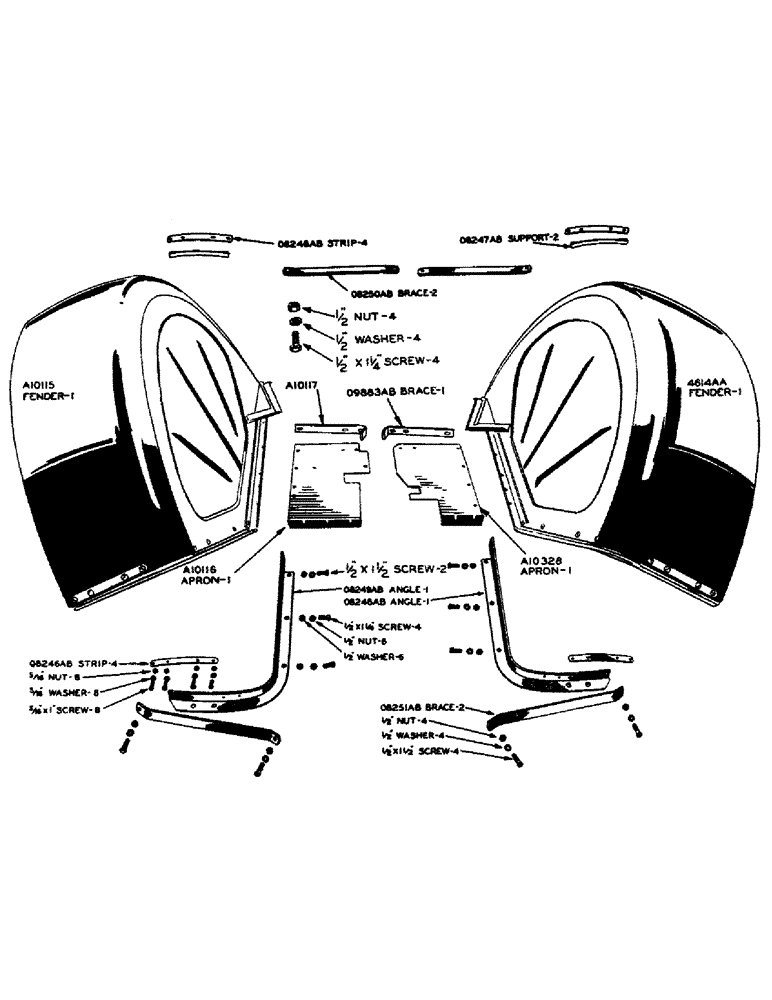

Запчасти Case IH 600-SERIES (094) - FENDERS (09) - CHASSIS

A10112

CONNECTING LINK

ANGLE - battery support inside, L.H.

1шт.

A10115

SPARE PART

FENDER - L.H. (Includes 2 - O80246AB, 1 - O8247AB and 1 - O8249AB

1шт.

5/16" X 1" N.C. TRUSS HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A10116

LINK

APRON - fender, L.H.

1шт.

5/16" X 3/4" N.C. CARR. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

5/16" X 7/8" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A10117

BRACE - fender apron, L.H.

1шт.

5/16" X 7/8" N.F. HEX. HD. CAP SCREW W/HEX. NUT

2шт.

5/16" #4018 - 24 SHAKEPROOF INTERNAL-EXTERNAL LOCKWASHER

2шт.

A10328

APRON - fender, R.H.

1шт.

5/16" X 7/8" N.F. HEX. HD. CAP SCREW W/HEX. NUT

1шт.

5/16" X 3/4" N.C. CARR. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

O8246AB

STRIP - fender reinforcement

4шт.

O8247AB

SUPPORT - fender, front

2шт.

O8248AB

ANGLE - R.H. fender rear support

1шт.

1/2" X 1-1/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O8249AB

ANGLE - L.H. fender rear support

1шт.

O8250AB

BRACE - fender, front

2шт.

1/2" X 1-1/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

4шт.

O8251AB

BRACE - fender, rear

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

4шт.

O9883AB

BRACE - fender apron, R.H.

1шт.

5/16" X 7/8" N.F. HEX. HD. CAP SCREW W/HEX. NUT

1шт.

5/16" #4018-24 SHAKEPROOF INTERNAL-EXTERNAL TOOTH LOCKWASHER

1шт.

4614AA

FENDER - R.H. (Includes 2 - O8246AB, 1 - O8247AB and 1 - O8248AB)

1шт.

5/16" X 1" TRUSS HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.
