(129) - HYDRAULIC CONTROL UNIT, BRACKET FOR BREAK-AWAY COUPLING

Запчасти Case IH 600-SERIES (129) - HYDRAULIC CONTROL UNIT, BRACKET FOR BREAK-AWAY COUPLING (08) - HYDRAULICS

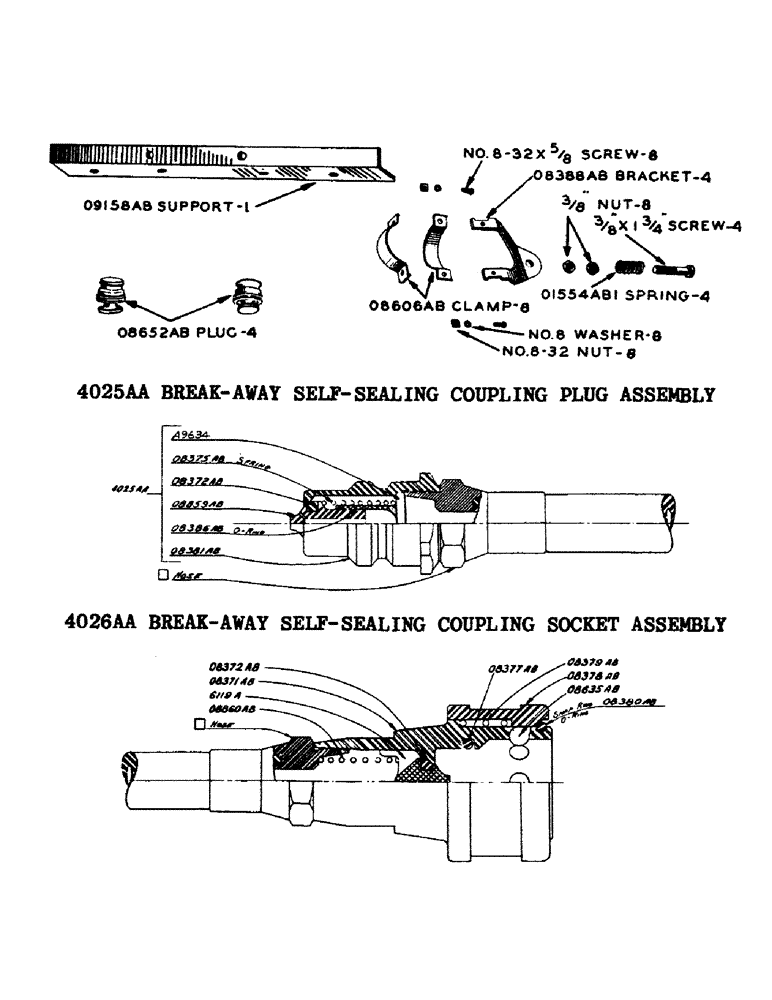

Схема запчастей Case IH 600-SERIES - (129) - HYDRAULIC CONTROL UNIT, BRACKET FOR BREAK-AWAY COUPLING (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

O1554AB1

X

SPRING - mounting bracket

4шт.

O8388AB

X

BRACKET - break-away coupling mounting

4шт.

3/8" X 1-3/4" N.F. HEX. HD. CAP SCREW W/DBL. HEX. JAM NUT

4шт.

O8606AB

X

CLAMP - break-away coupling mounting

8шт.

NO. 8 - 32 x 5/8" rd. hd. mach. screw w/nut and lockwasher

8шт.

O8652AB

X

PLUG - dust, break-away coupling

4шт.

O9158AB

SUPPORT - break-away coupling mounting bracket

1шт.

3/8" X 1" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.
