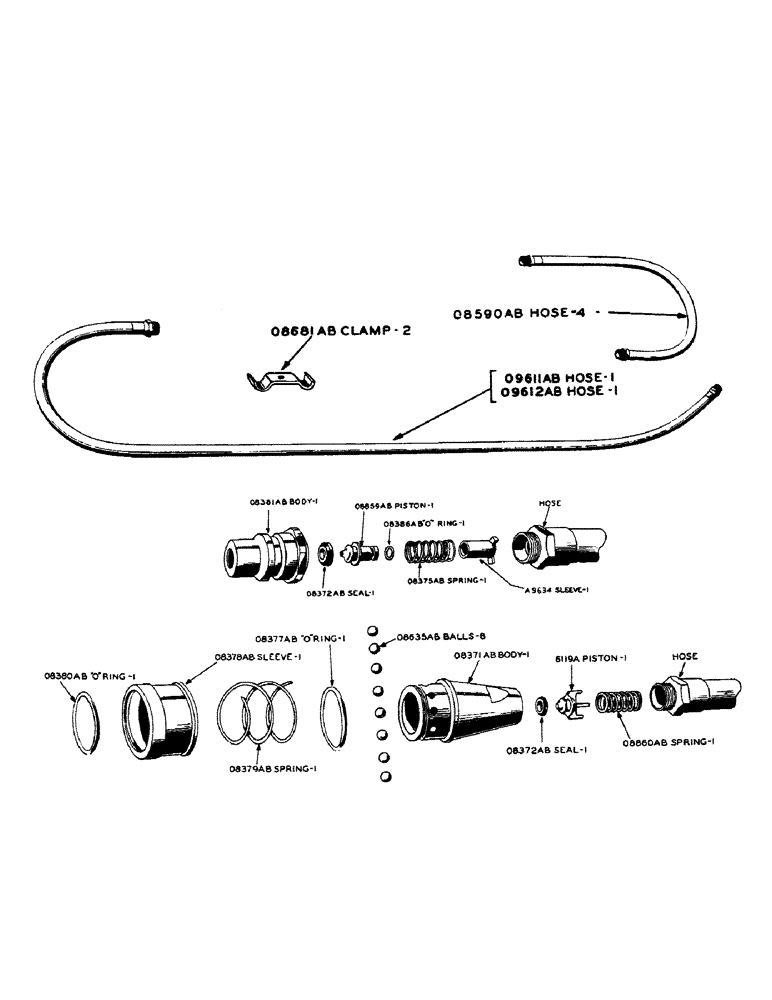

Запчасти Case IH 600-SERIES (128) - HYDRAULIC CONTROL UNIT, HOSES FOR PORTABLE CYLINDER (08) - HYDRAULICS

O8590AB

HOSE - hydraulic valve to coupling plug (1/2" I.D. x 18" long)

4шт.

O8681AB

X

CLAMP - double hose

2шт.

5/16" X 3/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

1шт.

O9611AB

X

HOSE - coupling to portable cylinder, front (1/2" I.D. x 92" long)

1шт.

O9612AB

HOSE - coupling to portable cylinder, rear (1/2" I.D. x 104" long)

1шт.

51200858

SLEEVE

- coupling plug piston, 4025AA break-away, self sealing

1шт.

O8372AB

X

SEAL - coupling piston, 4025AA break-away, self sealing plug

1шт.

O8375AB

X

SPRING - coupling piston, 4025AA break-away, self sealing plug

1шт.

O8381AB

X

BODY - coupling plug male, 4025AA break-away, self sealing

1шт.

O8386AB

X

"O" RING - coupling plug piston sleeve, 4025AA break-away, self sealing

1шт.

O8859AB

X

PISTON - coupling plug, 4025AA break-away, self sealing

1шт.

4025AA

X

PLUG - break-away self sealing (Consists of above items) 4025AA coupling

2шт.

6119A

X

PISTON - coupling socket, 4026AA break-away, self sealing plug

1шт.

O8371AB

BODY - female coupling socket, 4026AA break-away, self sealing plug

1шт.

O8372AB

X

SEAL - coupling piston, 4026AA break-away, self sealing plug

1шт.

O8377AB

X

"O" RING - coupling socket body, 4026AA break-away, self sealing plug

1шт.

O8378AB

X

SLEEVE - coupling socket body ball retaining, 4026AA break-away, self sealing plug

1шт.

O8379AB

X

SPRING - coupling socket body ball sleeve, 4026AA break-away, self sealing plug

1шт.

O8380AB

X

SNAP RING - coupling socket rubber, 4026AA break-away, self sealing plug

1шт.

O8635AB

X

BALL - coupling socket locking, 4026AA break-away, self sealing plug

8шт.

O8860AB

X

SPRING - coupling socket piston, 4026AA break-away, self sealing plug

1шт.

4026AA

X

SOCKET - break-away self sealing coupling (Consists of above items) 4026AA

4шт.
