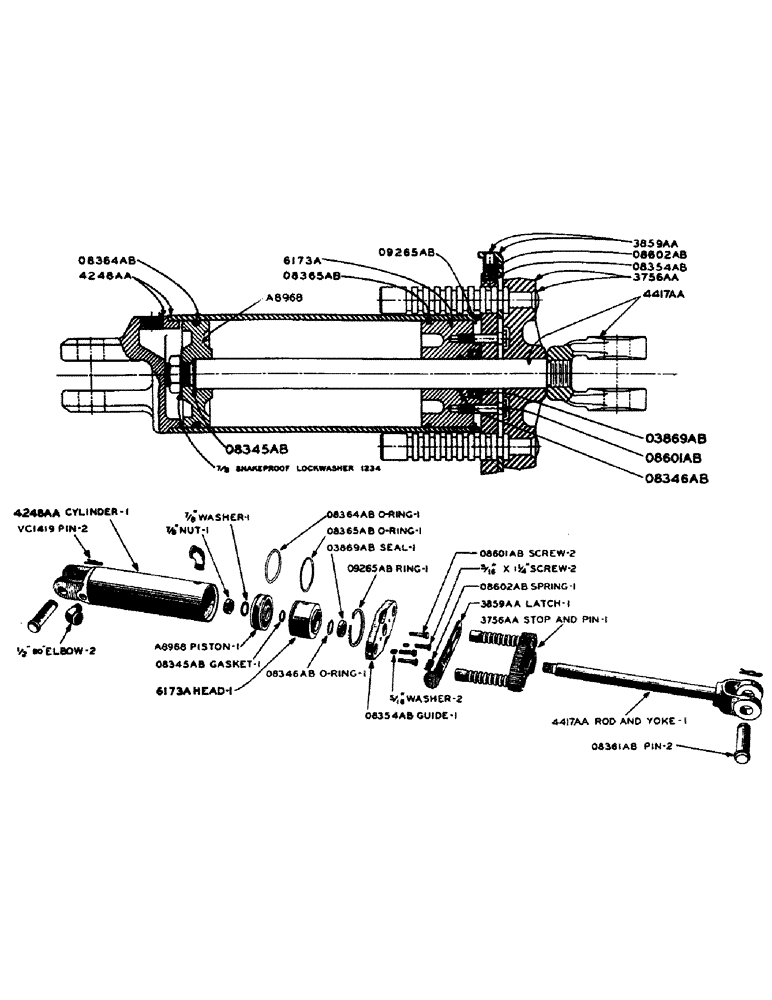

Запчасти Case IH 600-SERIES (127) - HYDRAULIC CONTROL UNIT, PORTABLE CYLINDER, 4" X 8" (08) - HYDRAULICS

A8968

PISTON

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

6046A

CAP - cylinder (Use 4248AA)

1шт.

6173A

HEAD - cylinder inner

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8345AB

X

GASKET - piston

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

5/16" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8361AB

X

PIN - cylinder yoke

2шт.

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8365AB

X

"O" RING - cylinder head

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8601AB

X

SCREW - limit stop latch

2шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

5/16" SHAKEPROOF LOCKWASHER NO. 1218-4

2шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O8602AB

X

SPRING - limit stop latch

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

O9265AB

X

SNAP RING - cylinder collar

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

VC1419

X

SPRING - cylinder yoke pin retainer

2шт.

3756AA

STOP - limit, with pins for cylinder

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

B3847AA

CYLINDER - 4" x 8" hydraulic portable, complete, consists of: all parts shown except P/N's 6046A, O8361AB and VC1419

1шт.

3859AA

X

LATCH - cylinder limit stop

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

4248AA

CYLINDER AND CAP

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

1/2" - 90 degree street elbow

2шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

4417AA

ROD AND YOKE - piston

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

7/8" N.F. LIGHT HEX. NUT

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.

7/8" SHAKEPROOF LOCKWASHER, type 12, no. 1234

1шт.

Part of 4" x 8" Hydraulic Portable Cylinder Complete P/N B3847AA

1шт.
