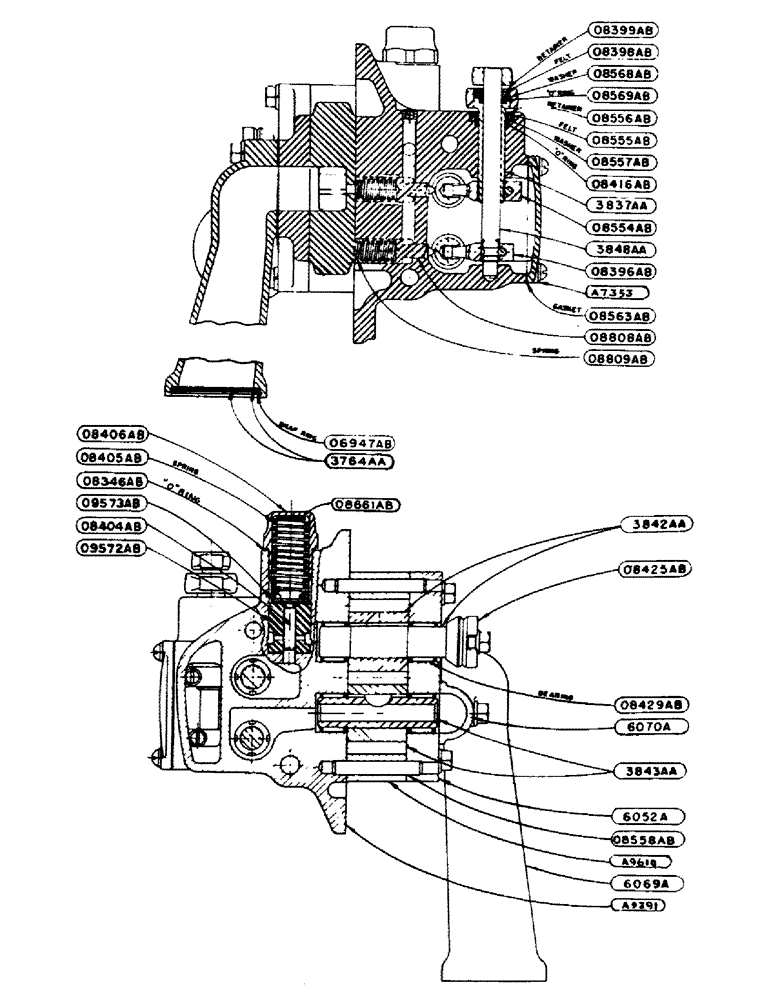

Запчасти Case IH 600-SERIES (123) - HYDRAULIC CONTROL UNIT, HYDRAULIC VALVE AND PUMP ASSEMBLY (08) - HYDRAULICS

A7353

CAP

- hydraulic dual valve body

1шт.

1/4" X 3/4" N.C. RD. HD. MACH. SCREW W/LOCKWASHER

4шт.

A7478

GASKET

- float valve opening cap

1шт.

A8732

CAP

- hydraulic float opening

1шт.

A9391

BODY - hydraulic valve, 15 GPM (Consists of: 1 - 6506A, 4 - O8409AB, 1 - O9572AB and 5 - 1/8" Allen head pipe plugs) See A9615

1шт.

A9612

SPARE PART

BODY - (Use A9615)

1шт.

A9615

SUPPORT

BODY - hydraulic valve, 20 GPM (Consists of: 1 - A9612, 4 - O8409AB, 1 - O9572AB and 5 - 1/8" Allen head pipe plugs) See A9391)

1шт.

A9778

X

DUAL VALVE AND PUMP ASSEMBLY (20 GPM) See 5006AA

1шт.

6072A

X

HEAD - R.H., hydraulic valve

1шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

3/8" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

3шт.

6073A

HEAD - L.H., hydraulic valve

1шт.

3/8" X 2-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

6506A

WHEEL (STEERING)

BODY - (Use A9391)

1шт.

O7210AB

X

BALL - 1/2" dia., for hydraulic valve return

4шт.

O8296AB

X

BALL - valve outlet (5/8" dia.)

4шт.

O8377AB

X

"O" RING - outlet ball check

4шт.

O8394AB

X

SPOOL - hydraulic valve

2шт.

O8396AB

X

ARM - spool shifter, small (See O8554AB)

1шт.

1/4" X 3/4" N.F. FILLISTER HD. MACH. SCREW W/LOCKWASHER

1шт.

O8398AB

X

FELT WASHER - spool shifter shaft, upper (See O8555AB)

1шт.

O8399AB

X

RETAINER - spool shifter shaft upper felt washer (See O8556AB)

1шт.

O8409AB

X

SEAT - outlet ball check

4шт.

O8410AB

X

GUIDE - outlet ball check spring

4шт.

O8411AB

X

SPOOL - auxiliary

4шт.

O8414AB

X

SPRING - return ball check

4шт.

O8416AB

X

"O" RING - spool shifter shaft, lower

1шт.

O8420AB

X

GASKET - swivel angle adapter

4шт.

O8421AB

SPRING

- relief valve ball

2шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8554AB

X

ARM - spool shifter, large (See O8396AB)

1шт.

1/4" X 1" N.F. FILLISTER HD. MACH. SCREW W/LOCKWASHER

1шт.

O8555AB

X

FELT WASHER - spool shifter shaft, lower (See O8398AB)

1шт.

O8556AB

X

RETAINER - spool shifter shaft lower felt washer (See O8399AB)

1шт.

O8557AB

X

WASHER - spool shifter shaft sear for O8555AB felt

1шт.

O8563AB

GASKET - body cap

1шт.

O8564AB

X

GASKET - valve head, R.H.

1шт.

O8565AB

X

GASKET - valve head, L.H.

1шт.

O8568AB

X

WASHER - spool shifter seal, for O8398AB felt

1шт.

O8569AB

X

"O" RING - spool shifter shaft, upper

1шт.

O8635AB

X

BALL - relief valve (1/4" dia.)

2шт.

O8734AB

X

SPRING - outlet ball check

4шт.

O8808AB

PLUNGER - spool

2шт.

O8809AB

X

SPRING - spool plunger

2шт.

3769AA

X

ADAPTER - swivel angle

3шт.

3837AA

X

LEVER AND SHAFT - spool shifter, lower

1шт.

3848AA

LEVER

AND SHAFT - spool shifter, upper

1шт.

5006AA

DUAL VALVE AND PUMP ASSEMBLY (15GPM) See A9778

1шт.
