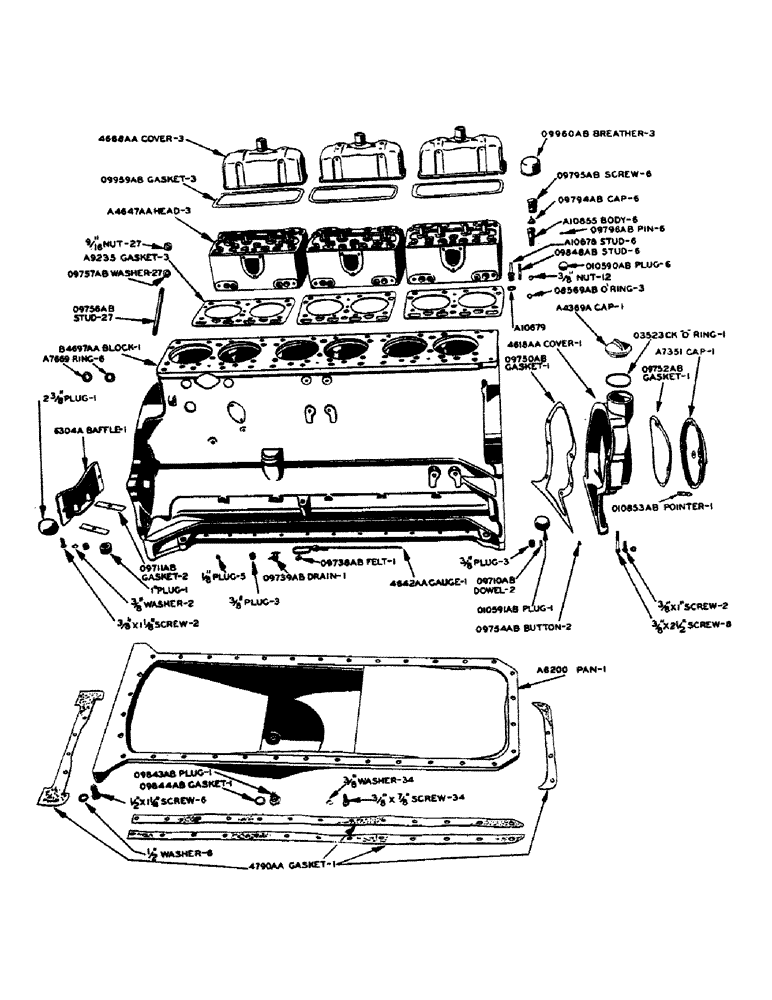

Запчасти Case IH 600-SERIES (004) - POWRCEL DIESEL ENGINE, CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN, CYLINDER HEAD (02) - ENGINE

A7669

RING

RUBBER RING - used with A9235 gasket

6шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

3шт.

A10678

STUD

- nozzle holder, large, (7/8" across flats for wrench) See O9849AB

6шт.

A10679

GASKET

- for A10678 nozzle holder stud

6шт.

A6320A

HEAD - cylinder (Use A4647AA)

1шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

3шт.

O9756AB

X

STUD - cylinder head

27шт.

9/16" N.F. HEX. LIGHT NUT

27шт.

O9757AB

X

WASHER - cylinder head stud

27шт.

O9848AB

X

STUD - nozzle holder, small

6шт.

3/8" N.F. HEX. LIGHT NUT

6шт.

O9849AB

STUD - nozzle holder, large (3/4" across flats for wrench) See A10678

6шт.

3/8" N.F. HEX. LIGHT NUT

6шт.

O9959AB

X

GASKET - cylinder head cover

3шт.

O9960AB

X

BREATHER - cylinder head cover

3шт.

O10590AB

X

WELCH PLUG - for cylinder head (Cadmium plated)

6шт.

A4647AA

HEAD - cylinder, with valve guides and valve inserts

3шт.

4668AA

COVER - cylinder head

3шт.

A10855

X

BODY - powrcel

6шт.

O9794AB

X

CAP - powrcel

6шт.

O9795AB

X

SCREW - powrcel clamp

6шт.

O9796AB

PIN - locating powrcel body (1/8" dia. x 5/16" long)

6шт.

A7509

PLUG

WELCH PLUG - for cylinder block (1-3/8" dia.)

1шт.

B6300A

BLOCK - cylinder (Use B4697AA)

1шт.

O9738AB

FELT WASHER - lube oil level dipstick, cylinder block

1шт.

O9739AB

X

VALVE - water drain for cylinder block

1шт.

O10591AB

X

WELCH PLUG - for cylinder block (Cadmium plated)

1шт.

VT3399

PLUG - expansion, cylinder block

1шт.

4641AA

CONDUIT - fastens along cylinder block for headlight wire, generator, wire and temperature gauge tube

1шт.

5/16" X 1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, cylinder block

2шт.

4642AA

X

DIPSTICK - lube oil level, with felt washer, cylinder block

1шт.

B4697AA

BLOCK - cylinder, with bearing caps and cam shaft bushings

1шт.

1/8" SLOTTED HD. PIPE PLUG, cylinder block

4шт.

3/8" SOCKET PIPE PLUG, cylinder block

3шт.

1" SOCKET PIPE PLUG, cylinder block

1шт.

2-3/8" WELCH PLUG, cylinder block

1шт.

1/4" CTSK. HEADLESS SET SCREW, cylinder block

1шт.

A8200

PAN - oil

1шт.

3/8" X 7/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, oil pan

28шт.

1/2" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, oil pan

6шт.

6304A

BAFFLE - engine oil, rear, pan

1шт.

O9711AB

X

GASKET - for 6304A oil baffle, pan

2шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

4790AA

X

GASKET KIT - oil pan

1шт.

A7351

CAP - timing gear cover, with thrust button

1шт.

3/8" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, timing gear cover

3шт.

3/8" X 3/4" N.C. FINISHED HEX. BOLT W/LOCKWASHER, timing gear cover

1шт.

A4369A

CAP - oil filter, timing gear cover

1шт.

6316A

COVER - timing gear (Use 4618AA)

1шт.

6469A

CAP - timing gear cover (Use A7351)

1шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing gear cover

1шт.

1/4" X 1/2" N.C. FINISHED HEX. BOLT, timing gear cover

2шт.

1/4" NO. 4014-20 SHAKEPROOF EXTERNAL-INTERNAL TOOTH LOCKWASHER, timing gear cover

2шт.

O3523CK

X

"O" RING - for A4369A cap, timing gear cover

1шт.

4618AA

COVER - timing gear, with thrust button

1шт.

3/8" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, timing gear cover

2шт.

3/8" X 2-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, timing gear cover

8шт.

A20148

GASKET

KIT valve grind, timing gear cover

1шт.

A11160

1шт.

Another block used, not a sub

1шт.

A23664

1шт.
