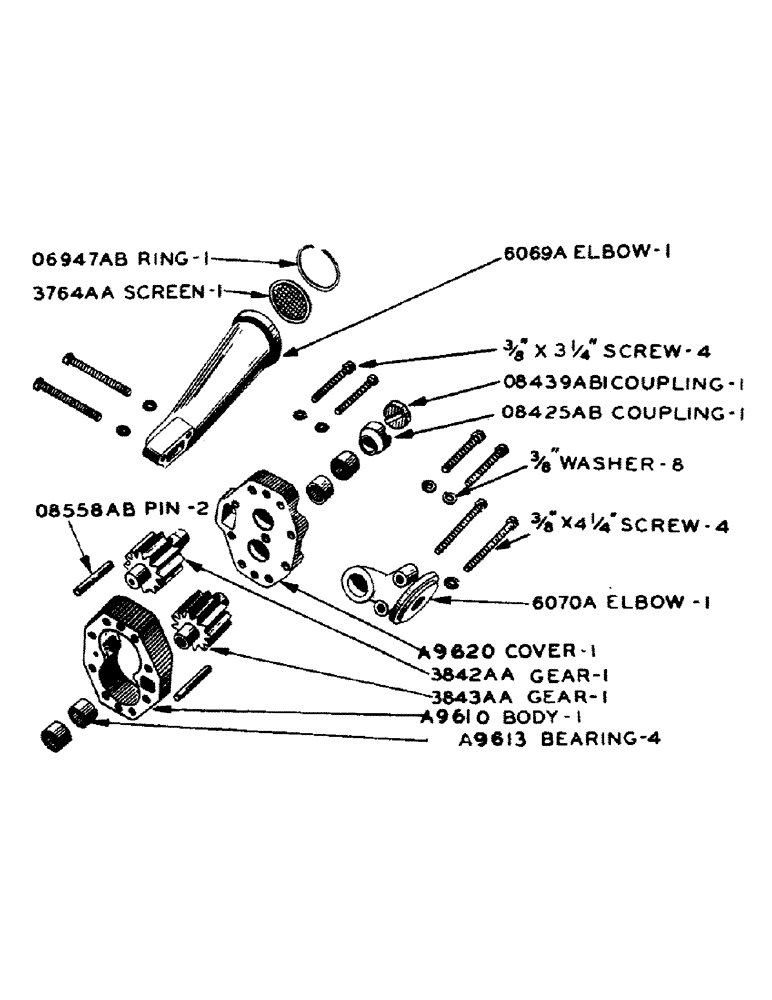

Запчасти Case IH 600-SERIES (121) - HYDRAULIC PUMP, 20 GALLON PER MINUTER CAPACITY (08) - HYDRAULICS

A9610

BODY

- hydraulic pump

1шт.

A9613

NEEDLE BEARING,0.875" ID x 1.375" OD x 0.75"

BEARING - (BCA SV7173) hydraulic pump shaft

4шт.

A9620

COVER

- hydraulic pump body

1шт.

3/8" X 3-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

6069A

ELBOW - hydraulic pump inlet

1шт.

3/4" X 4-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

6070A

ELBOW - hydraulic pump filter

1шт.

3/8" X 4-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8439AB1

X

COUPLING - hydraulic pump drive

1шт.

O8558AB

PIN - dowel, hydraulic pump body

2шт.

O8901AB1

PLATE - oil deflector, hydraulic pump outlet

1шт.

3764AA

X

SCREEN ASSEBMLY - hydraulic pump intake

1шт.

3842AA

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

3843AA

IDLER GEAR AND SHAFT - hydraulic pump

1шт.
