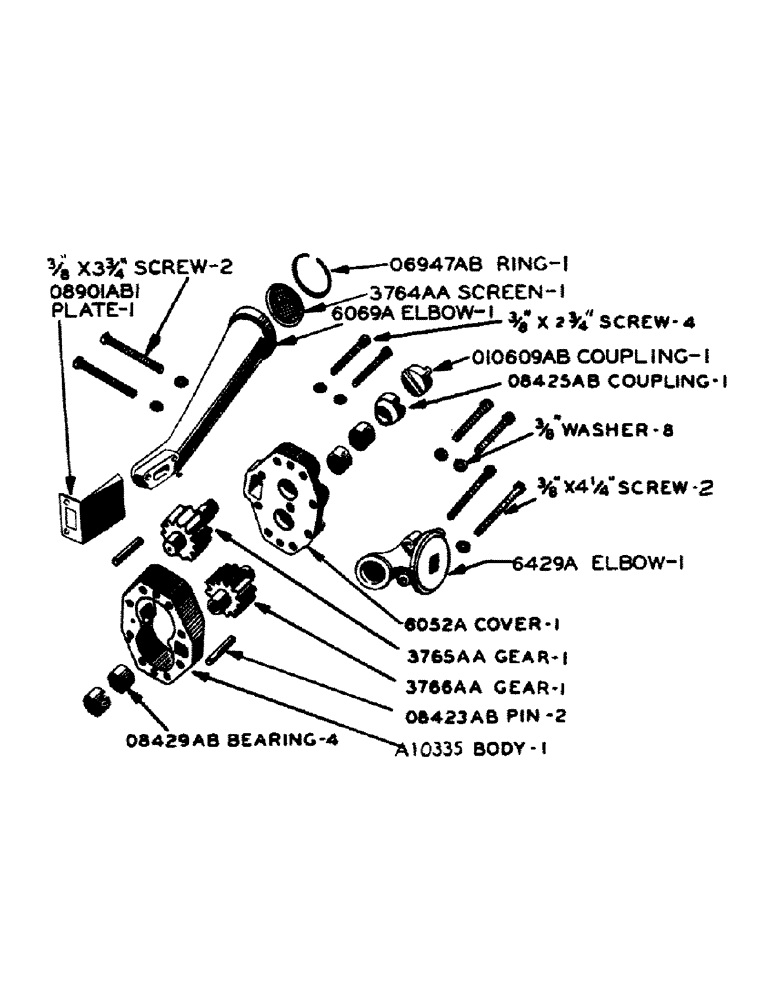

Запчасти Case IH 600-SERIES (120) - HYDRAULIC PUMP, 15 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

A10335

BODY

- hydraulic pump

1шт.

6052A

COVER - hydraulic pump body

1шт.

3/8" X 2-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

6069A

ELBOW - hydraulic pump inlet

1шт.

3/8" X 3-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

6429A

ELBOW - hydraulic pump filter

1шт.

3/8" X 4-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8423AB

PIN - hydraulic pump body dowel

2шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - (Torrington no. GB-1412X) hydraulic pump shaft

4шт.

O8901AB1

PLATE - oil deflector

1шт.

O10609AB

X

COUPLING - hydraulic pump drive

1шт.

3674AA

SCREEN ASSEMBLY - hydraulic pump intake

1шт.

3765AA

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

3766AA

IDLER GEAR AND SHAFT - hydraulic pump

1шт.
