Запчасти Case IH 600-SERIES (118) - HYDRAULIC CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE (08) - HYDRAULICS

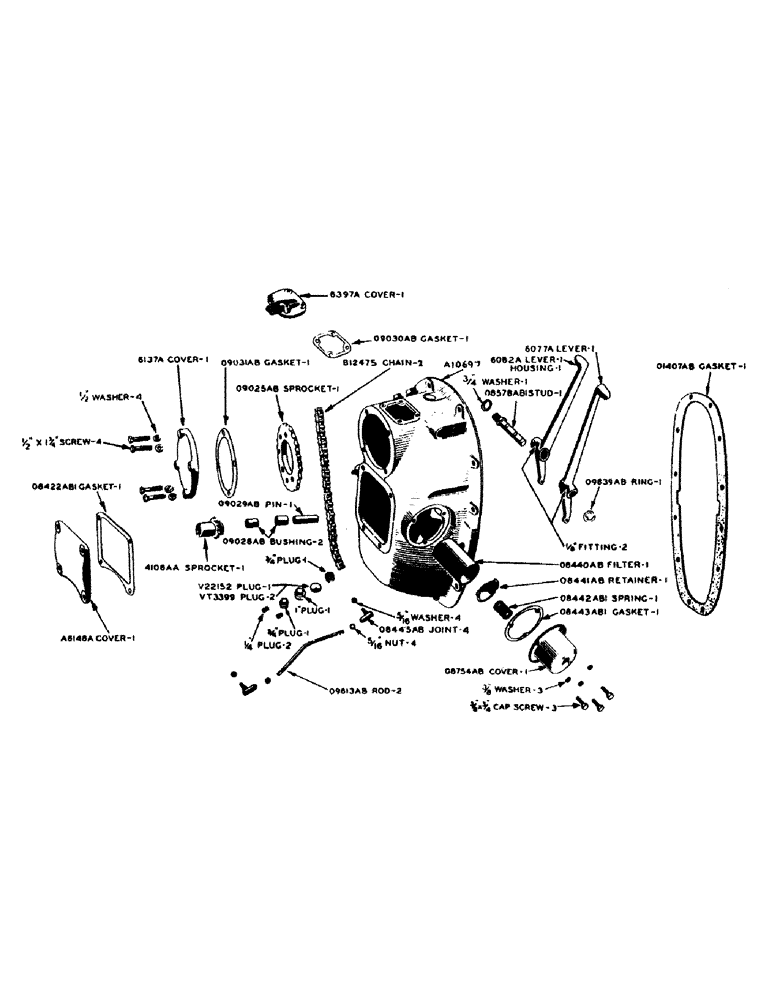

Схема запчастей Case IH 600-SERIES - (118) - HYDRAULIC CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

A8821

COVER - main housing top (For use with Case "Comfort" seat only) See 6397A

1шт.

A9344

STUD - hydraulic valve hand lever (For use with Case "Comfort" seat only) See O8578AB1

1шт.

A9955

HOUSING (Use A10697)

1шт.

A10697

HOUSING - PTO and hydraulic pump (Consists of: 1 - A9955 housing, 1 - O9029AB pin, 2-1/4", 1 - 3/4" and 1 -1" sq. hd. pipe plug, 1 - 3/4" Lisle magnetic no. 403KQ sq. hd. pipe plug, 1 - V22152 and 2 - VT3399 Welch plugs

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

11шт.

1/2" X 2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

B12475

CHAIN (AG)

CHAIN - contains 20 #50 5/8" pitch roller chain

2шт.

B12505

LINK

- connecting, #50 5/8" pitch roller chain

1шт.

B12506

LINK

- offset, #50 5/8" pitch roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, #50 5/8" pitch roller chain

1шт.

6077A

LEVER - valve control hand, outer

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

6082A

LEVER - valve control hand, inner

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

6137A

COVER - for opening, when PTO clutch is not used

1шт.

1/2" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A6148A

COVER - for opening when hydraulic valve is not used

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

6397A

COVER - main housing top (Regular) See A8821

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

3шт.

1/2" X 2-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O1407AB

X

GASKET - hydraulic main housing

1шт.

O8422AB1

X

GASKET - for A6148A cover

1шт.

O8435AB

X

CHAIN - hydraulic pump drive (Use 2 - B12475)

1шт.

O8440AB

X

FILTER - hydraulic pump oil

1шт.

O8441AB

X

RETAINER - hydraulic pump filter

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8445AB

X

BALL JOINT - hydraulic valve control rod

4шт.

5/16" STD. LOCKWASHER

4шт.

O8578AB1

STUD - valve control hand lever (See A9344)

1шт.

3/4" STD. LOCKWASHER

1шт.

O8754AB

COVER - hydraulic pump filter

1шт.

3/8" X 3/4" N.C. HEX. HD. CAP SCREW

3шт.

3/8" INTERNAL TOOTH SHAKEPROOF LOCKWASHER NO. 1220

3шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

3/8" X 3/4" N.F. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

O9028AB

X

BUSHING - for 4106AA sprocket

2шт.

O9029AB

X

PIN - hydraulic pump driven sprocket bearing

1шт.

O9030AB

X

GASKET - main housing top cover

1шт.

O9031AB

X

GASKET - PTO clutch opening cover

1шт.

O9613AB

ROD - hydraulic valve control

2шт.

5/16" N.F. HEX. JAM NUT

4шт.

O9639AB

X

"E" RING - for O8578AB1, or A9344 stud

1шт.

VT3399

PLUG - Welch, hydraulic pump housing (1" dia.)

2шт.

V22152

CAP

PLUG - Welch, hydraulic pump housing (1-1/2" dia.)

1шт.

4106AA

X

SPROCKET - driven, with bushing, hydraulic pump

1шт.

Выбрано товаров: 47
