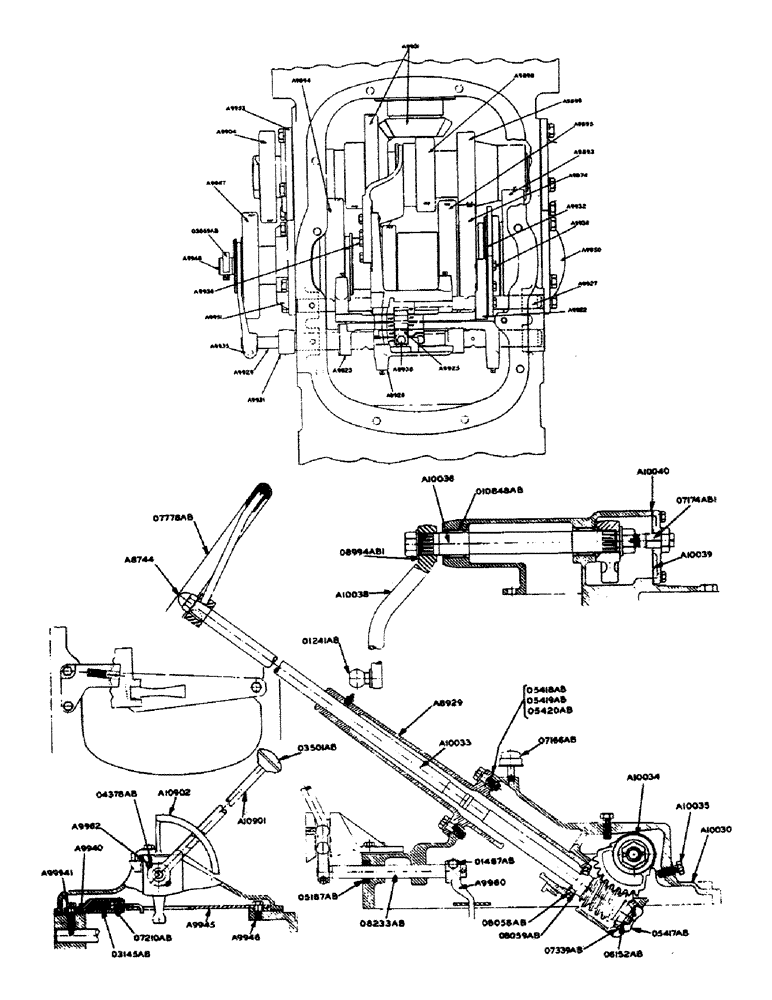

Запчасти Case IH 600-SERIES (109) - GEAR SHIFT ASSEMBLY (06) - POWER TRAIN

A7032

SPRING

- gear shift hand lever lock plunger

1шт.

A9922

SHIFTER - first and fourth gear

1шт.

A9923

SHIFTING UNIT

SHIFTER - second and reverse gear

1шт.

A9924

SHIFTER - third gear

1шт.

A9925

SHIFTER - fifth gear

1шт.

A9926

SHIFTER - sixth gear

1шт.

A9927

SHAFT - first, third and fourth gear shifter

1шт.

A9929

SHAFT - fifth gear shifter

1шт.

A9931

SHAFT - second, sixth and reverse gear shifter

1шт.

A9932

FORK - first and fourth gear

1шт.

A9933

FORK - second, sixth and reverse speed shifter

2шт.

A9934

FORK - third gear shifter

1шт.

A9935

FORK - fifth gear shifter

1шт.

7/16" X 1-1/4" N.F. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

A9936

SCREW - third, first and fourth gear shifter fork

7шт.

A9937

SCREW - sixth, second and reverse gear shifter fork

4шт.

A9938

SCREW - fifth gear shifter fork

2шт.

A9939

SHIM - fourth gear shifter (As req.)

8шт.

A9940

HOUSING - interlock ball

1шт.

A9941

CAP SCREW - interlock ball housing

2шт.

A9945

PLATE - transmission shift selector and lockout grille

1шт.

A9946

CAP SCREW - gear shift selector plate

1шт.

A9959

X

BRACKET - gear shift hand lever (Use 1 - A7032, 1 - A10901, 1 - A10902 and 1 - A10903)

1шт.

A9960

ARM - gear shifter

1шт.

A9961

LEVER - gear shift (Use A10901)

1шт.

A9962

PIN - gear shift, hand lever

1шт.

A10030

COVER - transmission case top

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW

6шт.

1/2" X 1" N.C. HEX. HD. CAP SCREW

1шт.

1/2" X 2-1/2" N.C. HEX. HD. CAP SCREW

1шт.

A10031

GASKET

- transmission case top cover

1шт.

A10039

COVER - steering gear, on transmission case top cover

1шт.

3/8" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A10040

GASKET - steering gear cover, on transmission case top cover

1шт.

A10901

LEVER - gear shift hand

1шт.

A10902

BRACKET - gear shift hand lever

1шт.

3/8" X 1" N.C. HEX. BOLT

2шт.

3/8" 4020-26 SHAKEPROOF LOCKWASHER

2шт.

A10903

PLUNGER

- lock, gear shift hand lever

1шт.

A11219

SPRING - for A9922, A9923, A9924, A9925 and A9926 shifters

5шт.

F40034

KEY

- Woodruff, gear shift hand lever shaft

1шт.

O995AB

PLUNGER - gear shifter

5шт.

3/32" X 1/2" COTTER PIN

5шт.

O1322AB

PLATE - shifter shaft end

2шт.

O1323AB1

X

GASKET - shifter end plate

2шт.

O1467AB

BOLT - gear shifter arm

1шт.

3/8" N.F. LIGHT, castle nut

1шт.

3/32" X 7/8" COTTER PIN

1шт.

O3145AB

X

SPRING - interlock ball housing

1шт.

O3501AB

X

BALL - gear shift hand lever

1шт.

O4378AB

SNAP RING - gear shifter hand lever pin

2шт.

O5187AB

X

OIL SEAL - gear shifter shaft

1шт.

O7166AB

X

BREATHER - transmission

1шт.

O7210AB

X

BALL - (1/2" steel) interlock housing

1шт.

O8223AB

SHAFT - gear shift hand lever

1шт.

O2103FH

X

ROLL PIN - (1/8" x 3/8") A9940 housing

1шт.
