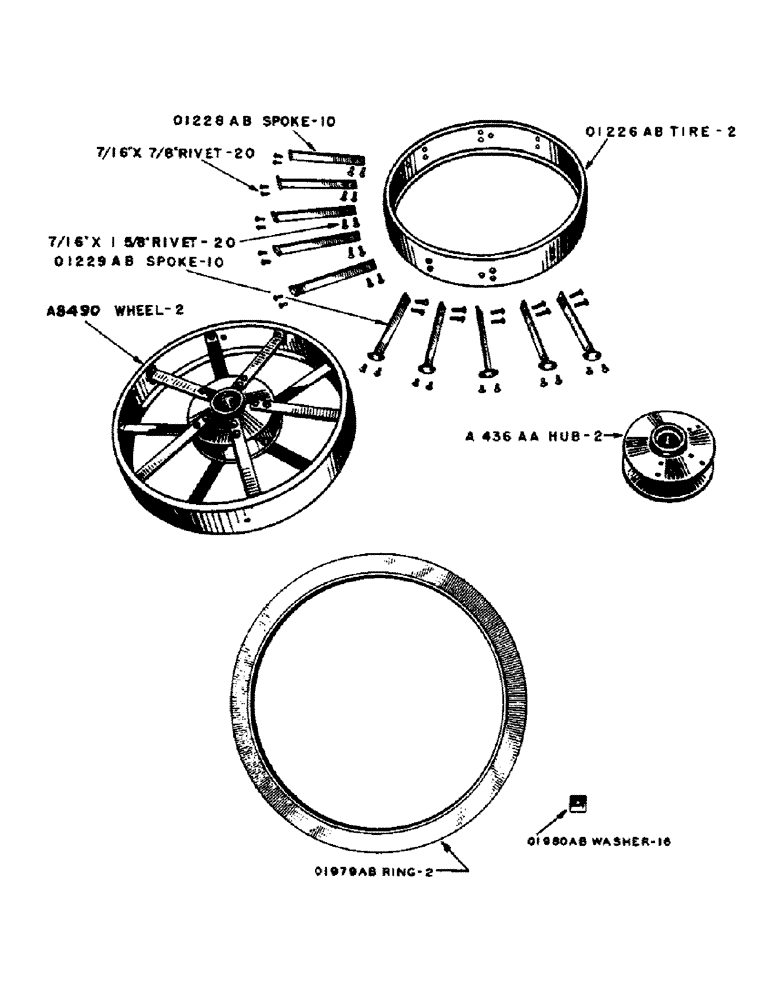

Запчасти Case IH 600-SERIES (099) - FRONT WHEEL, STEEL (06) - POWER TRAIN

A8490

WHEEL - front, with bearing cups

2шт.

4384A

X

CAP - front wheel hub

2шт.

A4496A

HUB - front wheel (Use A436AA)

1шт.

O1226AB

TIRE - front wheel, steel

2шт.

O1228AB

SPOKE - front wheel, steel

10шт.

7/16" X 7/8" RD. HD. RIVET

20шт.

7/16" X 1-5/8" RD. HD. RIVET

20шт.

O1229AB

SPOKE - FRONT WHEEL, inner

10шт.

7/16" X 7/8" RD. HD. RIVET

20шт.

7/16" X 1-5/8" RD. HD. RIVET

20шт.

O2879AB

X

CUP - (Timken #3720) front wheel inner bearing

2шт.

O2881AB

X

CUP - (Timken #2523) front wheel outer bearing

2шт.

A436AA

HUB - front wheel, with bearing cups (Consists of: 1 - A4496A, 1 - O2879AB and 1 - O2881AB) See A8490

2шт.

O1979AB

RING - (3") front wheel skid for 3" , steel

2шт.

1/2" X 1-1/2" MACH. BOLT W/HEX. NUT AND LOCKWASHER, 3" skid rings for steel front wheels

16шт.

O1980AB

WASHER - spacing, 3" front wheel skid ring

16шт.

67AA

RING - set of (2) skid, for front wheel (Machy. item) (Consists of: 2 - O1979AB, 16 - O1980AB washers and 16 - 1/2" x 1-1/2" mach. bolt w/hex. nut and lockwasher), for 3"

1шт.
