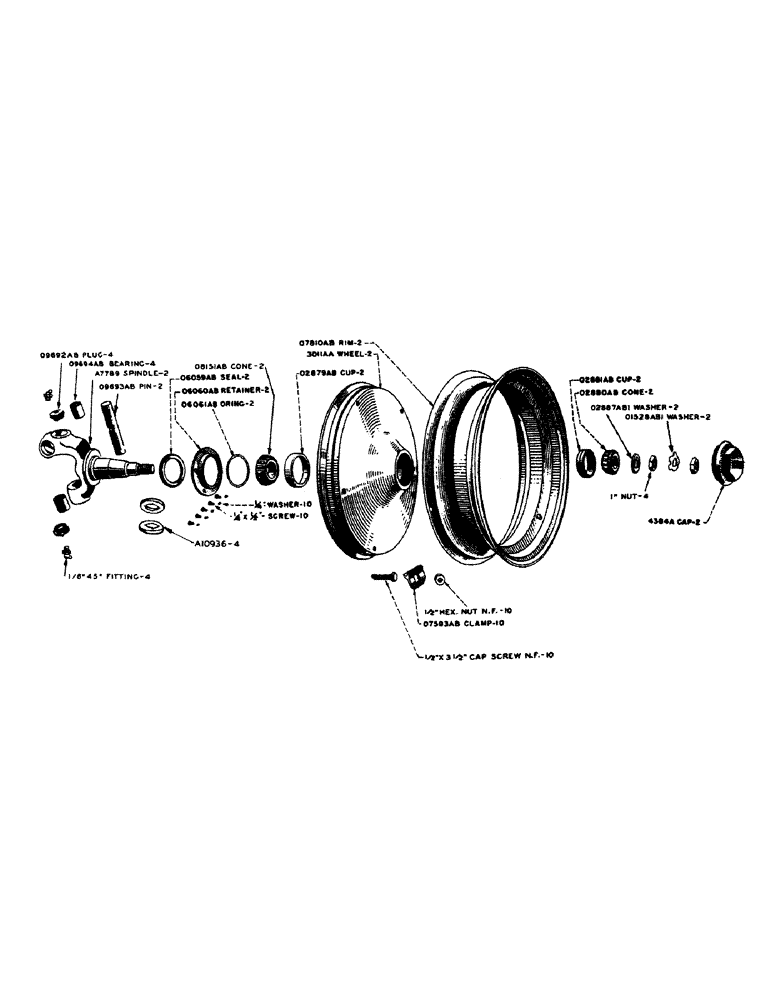

Запчасти Case IH 600-SERIES (098) - FRONT WHEEL SPINDLE (06) - POWER TRAIN

A7789

SPINDLE - steering

2шт.

1/2" N.F. HEX. JAM NUT

4шт.

A10936

WASHER - thrust front axle

4шт.

O1528AB1

X

WASHER - lock, front wheel spindle nut

2шт.

O2566AB

X

BEARING - thrust, front axle (Use A10936)

1шт.

O2879AB

X

CUP - (Timken #3720) front wheel inner bearing

2шт.

O2880AB

X

CONE - (Timken #2580) front wheel outer bearing

2шт.

O2881AB

X

CUP - (Timken #2523) front wheel outer bearing

2шт.

O2887AB1

X

WASHER - front axle spindle

2шт.

O6059AB

X

SEAL - front wheel

2шт.

O6060AB

X

RETAINER - front wheel seal

2шт.

1/4" X 1/2" N.C. RD. HD. MACH. SCREW W/LOCKWASHER

10шт.

O6061AB

X

"O" RING - front wheel retainer seal

2шт.

O8151AB

X

CONE - (Timken #3780) front wheel inner bearing

2шт.

O9692AB

X

PLUG - steering spindle

4шт.

1/8" 45 DEGREE LINCOLN FITTING #5200

4шт.

O9693AB

X

PIN - front axle king

2шт.

O9694AB

X

BEARING - (Torrington no. B2020) front axle king pin

4шт.

4384A

X

CAP - front wheel hub for pneumatic tires

2шт.

5825A

WHEEL - front (Use 3011AA), for pneumatic tires

1шт.

O2879AB

X

CUP - front wheel inner bearing (Timken #3720), for pneumatic tires

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken #2523), for pneumatic tires

2шт.

O7593AB

X

CLAMP - front wheel rim (5 per wheel), for pneumatic tires

10шт.

1/2" X 3-1/2" N.F. HEX. HD. CAP SCREW W/HEAVY SEMI-FINISH HEX. NUT, front wheels for pneumatic tires

10шт.

O7810AB

X

RIM - front wheel (5.50F-18 full drop center rim, without drive lugs) for 7.50-18 pneumatic tire

2шт.

3007AA

WHEEL - front, with rim, for 7.50-18 tire (Consists of: 1 - 3011AA, 5 - O7593AB, 1 - O7810AB, 5 - 1/2" x 3-1/2" N.F. hex. hd. cap screw w/heavy semi-finish hex. nuts), for pneumatic tires

2шт.

3011AA

WHEEL - front, with bearing cups (Consists of: 1 - 5825A, 1 - O2879AB and 1 - O2881ABO) See 3007AA, for pneumatic tires

2шт.

1/2" X 3-1/2" N.F. HEX. HD. CAP SCREW W/HEAVY SEMI-FINISH HEX. NUT, FASTENS CLAMP TO WHEEL AND RIM (5 per wheel), for pneumatic tires

10шт.
