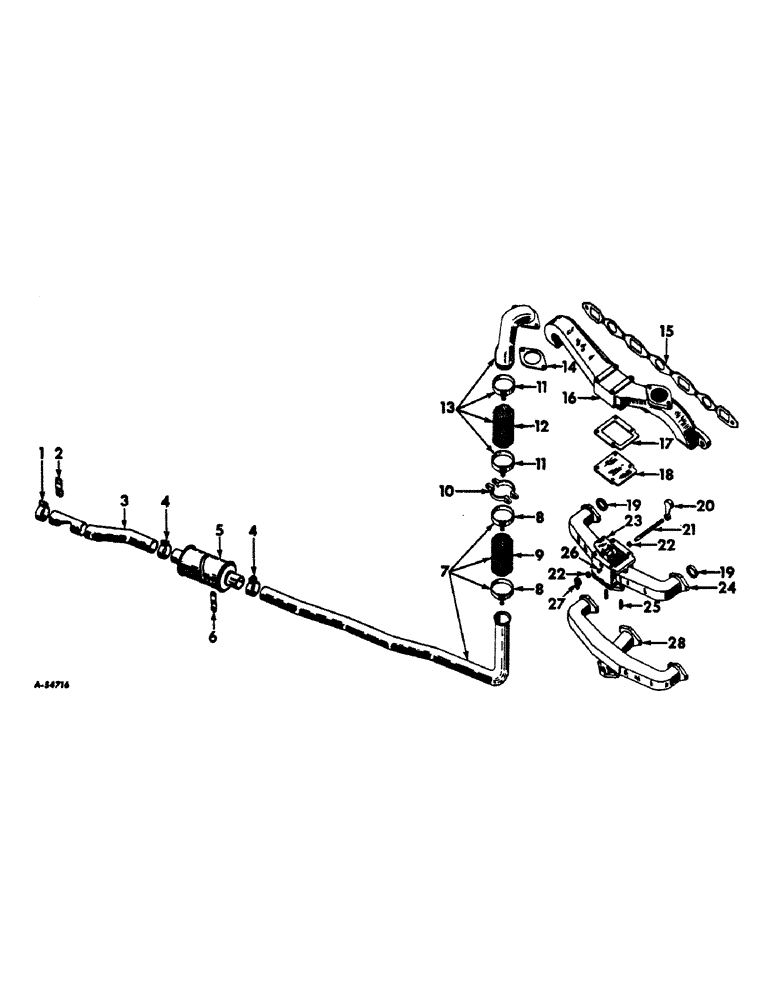

Запчасти Case IH 560 (026) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
372102R1
CLAMP, tail pipe
1шт.
.
93082H
NUT
tail pipe clamp
1шт.
.
SCREW, 3/8 NF x 1-1/2" hex-hd. cap
1шт.
2
372101R1
SUPPORT, tail pipe clamp
1шт.
.
SCREW, 3/4 x 1" hex-hd. cap
1шт.
3
372100R1
PIPE, tail
1шт.
4
48889DA
CLAMP
exhaust muffler
2шт.
.
93082H
NUT
exhaust muffler clamp
2шт.
.
SCREW, 3/8 NF x 1-1/2" hex-hd. cap
2шт.
5
371039R91
MUFFLER
exhaust
1шт.
5
371039R91GV
MUFFLER
Value, Muffler
1шт.
6
372099R1
SUPPORT, muffler clamp, front
1шт.
7
372097R11
PIPE ASSEMBLY, exhaust
1шт.
8
46364H
CLAMP
gasketing tape
2шт.
9
372772R1
TAPE, exhaust pipe gasketing
1шт.
10
369283R1
CLAMP
exhaust pipe
2шт.
.
NUT, 5/16"
2шт.
.
SCREW, 5/16 x 1-3/4" hex-hd. cap
2шт.
11
29978D
CLAMP
gasketing tape
2шт.
12
372772R1
TAPE, exhaust pipe elbow gasketing
1шт.
13
369280R11
ELBOW ASSEMBLY, exhaust
1шт.
.
SCREW, 3/8 x 1" hex-hd. cap
2шт.
14
369282R1
GASKET
exhaust pipe elbow
1шт.
15
69752R1
GASKET
intake and exhaust manifold
1шт.
16
368550R11
MANIFOLD
ASSEMBLY, exhaust
1шт.
.
PIN, 3/16 x 1/2" taper groove (manifold drain hole)
1шт.
.
SCREW, 3/8 x 1/2" cap
2шт.
.
SCREW, 3/8 x 1-1/4" hex-hd cap
6шт.
.
SCREW, 3/8 x 1-1/2" hex-hd cap
2шт.
.
SCREW, 3/8 x 3" hex-hd cap
4шт.
.
127507H
WASHER
13/32 x 7/8 x 7 ga.
8шт.
17
85868R1
GASKET
intake to exhaust manifold
1шт.
18
371098R1
COVER, exhaust manifold (LP gas)
1шт.
.
NUT, 3/8"
4шт.
.
SCREW, 3/8 x 3-1/8" hex-hd. cap
4шт.
19
98573HA
GUIDE
PILOT, intake manifold
2шт.
20
85699R1
WEIGHT
manifold heat control
1шт.
21
82959R1
SHAFT
manifold heat control valve
1шт.
22
69443R1
BUSHING
manifold heat control
2шт.
23
85700R1
VALVE
manifold heat control
1шт.
24
367261R11
MANIFOLD
ASSEMBLY, intake (gasoline), composed of (2) bushing 69443R1, (1) manifold 367261R1 (NSS), (1) pin 141159, (1) plug 103865, (1) shaft 82959R1, (1) spring 82958R2, (2) stud 12215D, (1) valve 85700R1, (1) weight 85699R1
1шт.
25
12215D
STUD
carburetor
2шт.
.
NUT, 3/8NF
2шт.
.
WASHER, 3/8" lock
2шт.
26
141159
SPARE PART
PIN, 3/16 x 1" dowel
1шт.
27
82958R2
VALVE SPRING
SPRING, thermostat heat control valve
1шт.
28
371097R11
MANIFOLD, w/plug assembly, intake (LP gas)
1шт.
.
PLUG, 1/8" sq-hd. pipe
1шт.
Выбрано товаров: 48
