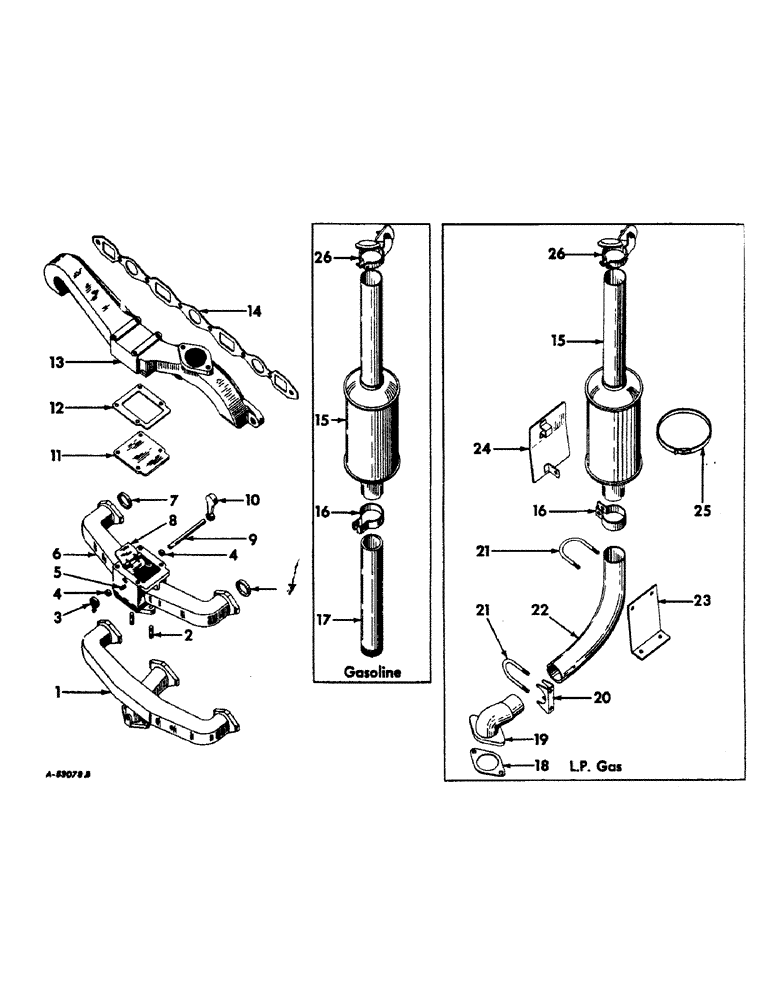

Запчасти Case IH 560 (025) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/VERTICALLY MOUNTED EXHAUST MUFFLER (01) - ENGINE

1

371097R11

MANIFOLD, w/plug assembly, intake (LP gas)

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8" sq-hd. pipe

1шт.

2

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

3/8NF

2шт.

PL

PROCURE LOCALLY

WASHER, 3/8 lock

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

141159

SPARE PART

PIN, 3/16 x 1" dowel

1шт.

6

367261R11

MANIFOLD

ASSEMBLY, intake, composed of (2) bushing 69443R1, (1) manifold 367261R1 (NSS), (1) pin 141159, (1) plug 103865, (1) shaft 82959R1, (1) spring 82958R2, (2) stud 12215D, (1) valve 85700R1, (1) weight 85699R1

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8" sq-hd. pipe

1шт.

7

98573HA

GUIDE

PILOT, intake manifold

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold (LP gas0

1шт.

102635

NUT,3/8"-16, G5

3/8"

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8 x 3-3/8" hex-hd. cap

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

368550R11

MANIFOLD

ASSEMBLY, exhaust

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

PIN, 3/16 x 1/2" taper groove (manifold drain hole)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

SCREW, 3/8 x 1/2" cap

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4" hex-hd cap

6шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2" hex-hd cap

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8 x 3" hex-hd cap

4шт.

127507H

WASHER

13/32 x 7/8 x 7 ga

8шт.

14

69752R1

GASKET

intake and exhaust manifold

1шт.

15

370773R91

MUFFLER

exhaust (560 series)

1шт.

15

376352R91

MUFFLER

exhaust (International 660)

1шт.

16

350602R1

CLAMP

exhaust muffler

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8" x 1-3/8" cap

1шт.

WASHER, 3/8" lock

1шт.

17

369613R1

PIPE

exhaust (560 series)

1шт.

17

372597R1

PIPE, exhaust (International 660)

1шт.

18

369282R1

GASKET

exhaust pipe elbow

1шт.

19

371635R1

ELBOW, exhaust pipe

1шт.

SCREW, 3/8 x 1" hex-hd. cap

2шт.

20

371637R1

CLAMP, exhaust pipe

1шт.

21

371636R1

U-BOLT, exhaust pipe

1шт.

NUT, 5/16" bes.

4шт.

WASHER, 11/32 x 11/16" x 16 ga.

4шт.

22

371634R1

PIPE

exhaust (560 series)

1шт.

22

373076R1

PIPE, exhaust (International 660)

1шт.

23

371638R1

BRACKET, exhaust pipe

1шт.

NUT, 5/16"

2шт.

SCREW, 51/6 x 1" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

24

371674R11

SHIELD ASSEMBLY, muffler heat

1шт.

25

371677R91

HOSE CLAMP,#92, 5.38/6.25 Type F Worm, W/liner

CLAMP, muffler heat shield (560 series)

1шт.

25

378124R91

CLAMP, muffler heat shield (International 660)

1шт.

26

321574R91

PLUG

CAP ASSEMBLY, exhaust

1шт.
