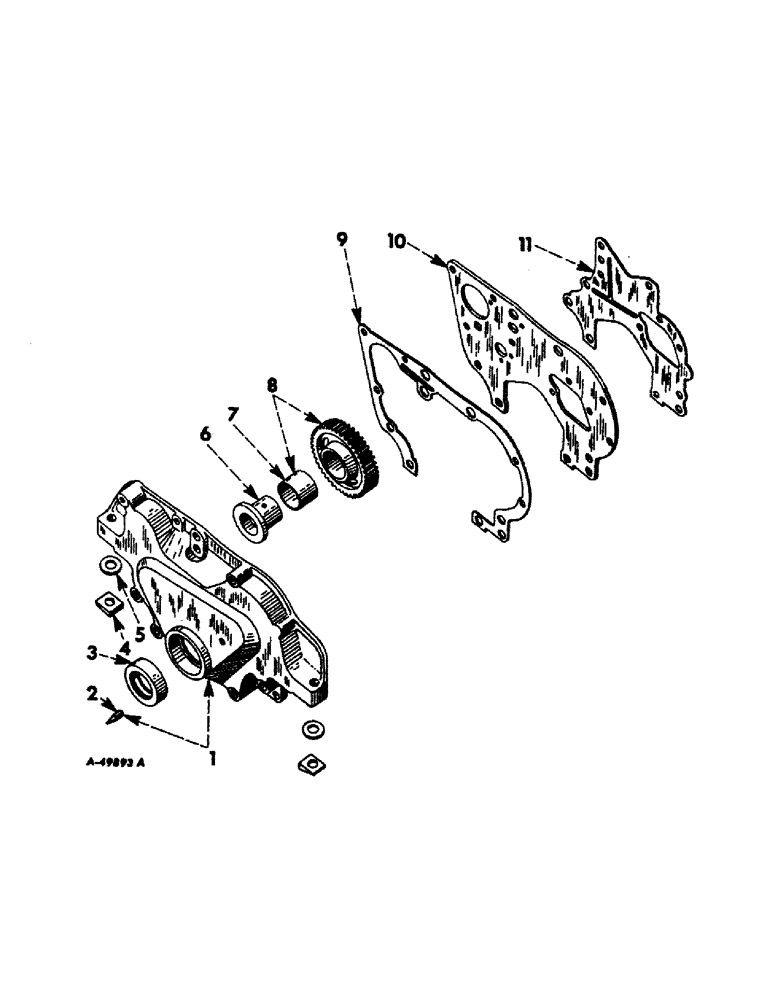

Запчасти Case IH 560 (020) - CARBURETED ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

384489R11

COVER ASSEMBLY, crankcase front

1шт.

NUT, 1/2"

2шт.

NUT, 1/2" NF (used only with stud, 367522R1)

2шт.

SCREW, 1/2 x 2-3/4" hex-hd. cap

5шт.

SCREW, 1/2 x 2-1/2" hex-hd. cap

2шт.

SCREW, 1/2 x 1-3/4" hex-hd. cap

1шт.

WASHER, 1/2" lock

8шт.

2

367572R1

INDICATOR

POINTER, timing

1шт.

3

357672R91

OIL SEAL

OIL SEAL, crankshaft

1шт.

4

51693D

BAR

WASHER, engine front support bevel

2шт.

5

48384D

SHIM, engine front support, heavy

2шт.

5

48385D

SHIM

engine front support, light

1шт.

6

367580R11

HUB

SHAFT ASSEMBLY, idler gear

1шт.

PIN, 3/16 x 7/16" dowel

1шт.

SCREW, 1/2 x 2-1/4" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

7

367578R1

BUSHING

idler gear

1шт.

8

367577R11

PINION

GEAR ASSEMBLY, idler

1шт.

9

367574R1

GASKET

crankcase front cover

1шт.

10

367524R1

PLATE, crankcase front

1шт.

SCREW, 3/8 x 7/8" hex-hd.

6шт.

WASHER, 3/8" lock

6шт.

11

367570R1

GASKET

crankcase front plate

1шт.
