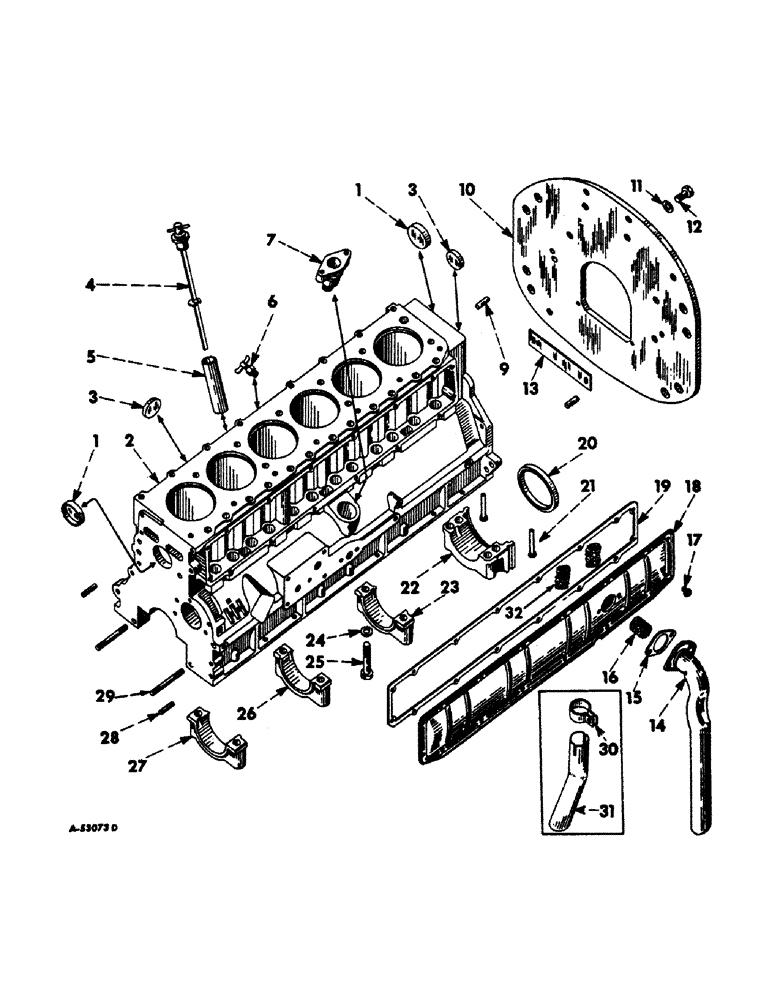

Запчасти Case IH 560 (018) - CARBURETED ENGINE, CRANKCASE AND RELATED PARTS (01) - ENGINE

1

70129R1

PLUG,Cup, 2"

core hole

2шт.

2

367512R95

1шт.

CRANKCASE ASSEMBLY, composed of (1) adapter 367513R1, (10) bolt 70133R1, (4) bolt 19992R1, (1) bushing 367514R1, (1) bushing 70260R1, (1) bushing 70261R1, (1) bushing 70262R1, (1) cap 367516R2 (NSS), (1) cap 367517R2 (NSS), (1) cap 367518R2 (NSS), (1) cap 367519R2 (NSS), (1) cover 356243R1, (1) drain cock 141615, (1) crankcase 372544R4 (NSS), (2) dowel 141285, (2) dowel 371699R2, (1) gasket 128868H, (4) nut 102637, (6) plug 70128R1, (2) plug 70129R1, (2) plug 126045, (3) plug 444852, (2) screw 179814, (1) t

1шт.

448852

PLUG, 1/8" automotive hex. socket pipe

1шт.

3066422R1

PLUG

3/8" short sq socket pipe

2шт.

3

70128R1

PLUG,Cup, 1 5/8"

core hole

6шт.

4

368986R91

GAUGE ASSY.

CAGE ASSEMBLY, oil level

1шт.

5

368985R2

TUBE

oil filler

1шт.

6

IH76904

VALVE

COCK, 1/4" drain-type B (optional with 103647)

1шт.

6

103647

VALVE

COCK, 1/4" drain-type C (optional with 141615)

1шт.

7

367513R1

ADAPTER

distributor mounting

1шт.

9

371699R2

STUD

DOWEL, engine rear support

2шт.

9

376353R1

DOWEL, engine rear support (.030" oversize)

2шт.

10

367224R2

SUPPORT, engine rear

1шт.

11

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

17/32 x 1" x .092

6шт.

12

9409086

BOLT, 1/2 x 1-1/4" type AA hex. lock

6шт.

13

367225R1

BAR

SEAL, engine rear support dust

1шт.

SCREW, 5/16 x 5/8" hex-hd. cap

2шт.

WASHER, 11/32 x 11/16" x no. 16 ga.

2шт.

14

368429R21

EXHAUST SYSTEM PIPE

PIPE ASSEMBLY, breather

1шт.

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCRWE, slt-rd-hd. mach. w/washer assembly

1шт.

15

369981R1

GASKET

breather pipe

1шт.

16

369442R1

ELEMENT

breather pipe

1шт.

17

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, push rod cover

16шт.

18

315970R91

PLATE ASSY.

COVER, w/two elements, 315849R1 assembly push rod

1шт.

19

369982R1

GASKET

push rod cover

1шт.

20

374006R91

SEAL

OIL SEAL, crankshaft rear

1шт.

21

310665R1

PLUG

rear bearing cap filler

2шт.

22

CAP, crankshaft rear bearing (not serviced separately-order crankcase assembly)

1шт.

23

CAP, crankshaft rear intermediate bearing (not serviced separately-order crankcase assembly)

1шт.

24

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

10шт.

25

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

26

CAP, crankshaft front intermediate bearing (not serviced separately-order crankcase assembly)

1шт.

27

CAP, crankshaft front bearing (not serviced separately-order crankcase assembly)

1шт.

28

NLS

NO LONGER SERVICED

DOWEL, crankcase front plate and cover

2шт.

29

267522R1

STUD, crankcase front cover (order screw, 179892)

2шт.

30

376354R1

EXTENSION, breather pipe International 6604256 up

1шт.

31

376355R1

CLAMP

breather pipe extension International 6604256 up

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4" x 1" cap

1шт.

WASHER, 1/4" lock

1шт.

32

315849R1

FILTER CARTRIDGE

ELEMENT, push rod cover (supplied as part of cover, 315970R91)

1шт.
