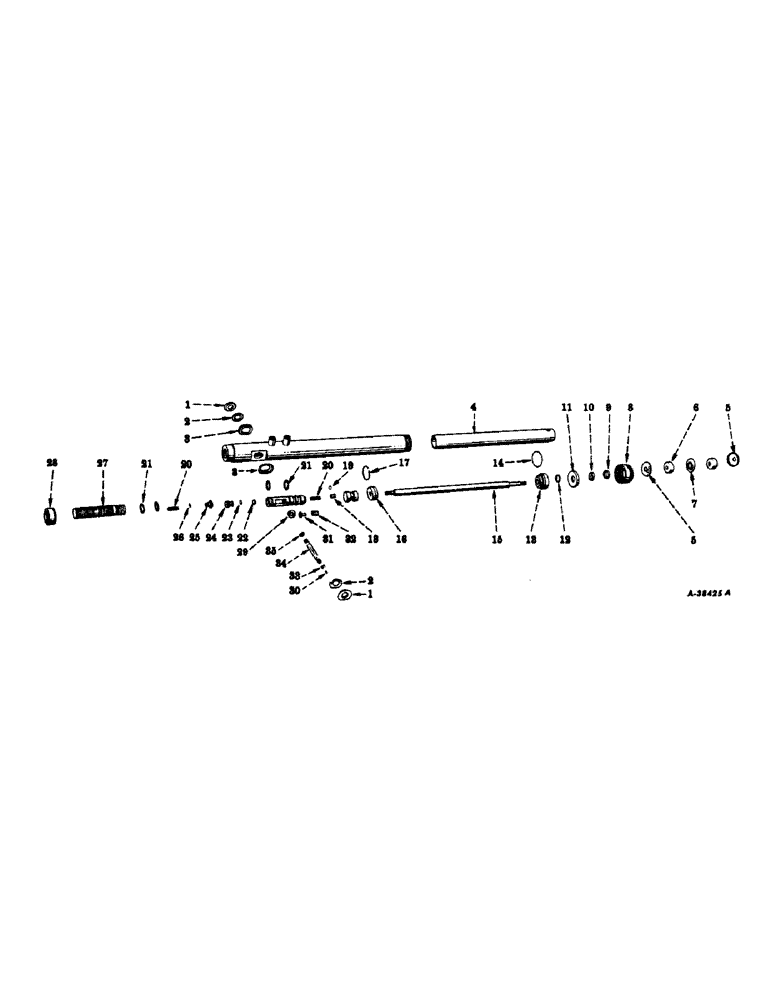

Запчасти Case IH 560 (177) - STEERING MECHANISM, POWER STEERING HYDRAULIC CYLINDER & VALVE, INTERNATIONAL 560 & 660 SERIES Steering Mechanism

371185R91

CYLINDER AND VALVE ASSEMBLY, (order 375260R93)

1шт.

1

364096R1

CUSHION, valve stud

2шт.

2

364098R1

WASHER, valve stud thrust

2шт.

3

364097R1

RETAINER, valve stud cushion

2шт.

4

364109R1

TUBE, cylinder inner

1шт.

5

363206R1

RETAINER, frame bracket cushion

2шт.

125366

SLOTTED NUT,1/2"-20, G5, Thk

1шт.

6

363207R1

CUSHION

frame bracket

2шт.

7

363208R2

LOCATOR, frame bracket cushion

1шт.

8

364110R1

CAP, cylinder tube

1шт.

9

364106R1

RETAINER, piston rod wiping ring

1шт.

10

364105R1

RING, wiping piston rod

1шт.

11

364103R1

RETAINER, t-ring rod guide

1шт.

12

364107R91

RING

T-RING AND WASHER, piston rod

1шт.

13

364104R1

GUIDE, cylinder rod

1шт.

25-118

NUT,1/2"-20, G5

1/2 NF hex.

1шт.

14

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

rod guide (1-13/16 x 2 x 3/32")

1шт.

15

364101R1

ROD, cylinder piston

1шт.

16

364100R1

PISTON, cylinder

1шт.

17

364102R1

RING

cylinder piston

1шт.

18

364088R1

PISTON, reaction inner

1шт.

19

355967R1

O-RING,0.364" ID x 0.003" Width

reaction piston, outer (3/8 x 1/2 x 1/16")

1шт.

20

364089R1

SPRING, reaction piston

2шт.

21

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

valve (7/8 x 1-1/8 x 1/8")

4шт.

22

364093R1

SEAT, outer ball

1шт.

23

355966R1

O-RING,0.424" ID x 0.103" Width

adjusting plug (7/16 x 5/8 x 3/32")

1шт.

24

364091R1

PLUG, valve spool adjusting

1шт.

25

364087R1

PISTON, outer reaction

1шт.

26

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Reaction piston, inner (5/16 x 7/16 x 1/16")

1шт.

27

364085R1

PLUG, valve adjusting, outer

1шт.

28

364086R1

LOCKNUT, valve end

1шт.

29

364092R1

BALL, stud valve

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Optional with 109454) 1/4"-28 NPT x .54" lg

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Optional with 271287) 1/4"-28 NPT x .54" lg

1шт.

31

364094R1

SEAT, inner ball

1шт.

32

364090R1

SPRING, valve spool

1шт.

33

82448R1

NUT

valve stud elastic stop

1шт.

34

364095R1

STUD, valve

1шт.

35

364099R1

NUT, valve stud slotted

1шт.
