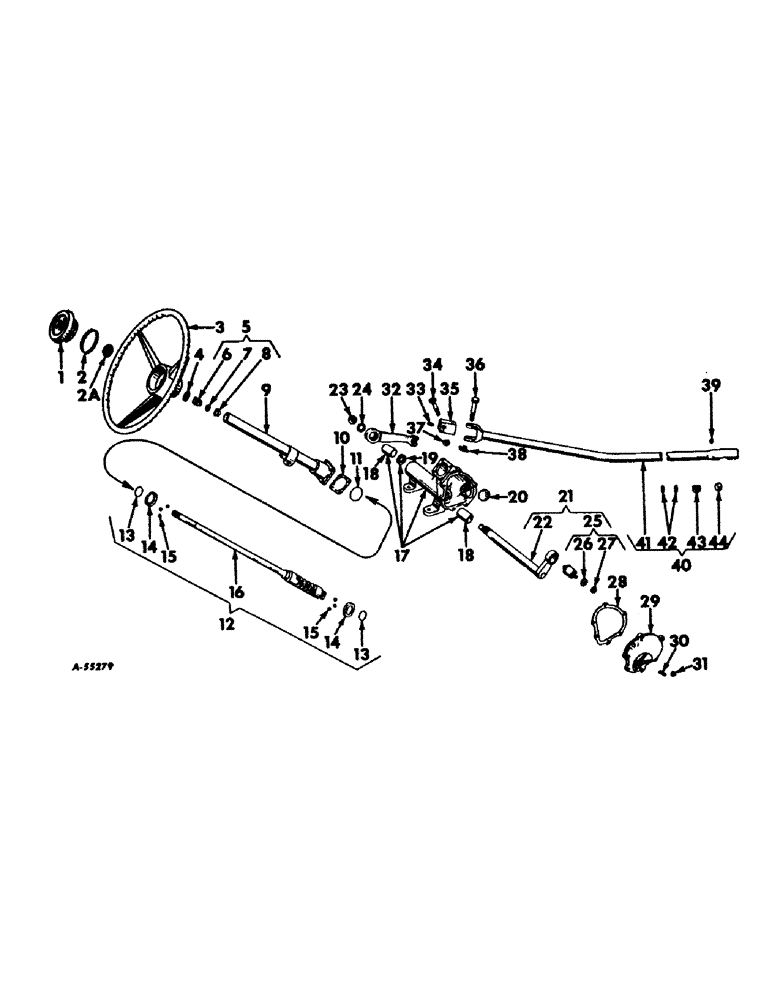

Запчасти Case IH 560 (170) - STEERING MECHANISM, STEERING MECHANISM, INTERNATIONAL 560 AND 660 SERIES Steering Mechanism

373425R91

STEERING GEAR ASSEMBLY, (composed of parts listed in this unit except as noted)

1шт.

1

366558R1

PRODUCT GRAPHIC

CAP, steering wheel monogrammed (for tractors without power steering) (see note A)

1шт.

1

366566R1

CAP

steering wheel monogrammed (for tractors with power steering) (see note A)

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RETAINER, steering wheel cap o-ring (2-13/16 x 3 x 3/32")

1шт.

2a

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

3

366557R2

STEERING WHEEL

WHEEL, steering (18" dia) (International 560 series)

1шт.

3

372282R1

WHEEL, steering (20" dia) (International 660 series)

1шт.

4

364149R1

WASHER

FELT, jacket tube dust seal (see note A)

1шт.

5

88771HA

BEARING

UNIT ASSEMBLY, jacket tube

1шт.

6

88474H

VALVE SPRING

SPRING, jacket tube bearing

1шт.

7

91808R1

PACKING RING

SEAT, jacket tube bearing spring

1шт.

8

91811R91

BEARING ASSY

ASSEMBLY, jacket tube

1шт.

9

369848R91

TUBE, w/unit 88771HA assembly, jacket

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

10

75096H

SHIM

upper cover housing (.002")

1шт.

10

75097H

SHIM

upper cover housing (.003")

1шт.

10

75098

SHIM, upper cover housing (.010")

1шт.

11

364306R1

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

jacket tube (2-1/4 x 2-7/16 x 3/32")

1шт.

12

364298R91

CAM AND TUBE ASSEMBLY, steering gear

1шт.

13

62638V

RING, retaining

2шт.

14

75084HA

RING RACE

CUP, ball

2шт.

15

D2615

BALL

3/8" dia. chr-stl.

28шт.

16

364299R91

CAM AND TUBE ASSEMBLY, wheel

1шт.

17

373610R91

HOUSING, w/plug, 172592 assembly, steering gear

1шт.

SCREW 5/8 x 1-3/4" hex-hd. cap (see note A)

3шт.

WASHER, 5/8" lock (see note A)

3шт.

18

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

housing

2шт.

19

141515HB

SEAL

OIL SEAL, housing

1шт.

20

63556R1

PLUG

2" expansion (housing)

1шт.

21

364301R91

LEVER SHAFT ASSEMBLY

1шт.

22

364302R91

LEVER SHAFT, w/nut, 62643V and washer, 121326 assembly

1шт.

23

62643V

NUT

lever shaft

1шт.

24

121326

WASHER,1"

LOCK, 1"

1шт.

25

60636R91

STUD

ROLLER BEARING UNIT, stud

1шт.

26

88428H

WASHER

roller bearing unit pronged

1шт.

27

68016H

NUT

roller bearing unit stud

1шт.

28

364305R1

GASKET

housing side cover

1шт.

29

364304R1

COVER, housing side

1шт.

PLUG, 3/8" sq-hd. CI pipe

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cap

6шт.

WASHER, 3/8" lock

6шт.

30

50443H

ADJUSTMENT SCREW

lever shaft adjusting

1шт.

31

68016H

NUT

lever shaft adjusting screw

1шт.

32

369847R1

ARM, steering gear

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) (See note A) 1/8"-27 x .66 lg

3шт.

33

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) (see note A) 1/8"-27 x .66 lg

3шт.

34

363621R1

PIN, steering gear arm (see note A)

1шт.

NUT, 3/4 NF jam

1шт.

35

58721DB

BLOCK, drag link clevis (see note A)

1шт.

35

374196R1

BLOCK, drag link clevis (for International 660 series tractors with adjustable wide tread front axle) (see note A)

1шт.

36

58722D

PIN, drag link clevis (see note A)

1шт.

NUT, 3/4 NF jam

1шт.

37

363622R1

PLATE, steering gear arm pin lock (see note A)

1шт.

38

361290R1

PLATE, drag link clevis pin lock (see note A)

1шт.

39

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) (See note A) 1/8"-27 x .66 lg

1шт.

39

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) (see note A) 1/8"-27 x .66 lg

1шт.

40

369843R91

LINK ASSEMBLY, drag (see note A)

1шт.

41

TUBE ASSEMBLy, drag link (not serviced separately, order link, 369843R91) (see note A)

1шт.

PIN, 1/8 x 1-3/4" cotter

1шт.

42

26935H

SEAT

drag link ball (see note A)

2шт.

43

58157D

SPRING

drag link (see note A)

1шт.

44

26938H

PLUG

adjusting, drag link (see note A)

1шт.
