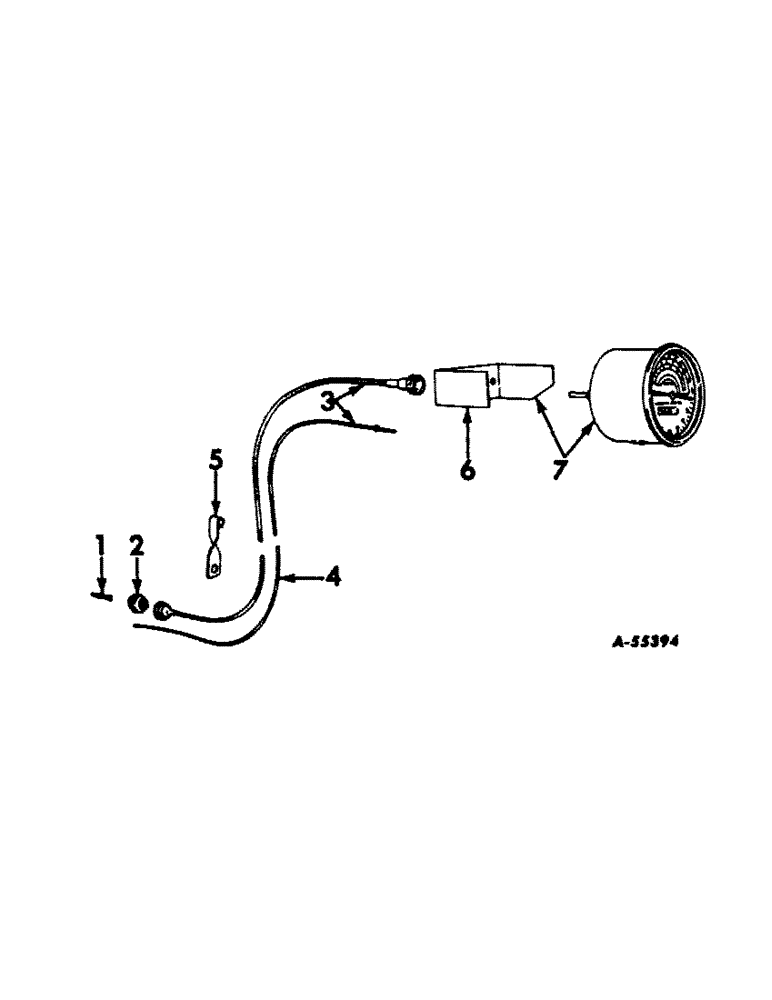

Запчасти Case IH 560 (279) - ENGINE CONTROLS, INSTRUMENTS, AND INSTRUMENT PANEL TRACHOMETER Engine Controls

.

372525R91

PARTS ASSEMBLY, tachometer (International 660 series)

1шт.

1

368245R12

PINION

GEAR ASSEMBLY, tachometer drive

1шт.

2

368246R1

CONNECTION

HOUSING, tachometer connection

1шт.

3

371245R91

CABLE ASSY.

SHAFT ASSEMBLY, tachometer flexible drive

1шт.

4

371246R91

CORE

ASSEMBLY, tachometer flexible drive shaft ( replaced 371247R91)

1шт.

5

370205R1

CLIP, tachometer flexible drive shaft

1шт.

6

364482R1

CLAMP, tachometer mounting

1шт.

.

NUT, no. 10 Nf cd-pltd.

2шт.

.

WASHER, no. 10 cd-pltd. external-tooth lock

2шт.

7

383093R91

TACHOMETER

ASSEMBLY, (560 series)

1шт.

7

383093R91GV

TACHOMETER

Value, Tachometer

1шт.

7

383094R91

TACHOMETER ASSEMBLY, (International 660 series)

1шт.
