Запчасти Case IH 560 (277) - ENGINE CONTROLS, INSTRUMENTS, & INSTRUMENT PANEL, ENGINE CONTROLS & INSTRUMENTS Engine Controls

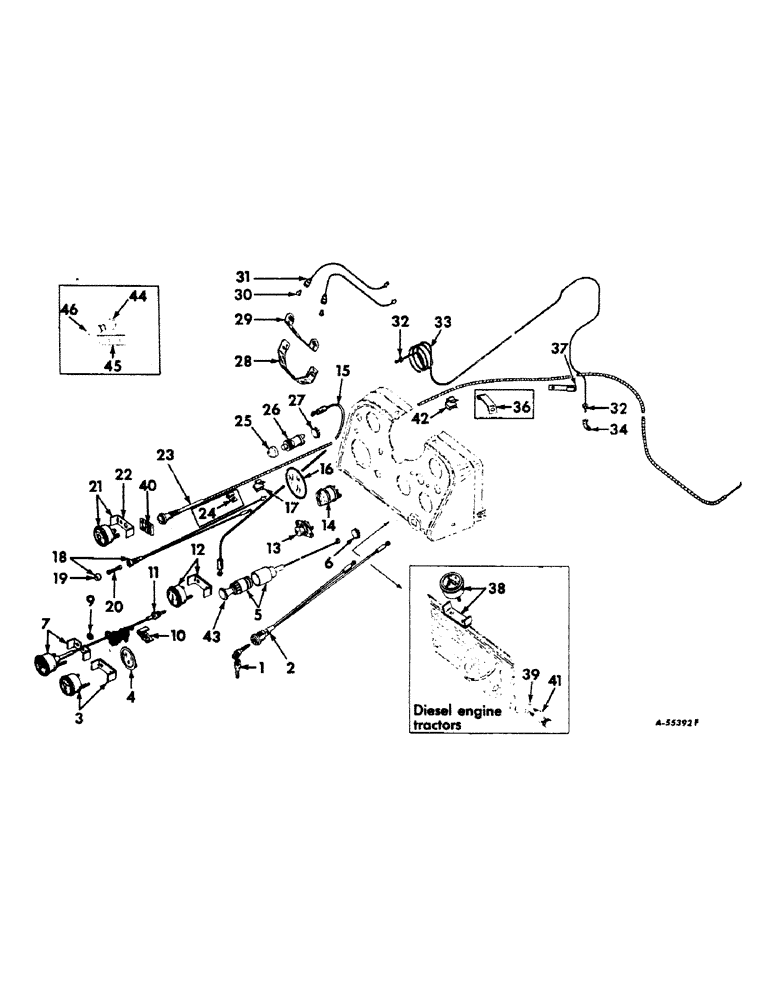

Схема запчастей Case IH 560 - (277) - ENGINE CONTROLS, INSTRUMENTS, & INSTRUMENT PANEL, ENGINE CONTROLS & INSTRUMENTS Engine Controls
45
22
7
2
16
12
33
21
3
44
14
15
17
28
24
9
11
3
41
42
1
13
25
18
19
6
23
30
40
37
32
4
26
46
20
10
38
36
29
27
39
31
34
32
5

Артикул

Название

Примечание

Количество

1

382458R1

KEY

switch (purchase locally)

1шт.

2

370375R91

IGNITION SWITCH

SWITCH ASSEMBLY, ignition

1шт.

*

365502R1

NUT

ignition switch mounting

1шт.

*

375431R1

LOCK WASHER

13/16" internal-tooth cd-pltd. lock

1шт.

3

369607R92

GAUGE

FUEL GAUGE ASSEMBLY, (Rochester)

1шт.

Ref #3 fuel gauge 369607R92 is a Rochester gauge now subs to 369607R93. 369607R93 will only work with sender 1341373C1. Gauge 378426R91 will only work with 378427R91. If mix incorrect sender with gauge will give incorrect fuel level readings. The Stewart Warner gauge subs up to the Rochester gauge. So if tractor originally had a Stewart Warner gauge then the sender will also need to be changed.

1шт.

3

378426R91

GAUGE

FUEL GAUGE ASSEMBLY, (Stewart Warner)

1шт.

4

371052R11

COVER

ASSEMBLY, fuel gauge opening (for L.P. gas engine tractors)

1шт.

5

367904R91

LIGHTER, CIGARETTE

CIGARETTE LIGHTER PARTS ACCESSORY, (12 volt)

1шт.

6

432281

HOLE PLUG BUTTON,29/32"

PLUG, chr-pltd. button (used to plug hole for cigarette lighter) 29/32"

1шт.

7

370259R92

GAUGE

INDICATOR ASSEMBLY, heat

1шт.

9

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

heat indicator cable

1шт.

10

366460R1

CABLE CLIP

CLIP, heat indicator cable

2шт.

10

372619R1

CLIP, heat indicator cable and breather hose (L.P. gas engine tractors)

1шт.

11

51510D

BUSHING

heat indicator element nut reducing

1шт.

12

360053R92

INDICATOR

w/clamp, six nuts and six washers assembly, charge

1шт.

13

366316R91

SWITCH

ASSEMBLY, push button starting (optional with 366317R91)

1шт.

13

366317R91

IGNITION SWITCH

SWITCH ASSEMBLY, push button starting (Indax mfg. corp.) (optional with 366316R91)

1шт.

*

NUT, no. 10 NF cd-pltd. sq.

2шт.

*

SCREW, no. 10 x 7/16" cd-pltd. slt-rd-hd. mach.

2шт.

*

WASHER, no. 10 cd-pltd. lock

2шт.

14

371465R91

KIT

SWITCH ASSEMBLY, lighting

1шт.

15

359380R91

CABLE

ASSEMBLY, horn switch to charge indicator

1шт.

16

370940R11

PLATE

COVER ASSEMBLY, tachometer opening

1шт.

17

374903R1

CLIP

choke or shut-off cable, rear (gasoline or diesel engine tractors) Farmall 560 series 14819 up International 560 series 2071 up International 660 series 1349 up

1шт.

18

370311R91

FUSE CARTRIDGE

HOUSING ASSEMBLY, fuse (560 series)

1шт.

18

362669R91

HOUSING

ASSEMBLY, fuse (International 660 series)

1шт.

19

356445R91

KNOB

fuse holder

1шт.

20

117142

FUSE,10 Amp, Type 3AG

10 amp

1шт.

21

362177R94

INDICATOR

GAUGE, w/clamp, two nuts and two washers assembly, oil pressure

1шт.

22

60805D

CLAMP, oil pressure gauge

1шт.

REF# 21 SUBS TO A P/N# 536962R2 WHICH HAS MALE CONNECTOR, AND THE OLD GUAGES WAS FEMALE. PART NUMBER 257523R1 ADAPTER IS NEEDED TO CONVERT. ALSO, YOU MAY NEED A 1/8" TUBE NUT PART NUMBER 19984R1 TO FIT YOUR APPLICATION. USE BOTH PART NUMBERS TO ADAPT TO 1/8" TUBE. 7-2-97. DMB.

1шт.

*

NUT, no. 12

2шт.

*

WASHER, no. 12 external-tooth lock

2шт.

23

371278R91

CONTROL ASSEMBLY, choke (gasoline engine tractors) (order package, 374254R91) Farmall 560 series 501 to 14818 International 560 series 501 to 2070 International 660 series, Serial Range: 501-1348

1шт.

23

374218R91

CONTROL

ASSEMBLY, choke (gasoline engine tractors) Farmall 560 series 14819 up International 560 series 2071 up International 660 series 1349 up

1шт.

23

372620R91

CABLE

CONTROL ASSEMBLY, choke (LP gas engine tractors)

1шт.

23

371736R91

CONTROL ASSEMBLY, shut-off (diesel engine tractors) (order package, 374255R91) Farmall 560 series 501 to 14819 International 560 series 501 to 2070 International 660 series, Serial Range: 501-1348

1шт.

23

374220R91

CABLE

CONTROL ASSEMBLY, shut-off (diesel engine tractors) Farmall 560 series 14819 up International 560 series 2071 up International 660 series 1349 up

1шт.

24

371040R1

CLIP, choke or shut-off, rear (gasoline or diesel engine tractors) Farmall 560 series 501 to 14818 International 560 series 501 to 2070 International 660 series, Serial Range: 501-1348

1шт.

24

371040R1

CLIP, choke or shut-off cable, LH rear (gasoline or diesel engine tractors)

1шт.

24

355097R1

CLIP, choke cable, rear (L.P. gas engine tractors)

1шт.

25

371487R1

CYLINDER END CAP

CAP, horn switch dust (gray)

1шт.

26

373611R91

IGNITION SWITCH

SWITCH, horn (less cap) (for components see list of parts under details of "horn switch")

1шт.

27

374342R1

PLUG

horn switch hole

1шт.

28

371204R1

LENS

instrument light

1шт.

371205R91

SCREW, instrument light lens

2шт.

29

370379R1

BRACKET, instrument light

1шт.

*

SCREW, 1/4 x 1/2" flat-hd. mach.

2шт.

30

A14553

BULB

instrument light, no. 57 (12 volt)

2шт.

31

372546R91

CABLE

SOCKET ASSEMBLY, instrument light

2шт.

32

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 1/8" OD brs. tubing

2шт.

33

371081R11

PIPE ASSEMBLY, oil pressure indicator

1шт.

34

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

1/8" OD x 90 deg. brs. tubing

1шт.

36

371083R1

CLIP, choke or shut-off cable, RH front (gasoline or diesel engine tractors) Farmall 560 series 501 to 14818 International 560 series 501 to 2070 International 660 series, Serial Range: 501-1348

1шт.

36

370740R1

CLAMP

CLIP, choke cable (LP gas engine tractors)

1шт.

*

WASHER, 11/32 x 11/16" x 16 ga.

1шт.

37

371038R1

CLIP, oil pressure line (for steel line)

1шт.

37

375389R1

CLIP, oil pressure line (for nylon line)

1шт.

*

SCREW, 1/4 x 1/2" hex. hd. cap

1шт.

38

370380R92

METER

ASSEMBLY, glow plug

1шт.

39

374342R1

PLUG

glow plug switch hole International 560 series diesel 4100 up International 660 series diesel 4259 up

1шт.

40

371372R1

PLATE, gear shift

1шт.

40

371371R1

PLATE, gear shift (tractors with torque amplifier)

1шт.

9402597

RIVET, 1/16 x 3/16" mushroom hd. al.

2шт.

41

271179R91

SWITCH

ASSEMBLY, glow plug (Delco-Remy) (for components see list of parts under details of "glow plug switch") (tractors with switch mounting on instrument panel)

1шт.

42

374252R1

CLIP, choke or shut-off cable, front Farmall 560 series 14810 up International 560 series 2071 up International 660 series, 1349 up

1шт.

43

363422R91

UNIT, pop-out

1шт.

44

373611R91

IGNITION SWITCH

SWITCH ASSEMBLY, glow plug (Cole-Hersee) (for components see list of parts under details of "glow plug switch") International 560 series diesel 4100 up International 660 series diesel 4259 up

1шт.

45

376534R1

BRACKET, switch mounting International 560 series diesel 4100 up International 660 series diesel 4259 up

1шт.

*

SCREW, 1/4 x 3/8" cap

1шт.

*

WASHER, 3/8" lock

2шт.

46

373612R1

CAP

glow plug switch dust (red) (for switch 373611R91 when used in glow plug application)

1шт.

374254R91

PACKAGE, choke control assembly service (gasoline engine tractors) (consists of two clips, 374250R1 and control, 374218R91) (will work for 371278R91) Farmall 560 series 501 to 14818 International 560 series 501 to 2070 International 560 series, Serial Range: 501-1348

1шт.

*

374255R91

PACKAGE

1шт.

PACKAGE, shut-off control assembly service (diesel engine tractors) (will work for 371736R91) Farmall 560 series 501 to 14818 International 560 series 501 to 2070 International 660 series 501 to 1348 consists of, (1) clip 374250R1, (1) clip 374252R1, (1) control 374220R91

1шт.

Выбрано товаров: 76
