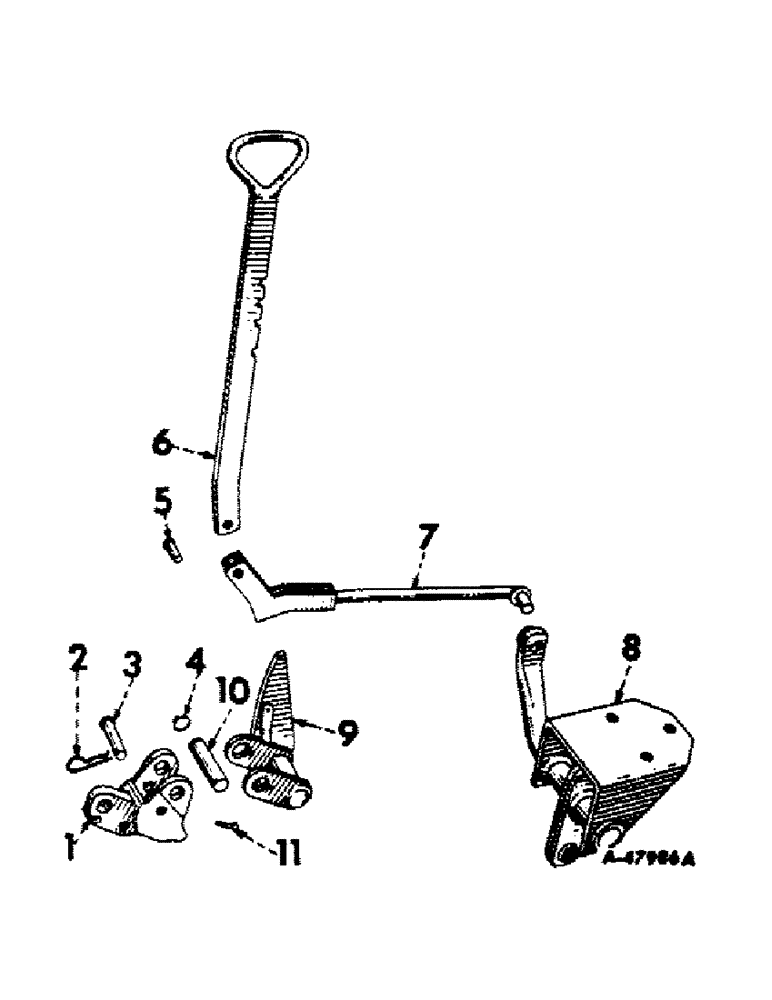

Запчасти Case IH 560 (255) - DRAWBARS AND HITCHES, TRACTION CONTROL UNIT, FOR ALL FARMALL SERIES TRACTORS EXCEPT HI-CLEAR MODELS Drawbar & Hitches

1

523684R22

LEVER

BELLCRANK ASSEMBLY, cylinder

1шт.

2

520175R1

CLIP

PIN, quick-attachable cotter (in drawbar lockout pin)

1шт.

3

523687R1

PIN

drawbar lock-out

1шт.

4

454319R1

RING

traction control pivot shaft snap

1шт.

5

522747R1

PIN

traction control lever

1шт.

PIN, 3/16 x 1" cotter

1шт.

6

522710R11

HANDLE ASSEMBLY, traction control adjusting

1шт.

7

522713R91

LINK ASSEMBLY, traction control

1шт.

PIN, 1/4 x 1-1/2" cotter

1шт.

Q3481

WASHER

1-1/32 x 1-1/2" x 16 ga.

1шт.

8

522724R92

BRACKET ASSEMBLY, bail

1шт.

523434R1

BOLT

SCREW, 7/8 x 1-3/4" hex-hd. cap

3шт.

523438R1

WIRE, lock

1шт.

9

523685R91

BRACKET ASSEMBLY, cam

1шт.

10

523683R1

SHAFT, traction control pivot

1шт.

11

523111R1

ROD

PIN, traction control cylinder bellcrank lock

1шт.
