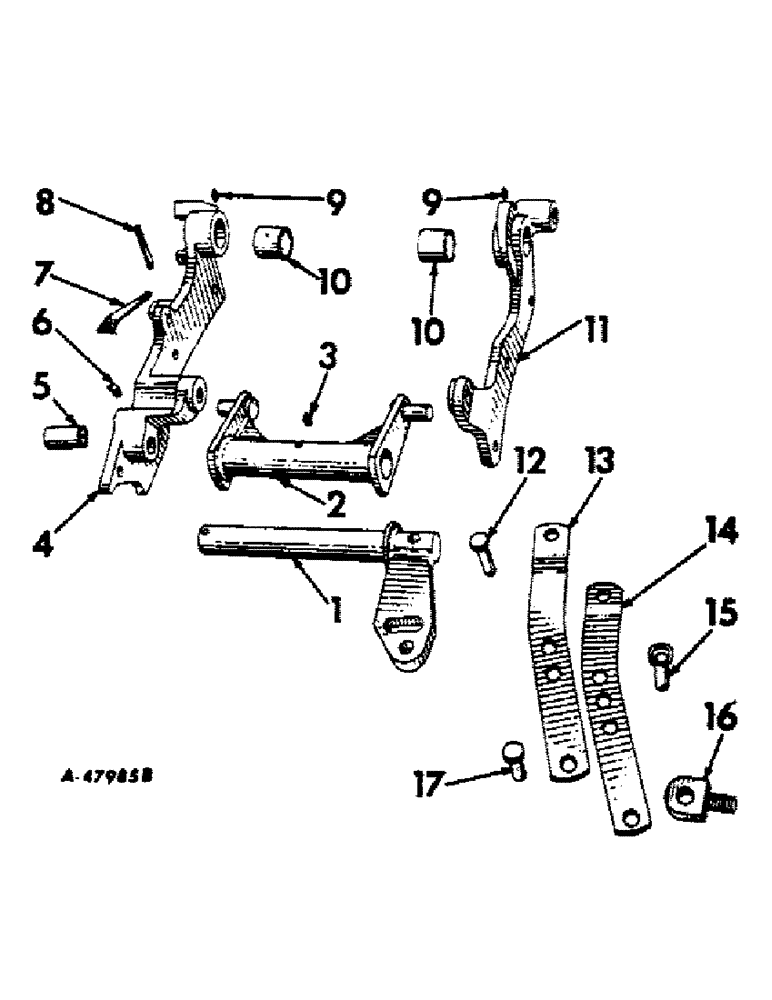

Запчасти Case IH 560 (254) - DRAWBARS AND HITCHES, LATERAL LIMITER, FOR ALL FARMALL 560 SERIES EXCEPT HI-CLEAR MODELS Drawbar & Hitches

1

522820R22

SHAFT ASSEMBLY, lateral swing

1шт.

PIN, 3/8 x 2-1/2" cotter

1шт.

Q3488

WASHER

1-25/32 x 2-1/2" x 11 ga.

1шт.

Q3489

WASHER

1-25/32 x 2-1/2" x 16 ga. (use only if necessary to take up end play)

1шт.

2

522826R91

LIMITER ASSEMBLY, lateral swing

1шт.

Q3481

WASHER

1-1/32 x 1-1/2" x 16 ga. (use only if necessary to take up end play)

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" straight drive type lubrication

1шт.

4

522695R31

PLATE, w/bushing, 522705R1 and 523708R1 assembly, LH side

1шт.

SCREW, 3/4 x 2" hex-hd. cap

3шт.

WASHER, 3/4" lock

2шт.

WASHER, 3/4" external tooth lock (on lower hole, LH side)

1шт.

5

522705R1

BUSHING,28.63mm ID x 31.85mm OD x 53.98mm L

traction control pivot

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 x 67-1/2" elbow lubrication

1шт.

7

522706R1

SPRING, adjusting lever

1шт.

BOLT, 5/16 x 1" hex-hd. mach.

1шт.

NUT, 5/16"

1шт.

WASHER, 11/32 x 3/4" x 11 ga.

1шт.

8

522851R1

STRAP, traction control lever guide

1шт.

SCREW, 1/4 x 3/4" slt-rd-hd. mach.

2шт.

WASHER, 1/4" lock

2шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) 1/8"-27 x .66 lg

2шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

2шт.

10

523708R1

BUSHING,54.41mm ID x 57.56mm OD x 50.8mm L

rockshaft bearing

2шт.

11

522696R21

PLATE, w/bushing, 523708R1 assembly, RH side

1шт.

SCREW, 3/4 x 2" hex-hd. cap

3шт.

WASHER, 3/4" lock

3шт.

12

523171R1

PIN,19.05mm OD x 74.61mm L

lateral swing, Serial Range: strap-shaft

1шт.

PIN, 1/4 x 1-1/4" cotter

1шт.

13

524148R11

STRAP ASSEMBLY, lateral swing upper

1шт.

14

524149R1

STRAP, lateral swing lower

1шт.

15

522841R11

PIN

lateral swing lockout

1шт.

16

522843R2

BOLT

EYEBOLT, lateral swing

1шт.

17

523172R1

PIN,19.05mm OD x 59.53mm L

lateral swing, Serial Range: strap-eyebolt

1шт.

PIN, 1/4 x 1-1/4" self opening cotter

1шт.
