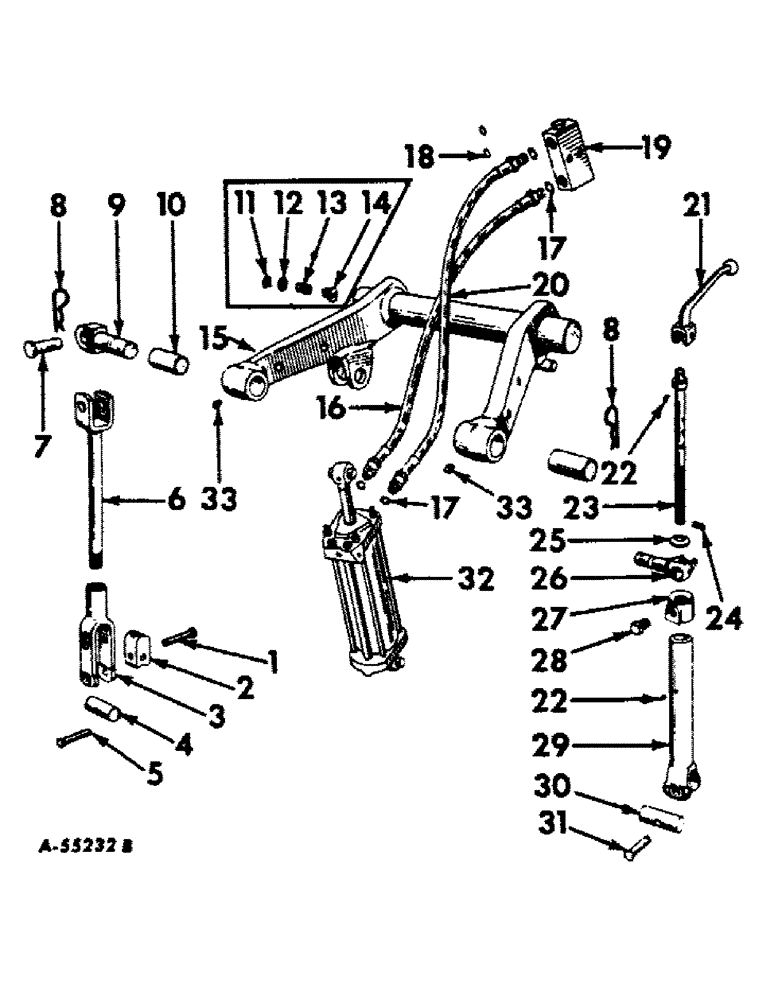

Запчасти Case IH 560 (253) - DRAWBARS AND HITCHES, ROCKSHAFT, LIFT & LEVELING LINK, HYDRAULIC CYLINDER & CONNECTIONS Drawbar & Hitches

1

522855R1

PIN,12.7mm OD x 66.67mm L

vertical float lockout housing

1шт.

520175R1

CLIP

PIN, quick-attachable

1шт.

2

523085R1

BLOCK

lift link float

1шт.

3

522818R1

YOKE

HOUSING, lift link float

1шт.

4

522849R1

PIN

lift link pivot

1шт.

5

522856R1

PIN,12.7mm OD x 63.5mm L

lift link float, Serial Range: housing-pivot

1шт.

PIN, 3/16 x 1" cotter

1шт.

6

522997R11

ROD

LINK, LH lift

1шт.

7

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, lift link clevis

1шт.

8

520175R1

CLIP

PIN, quick-attachable

2шт.

9

523090R1

PIN

EYEBOLT, LH rockshaft arm

1шт.

PIN, 1/4 x 1-3/4" cotter

1шт.

Q3482

WASHER

1-5/32 x 1-3/4" x 11 ga.

1шт.

10

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

rockshaft arm

2шт.

11

526219R1

RING

snap-in rockshaft (see notes A and B)

1шт.

12

526208R1

RETAINER, plunger spring (see notes A and B)

1шт.

13

526209R1

SPRING, plunger-in rockshaft (see notes A and B)

1шт.

14

526206R2

COUPLING, rockshaft (see notes A and B)

1шт.

15

523095R93

1шт.

ROCKSHAFT ASSEMBLY, (used only on tractors with cable type follow-up system) (see note A) composed of, (2) arm 523094R2 (NSS), (2) bushing 523092R1, (1) clevis 522828R1 (NSS), (1) coupling 525206R2, (1) insert 526207R1, (1) lug 523091R1, (1) ring 526208R2, (1) ring 526219R1, (1) rockshaft 526212R1 (NSS), (1) spring 526209R1

1шт.

526207R1

INSERT, rockshaft coupling (see note A)

1шт.

374705R1

SHIM, rockshaft (see note A)

1шт.

15

374916R91

ROCKSHAFT, w/two bushings, 523092R1 assembly (used only on tractors with linkage type follow-up system)

1шт.

374706R1

SHIM, rockshaft (see note A)

1шт.

16

371801R91

HOSE,12.7mm ID x 568.33mm L, SAE 100R1

hydraulic cylinder (1/2 ID x 23-3/8" long)

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic cylinder hose (3/4 x 15/16 x 3/32")

4шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

check valve (5/8 x 13/16 x 3/32")

2шт.

19

370965R92

VALVE ASSEMBLY, check (single acting) (for components see list of parts under details of "check valve") (order package, 374176R91) (see note A) Farmall 560 series, Serial Range: 501-5206

1шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 3-5/8" hex-hd. cap

2шт.

WASHER, 3/8" lock

2шт.

19

373015R91

VALVE ASSEMBLY, check (single acting) (for components see list of parts under details of "check valve") (order package, 374176R91) (see note A) Farmall 560 series, 5207 to 13665 and, Serial Range: 13866-13900

1шт.

19

374092R91

VALVE ASSEMBLY, check (double acting) (for components see list of parts under details of "check valve") Farmall 560 series, 13666 to 13865 and 13901 up

1шт.

SCREW, 3/8 x 2-1/4" hex-hd. cap

2шт.

20

371799R91

HOSE,12.7mm ID x 644.52mm L

hydraulic cylinder (1/2 ID x 25-3/8" long)

1шт.

21

523861R1

GRIP

HANDLE, leveling screw

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

22

102647H

FITTING, 1/4 NF straight lubrication (optional with 110146R91)

2шт.

22

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 NF straight lubrication (optional with 102647H)

2шт.

23

523864R11

ADJUSTMENT SCREW

SCREW ASSEMBLY, leveling

1шт.

24

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, (in leveling screw) 1/4" x 7/8", Slotted

1шт.

25

522850R1

WASHER

WASHER, leveling screw pivot

1шт.

26

523863R1

PIVOT

EYEBOLT, leveling screw pivot

1шт.

Q3482

WASHER

15/32 x 1-3/4" x 11 ga.

1шт.

27

522816R1

COLLAR

vertical float lockout

1шт.

28

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1" cone-pt. sq-hd. set

1шт.

29

522819R1

HOUSING

leveling screw

1шт.

30

522849R1

PIN

leveling screw housing pivot

1шт.

31

522856R1

PIN,12.7mm OD x 63.5mm L

leveling screw, Serial Range: housing-pivot

1шт.

PIN, 3/16 x 1" cotter

1шт.

32

371208R92

CYLINDER

ASSEMBLY, hydraulic (3-1/2 x 8") (for components see list of parts under details of "hydraulic cylinder") (units A, B and C)

1шт.

32

374186R91

CYLINDER ASSEMBLY, hydraulic (3-1/2 x 8") (for components see list of parts under details of "hydraulic cylinder") (unit D)

1шт.

33

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

rear junction block plug (illustrated with "hydra-touch system")

2шт.

9410360

PLUG

rear junction block (illustrated with "hydra-touch system")

2шт.

374176R93

1шт.

PACKAGE, check valve service (will work for 370965R92 and 373015R91) Farmall 560 series, 501 to 13665 and 13866 to 13900 consists of, (1) clamp 370136R1, (1) o-ring 364885R1, (1) plug 9410360, (2) screw 179795, (2) screw 179848, (3) spacer 66860D, (1) spacer 374069R1, (1) tray 374070R1, (1) tube assembly 374053R93, (1) valve 374092R91

1шт.
