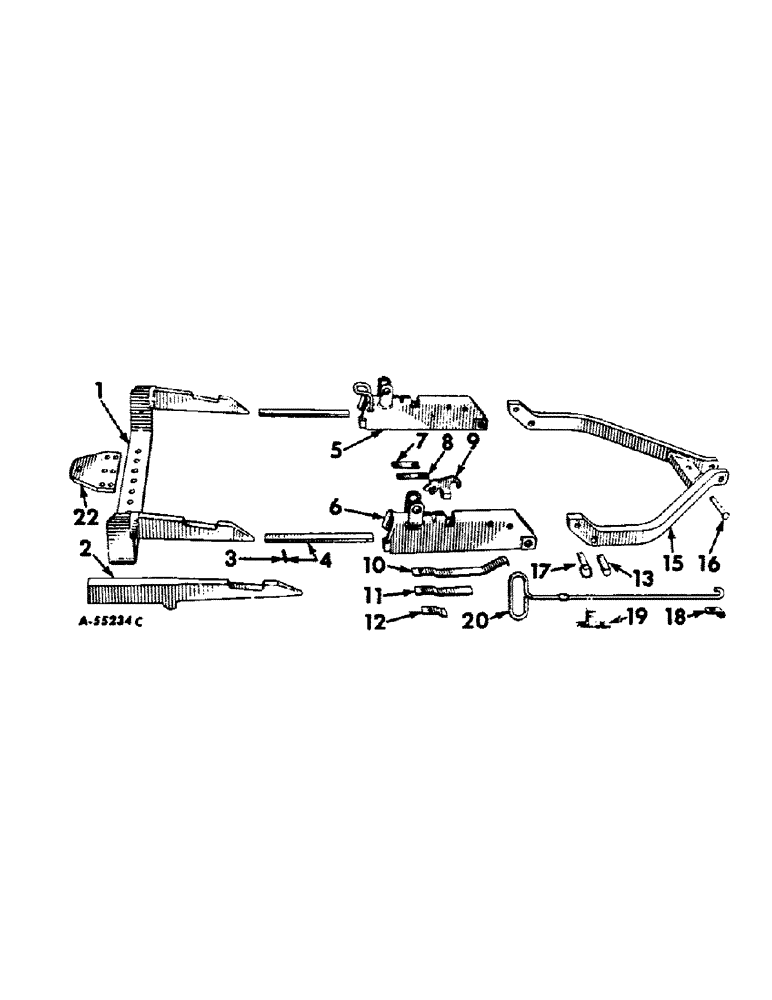

Запчасти Case IH 560 (252) - DRAWBARS & HITCHES, DRAWBAR, SOCKET BEAMS & BAIL, FOR ALL FARMALL 560 SERIES EXCEPT HI-CLEAR MODELS Drawbar & Hitches

1

523089R91

DRAWBAR

1шт.

2

521021R11

BEAM, coupling (use to adapt allied implements for use, w/fast- hitch by welding this to, or by drilling holes and bolting this to the implement) (see note A)

1шт.

3

657196R1

PIN

1/4 x 2" roll (used with ref. 4) (see note A)

2шт.

4

523387R11

PLATE ASSEMBLY, filler (see note A)

2шт.

Q1404

AXLE PIN

PIN, 1/2 x 2-1/4" dld.

2шт.

PIN, 1/8 x 3/4" self-opening cotter

2шт.

5

522813R91

SOCKET ASSEMBLY, LH beam

1шт.

6

522814R91

SOCKET ASSEMBLY, RH beam

1шт.

7

522840R1

SPRING

LATCH, auxiliary spring

2шт.

8

522839R1

VALVE SPRING

SPRING, latch

2шт.

SCREW, 3/8 x 1/2" hex-hd. cap

2шт.

9

523110R2

LATCH

beam coupling

2шт.

10

522836R1

SPRING

leaf-long

2шт.

11

522835R1

SPRING

leaf-medium

2шт.

12

522834R1

VALVE SPRING

SPRING, leaf-short

2шт.

SCREW, 1/2 x 1-3/4" hex-hd. cap

2шт.

13

525469R11

PIN,25.4mm OD x 77.79mm L

ASSEMBLY, hitch bail

2шт.

PIN, 5/16 x 1-1/2" cotter

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

15

523870R91

BAIL ASSEMBLY

1шт.

16

523866R1

PIN

hitch point pivot

1шт.

PIN, 1/2 x 1-1/4" cotter

1шт.

17

522841R11

PIN

ASSEMBLY, pivot lockout

2шт.

18

523440R1

SUPPORT, latch hook-front (tractors with deluxe vertical acting seat) (see note A)

1шт.

WASHER, 13/32 x 13/16" x 16 ga.

1шт.

19

371557R91

BRACKET ASSEMBLY, latch hook spring clip

1шт.

19

373192R11

BRACKET ASSEMBLY, latch hook spring clip (tractors with deluxe vertical acting seat)

1шт.

20

360378R2

HOOK, latch

1шт.

22

368394R1

PLATE

drawbar extension (provides a standardized power take-off hitch for tractors equipped with fast-hitch but not equipped with swinging drawbar) (see note A)

1шт.

425-1012

NUT,3/4"-10, G5

3/4"

2шт.

SCREW. 3/4 x 2-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.
