Запчасти Case IH 560 (251) - DRAWBARS AND HITCHES, QUICK-ATTACHABLE HIGH-HITCH HEAVY-DUTY DRAWBAR Drawbar & Hitches

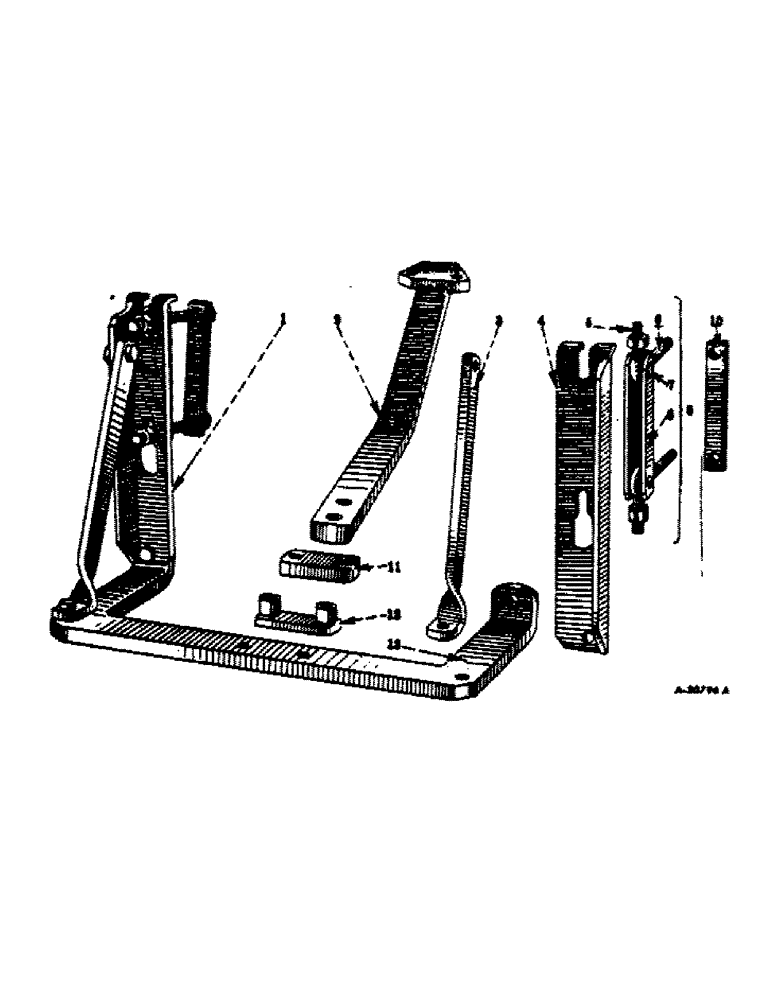

Схема запчастей Case IH 560 - (251) - DRAWBARS AND HITCHES, QUICK-ATTACHABLE HIGH-HITCH HEAVY-DUTY DRAWBAR Drawbar & Hitches
12
7
4
6
9
5
3
11
13
1
10
8
2

Артикул

Название

Примечание

Количество

359256R91

PARTS ACCESSORY, quick attachabble high-hitch heavy-duty drawbar

1шт.

1

353276R1

ANGLE, LH drawbar

1шт.

2

359254R11

TONGUE ASSEMBLY, drawbar

1шт.

SCREW, 7/8 x 2-1/4" hex-hd. cap

2шт.

SCREW, 7/8 x 3-1/2" hex-hd. cap

1шт.

WASHER, 7/8" lock

3шт.

3

353275R1

BRACE, drawbar

2шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

2шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

2шт.

WASHER, 3/4" lock

4шт.

4

353277R1

ANGLE, RH drawbar

1шт.

5

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT ASSEMBLY, drawbar attaching channel

4шт.

357790R1

NUT

drawbar eyebolt (fine thread)

4шт.

Q1552

WASHER

25/32 x 1-1/4" x 10 ga.

4шт.

6

43685D

BOLT

drawbar attaching channel

4шт.

NUT, 3/4 NF

4шт.

WASHER, 3/4" lock

4шт.

7

43690D

PIN

drawbar attaching channel

4шт.

8

PO26267

CHANNEL, drawbar attaching

2шт.

9

353273R92

CHANNEL ASSEMBLY, drawbar attaching composed of, (2) bolt 43685D, (1) channel PO26267, (2) eyebolt 353272R21, (2) nut 218197, (2) pin 43690D, (2) washer 103326

1шт.

10

PO26224

CLAMP, drawbar attaching

2шт.

11

353274R1

STRAP, drawbar tongue

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 4-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

12

353280R11

SHIM ASSEMBLY, drawbar tongue

1шт.

13

353278R11

DRAWBAR ASSEMBLY

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

Выбрано товаров: 31
