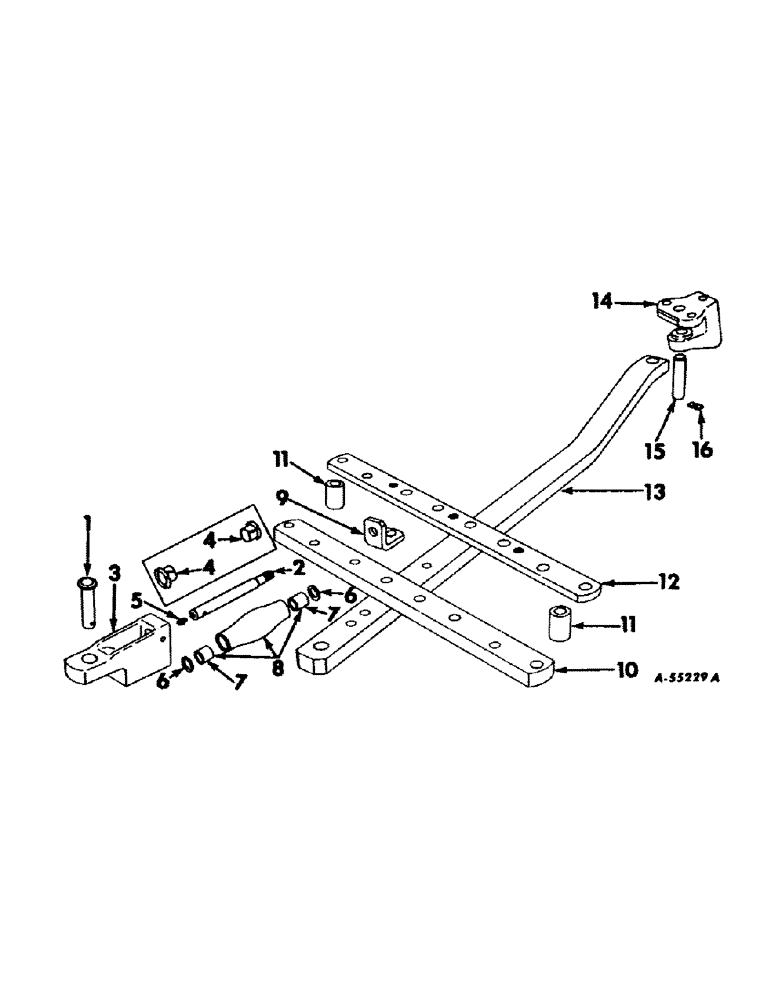

Запчасти Case IH 560 (248) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, INTERNATIONAL 560 SERIES Drawbar & Hitches

ATTACHMENT, swinging drawbar (360395R95)

1шт.

365757R93

ROLLER ASSEMBLY, drawbar composed of, (1) fitting 109462, (1) jaw 365491R1, (1) nut 220081, (1) pin 657197R1, (1) roller 356562R31, (1) shaft 365489R1, (1) support 356565R2, (1) washer 103326, (2) washer 358002R1

1шт.

1

58658D

PIN, swinging drawbar jaw

1шт.

PIN, 1/4 x 1-1/2" cotter

1шт.

2

365489R1

SHAFT, swinging drawbar roller

1шт.

NUT, 3/4"

1шт.

657197R1

LOCK PIN,1/4" x 2 1/4", Slotted

Pin, 1/4" x 2 1/4", Slotted

1шт.

WASHER, 3/4" lock

1шт.

3

365491R1

JAW, swinging drawbar

1шт.

SCREW, 5/8 x 2-1/2" hex-hd cap

2шт.

WASHER, 5/8" lock

2шт.

4

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, swinging drawbar roller (see note B)

2шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 x 90 deg. lubrication (optional with 271285) (see note A)

1шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 x 90 deg. lubrication (optional with 109462) (see note A)

1шт.

6

358002R1

WASHER

drawbar roller shaft (see note A)

1шт.

7

356564R1

BUSHING

drawbar roller (see note A)

1шт.

8

356562R31

ROLLER

ASSEMBLY, drawbar

1шт.

9

356565R2

SUPPORT

swinging drawbar roller shaft-front

1шт.

13371R1

BOLT, 5/8 x 2-3/8" sq-hd mach

1шт.

NUT, 5/8"

1шт.

WASHER, 5/8" lock

1шт.

10

365490R1

GUIDE, swinging drawbar, lower

1шт.

11

368514R1

SPACER

swinging drawbar guide

2шт.

12

57657D

GUIDE, swinging drawbar

1шт.

NUT, 3/4"

2шт.

NUT, 3/4" sq (used with drawbar roller stop screw)

2шт.

SCREW, 3/4 x 1-1/2" hex-hd cap

3шт.

SCREW, 3/4 x 4-3/4" hex-hd cap

2шт.

SCREW, 3/4 x 5-1/4" hex-hd cap (used as drawbar roller stop)

2шт.

WASHER, 3/4" lock (2 used with drawbar roller stop screw)

5шт.

13

365492R2

DRAWBAR, swinging

1шт.

14

8874DA

SUPPORT, swinging drawbar pivot

1шт.

361133R1

BOLT,Hex, 7/8" - 9 x 2 1/4"

SCREW, swinging drawbar pivot support

3шт.

WASHER, 7/8" lock

3шт.

15

58657DA

PIN

swinging drawbar pivot

1шт.

16

57655D

PLATE

swinging drawbar pivot pin lock

1шт.

SCREW, 3/8 x 3/4" hex-hd cap

1шт.

WASHER, 3/8" lock

1шт.
